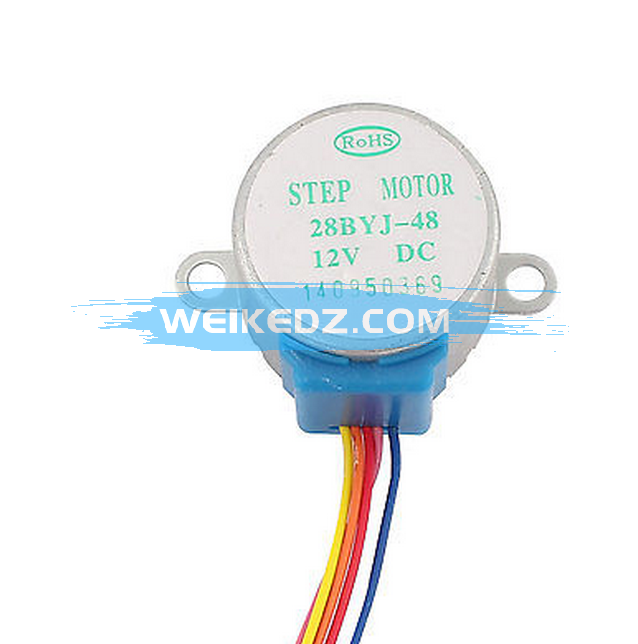

12V 5 Line 4 Phase Stepper Motor 28BYJ-48 w Drive Test Modul

$

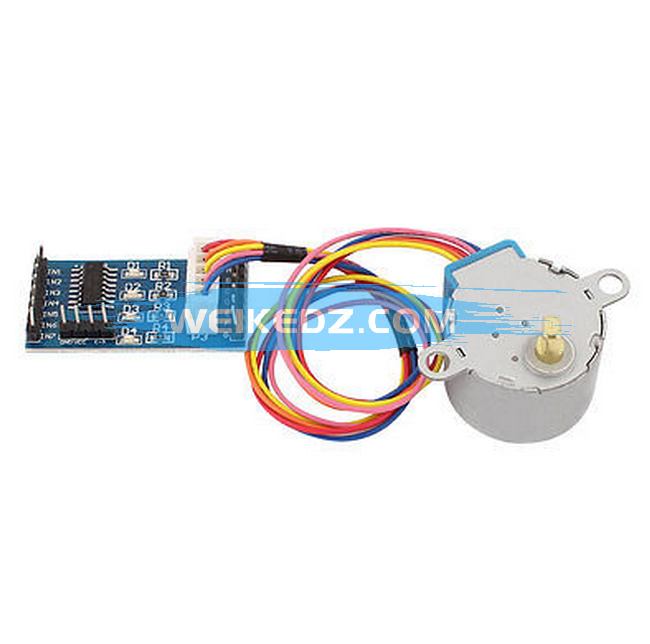

12V 5 Line 4 Phase Stepper Motor 28BYJ-48 w Drive Test Module ULN2003

  • Voltage: 12V
  • Diameter: 28mm
  • Step angle: 5.625 x 1 / 64
  • Reduction ratio: 1 / 64
  • 5 Line 4 phase can be driven by ordinary uln2003 chip can also be connected in phase 2
  • development board used for.
  • supporting the use of a direct plug and easy to use stepper motor used in the development board.

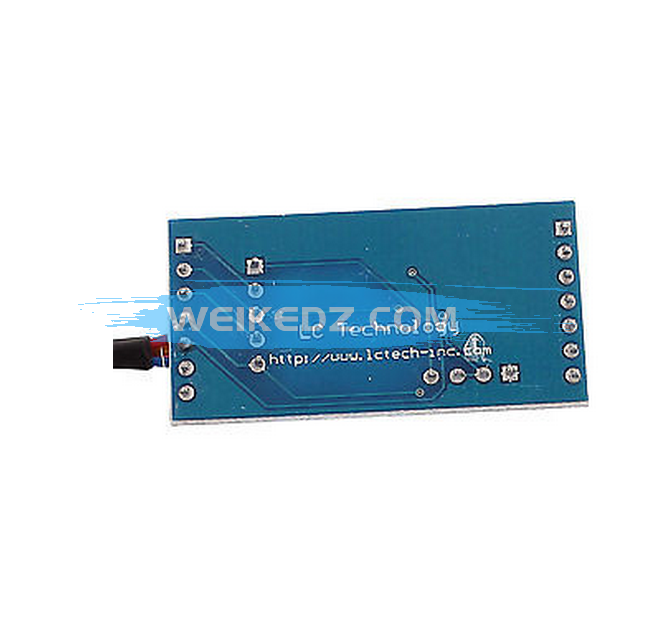

  • Stepper motor driver board with ULN2003
  • D1, D2, D3, D4 four-phase LED indicates the status of the stepper motor work
  • Stepper motor with a standard interface, when used directly pluggable

Motor Voltage DC 12V
Net Weight 42g
Brand Assisi
Country of Manufacture CHINA
Package Content 1 x Drive Module Board, 1 x Stepper Motor
Motor Shaft Diameter 3mm
Material Electric Parts
Motor Shaft Length 8mm/0.31"
PCB Board Size 40.5 x 21 x 11mm/1.6" x 0.83" x 0.43"(L*W*H)
Wire Length 230mm/9"
Motor Body Size 28 x 20mm / 1.1" x 0.8"(D*H)
