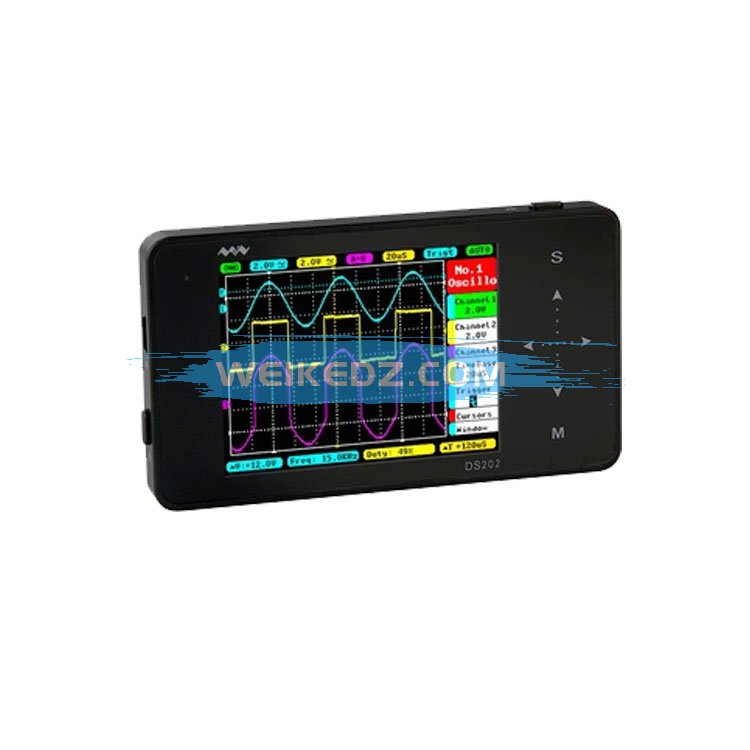

MiniDSO DSO202 Digital Multimeter Oscilloscope Touch Screen

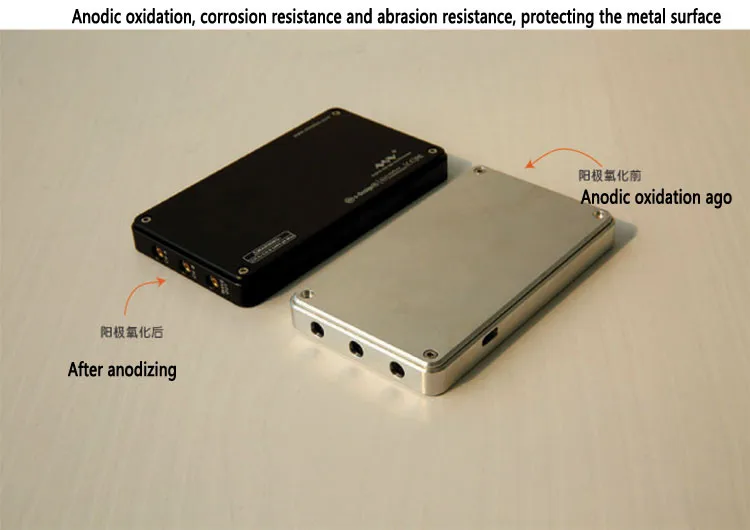

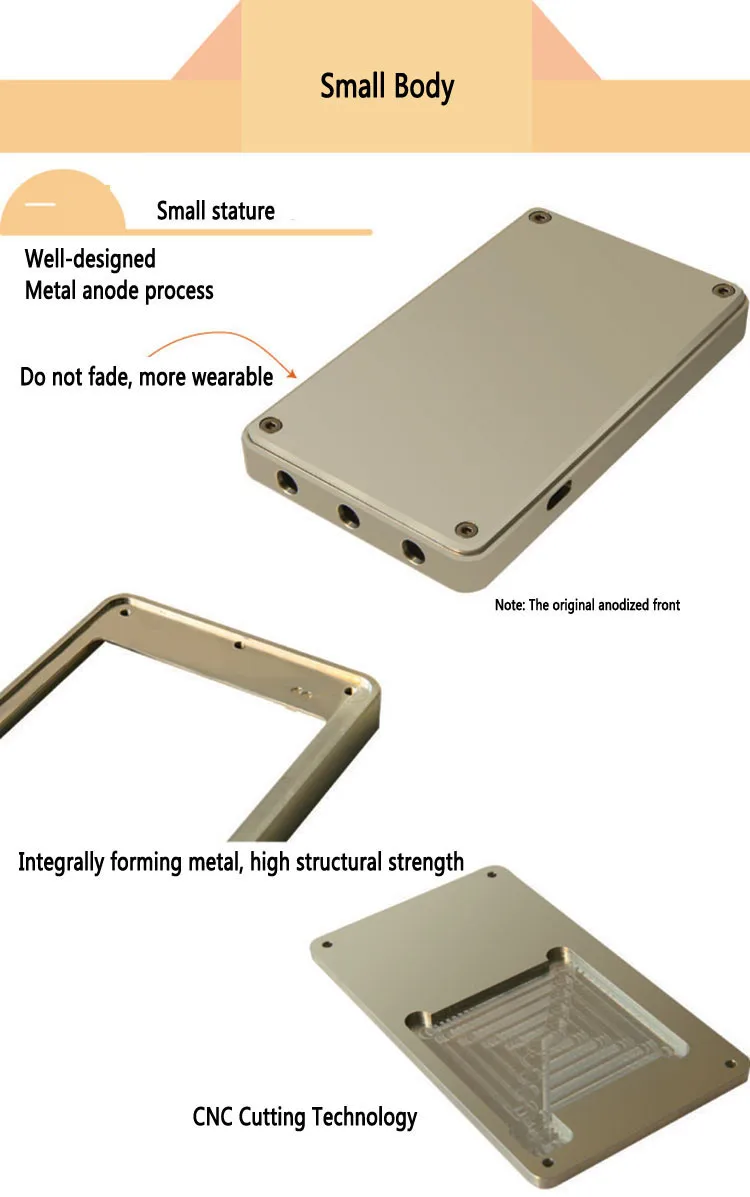

DS202 is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is has a dual trace three lines, new kind of system interface, capacitive convenient operation. You can easily operate it with the gestures of one-click, double-click, press and slide. The Aluminum shell is very fashionable. It is equipped with 320*240 color display, 8M Memory Card (U Disk), and chargeable Lithium batteries. The thickness is 11mm only! The volume is small enough to take it anywhere. It can meet the demands in many fields, such as, school experiment, electronic repairing and electric engineering.

Specification:

Analog bandwidth: 1MHz

Max sample rate: 10MHz

Sample memory depth: 8K

Analog Input impedance: 1MΩ

Max input voltage:±40v (×1 probe)

Coupling:AC/DC

Analog input sensitivity: 10mV/Div~10V/Div (1-2-5 Step)

Vertical position: Adjustable with indicator

Horizontal sensitivity: 1uS/Div~10S/Div (1-2-5 Step)

Horizontal position: adjustable with indicator

Independent Channel Display:-A,-B,A+B,A-B,RecA,RecB

Trig modes: Auto, Norma, Single, None and Scan

Rising/falling edge trigger ,Maximize/Minimize level trigger

Automatic measurement: frequency, cycle, duty, peak/effective/Maximum/Min/average NO.of Voltage

Test signal: Built-in 10Hz~1MHz or 10~20kHz Analog sine wave/ Triangle wave/ Sawtooth Wave

Waveform storage: 8MB Memory

Built-in: 600mAh Chargeable Lithium battery / USB

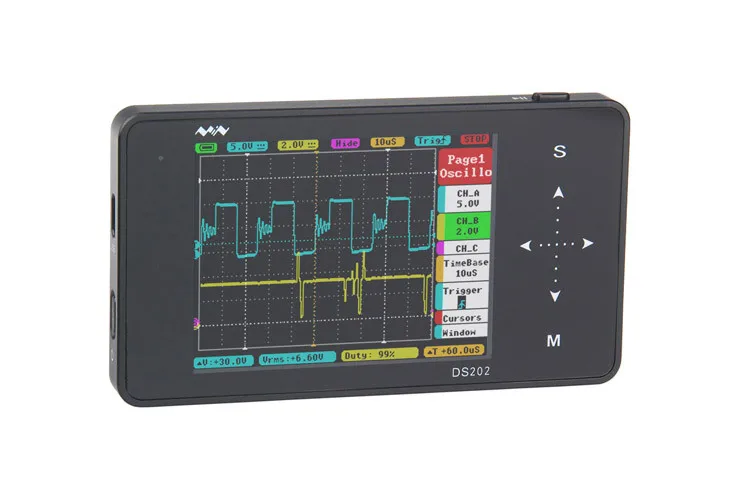

Color TFT LCD display Resolution: 320×240

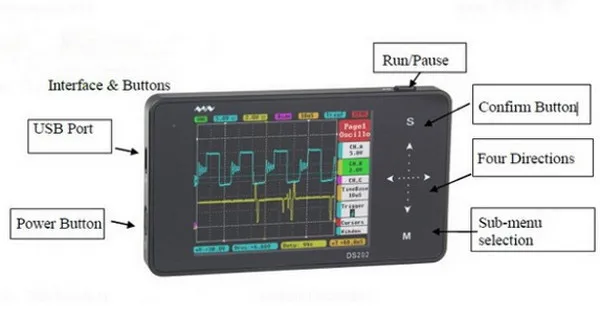

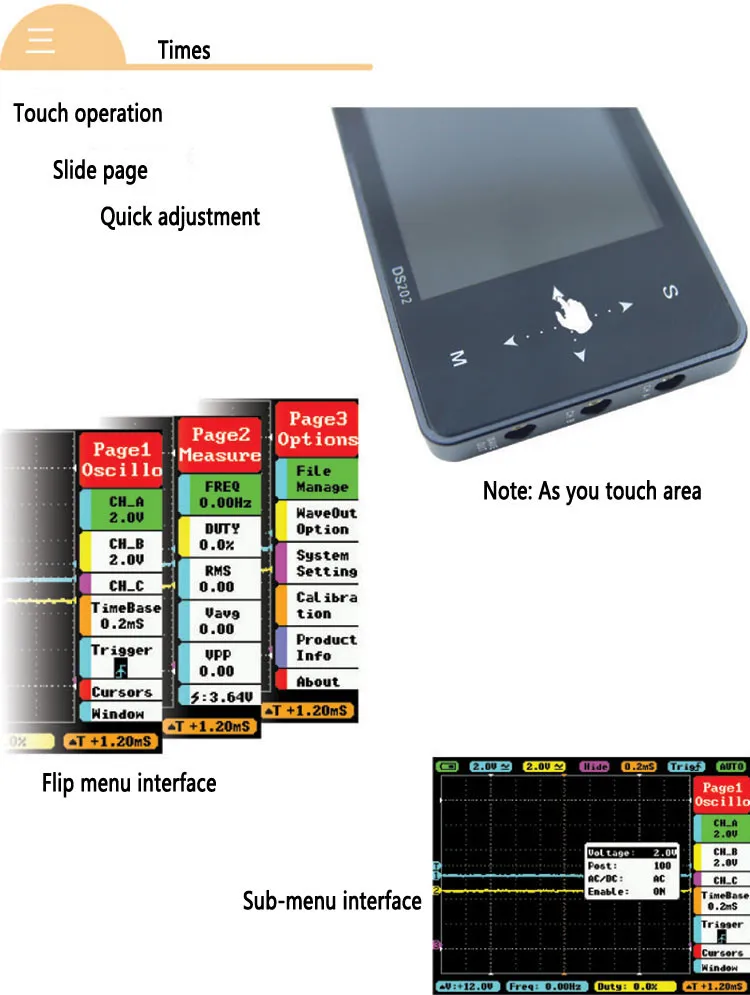

Input: Capacitive touch and slide gesture

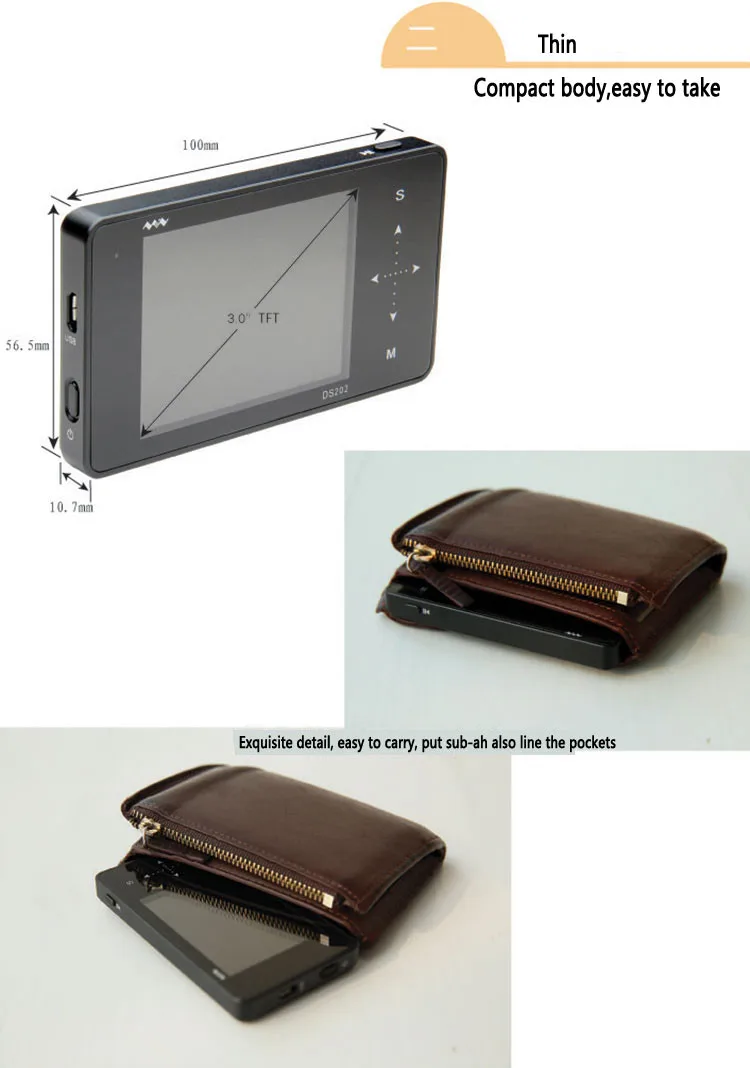

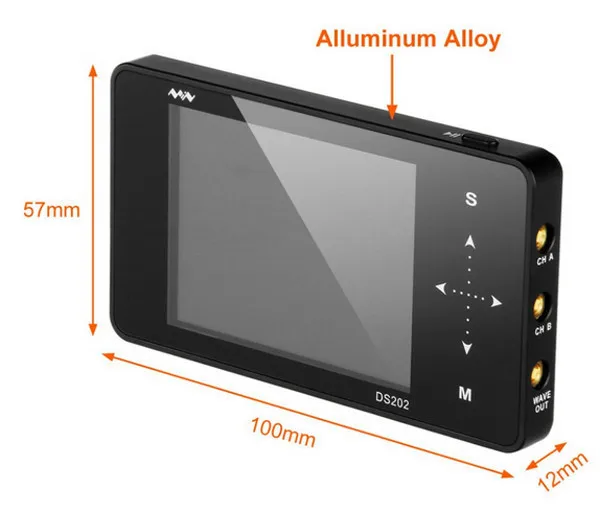

Dimension: 100mm X 56mm X 10mm

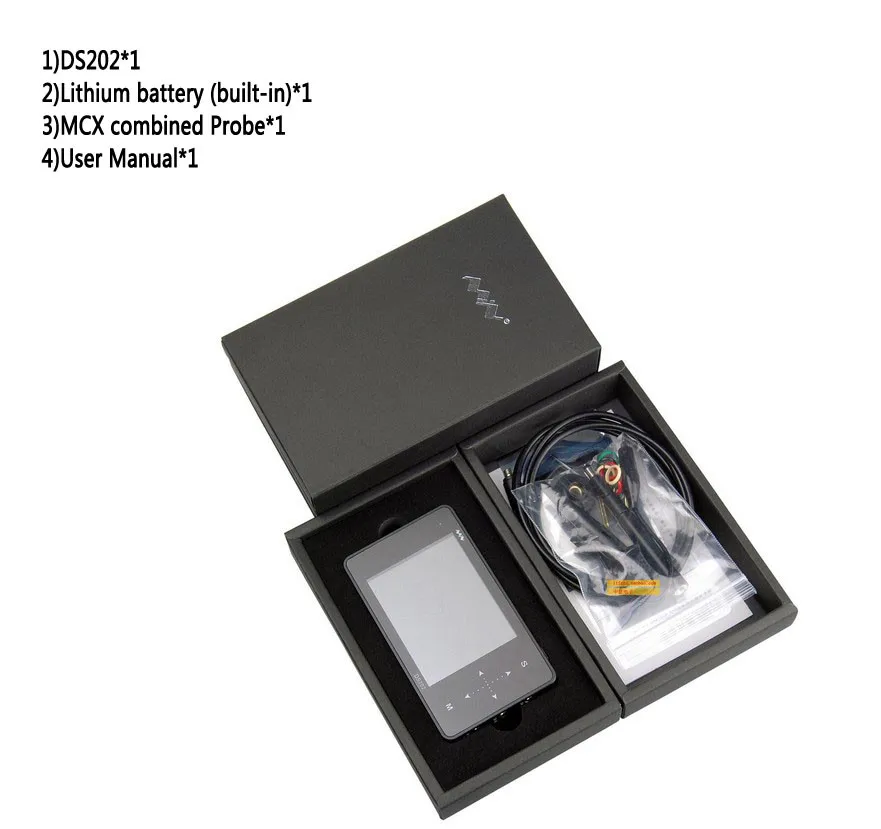

Package list:

1x Ocilliscope;

1x MCX combined Probe;

1x User Manual
