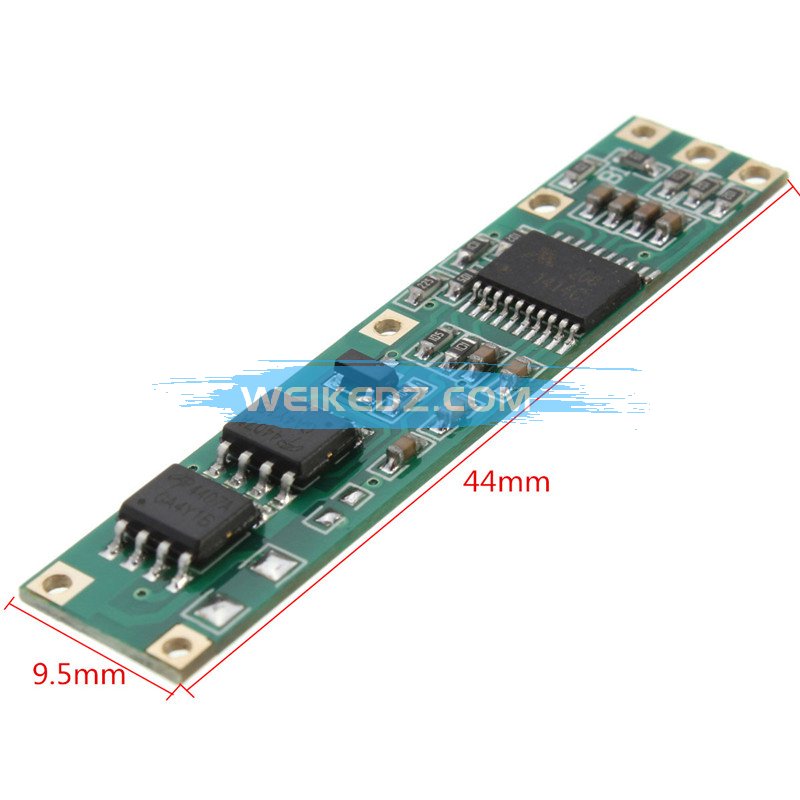

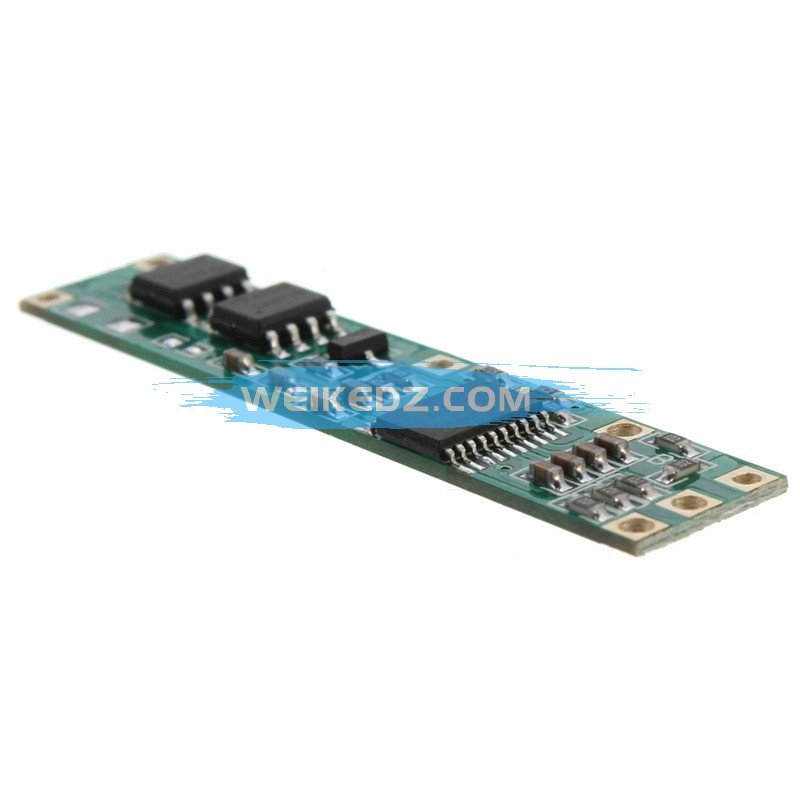

Battery BMS Protection PCB Board for 3-4 packs 18650 Li-ion lithium Battery Cell Electric Board
Descriptions: 3 series lithium battery protection board high current 11.1V12.6V14.8V16.8V 4A operating current
Functions: over charge protection, over-discharge protection, short circuit protection, overcurrent protection. Single discharge Minimum protection voltage: 2.30V Single discharge Maximum protection voltage: 4.35V Protection board continuous operating current: 2.5A Protection board overcurrent protection current: 9.0A Protection board Short-circuit current: 10.0A

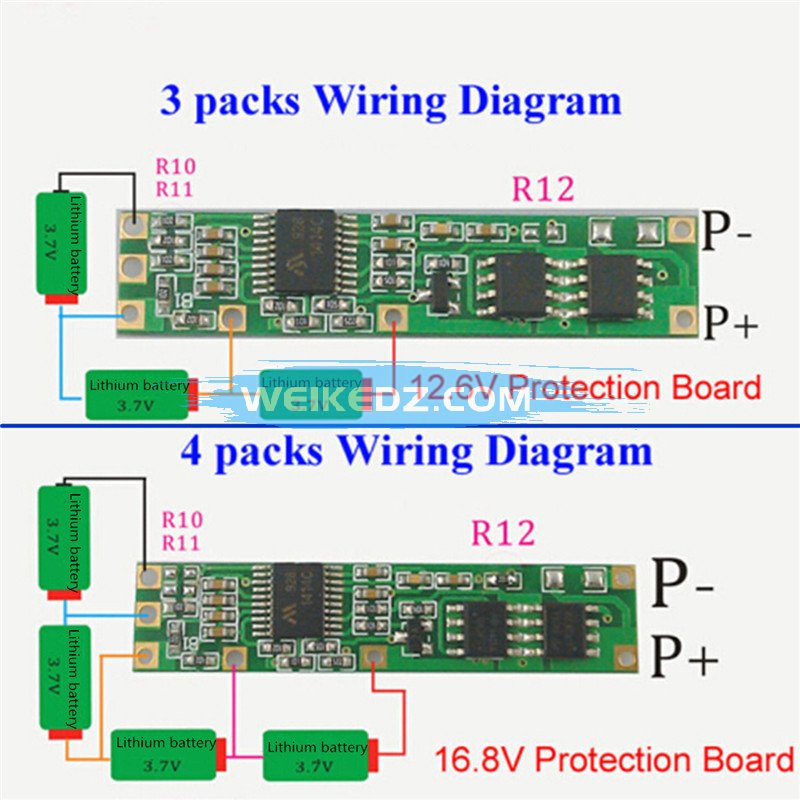

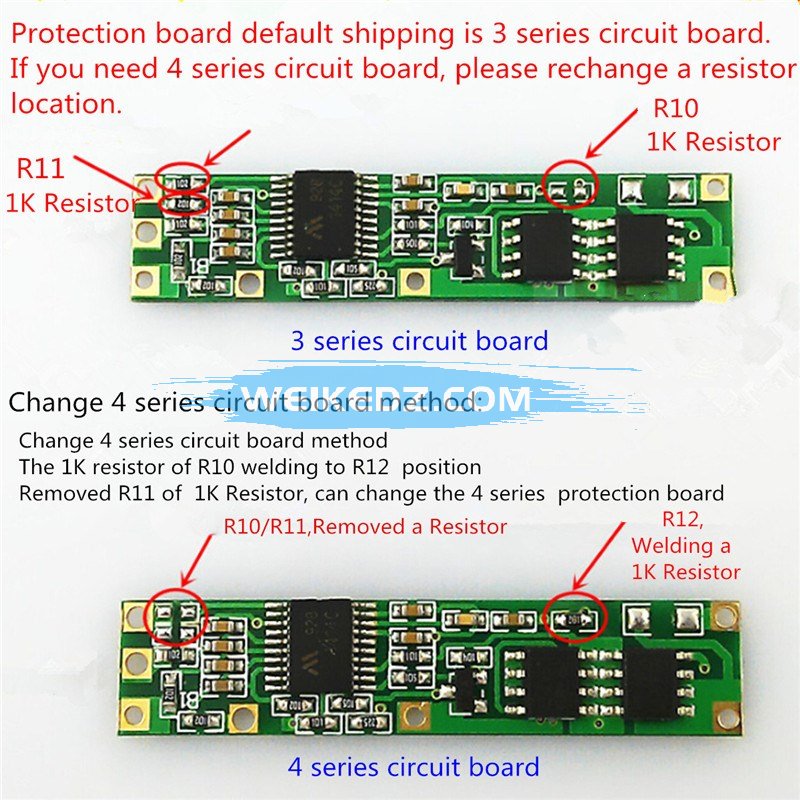

3-4 lithium battery protection board, using 1414 management integrated circuits, just need to change the wiring then can be used on 4-connected lithium battery.
Battery charger selection tips: 3 series Optional charger is 12.6V / 2A (2A current within available) 4 string Optional charger is 16.8V / 2A (2A current within available)
