AC 30A SCT-013-030 Non-invasive Split Core Current Transform

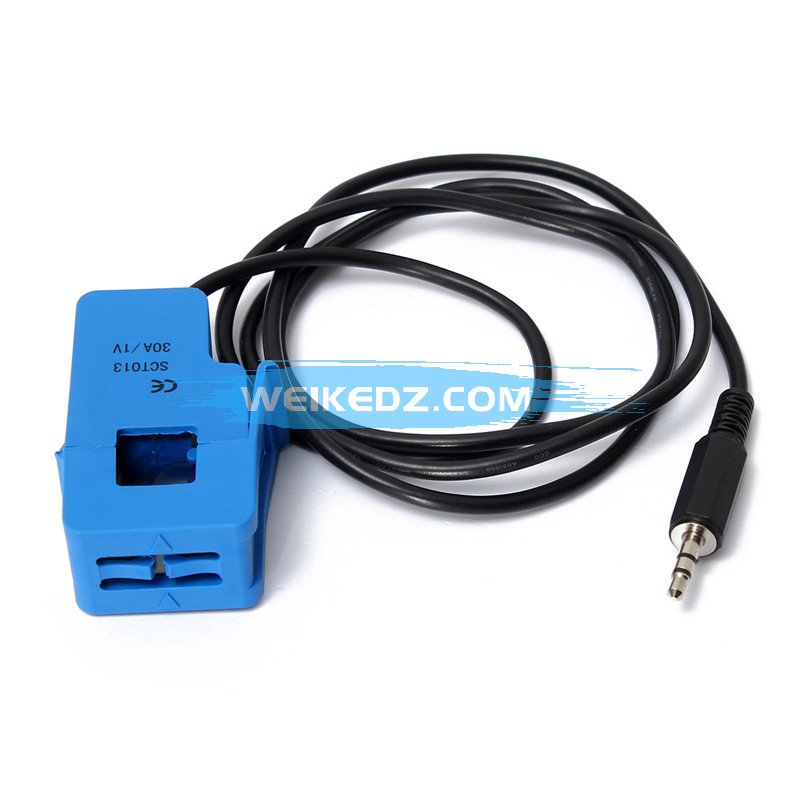

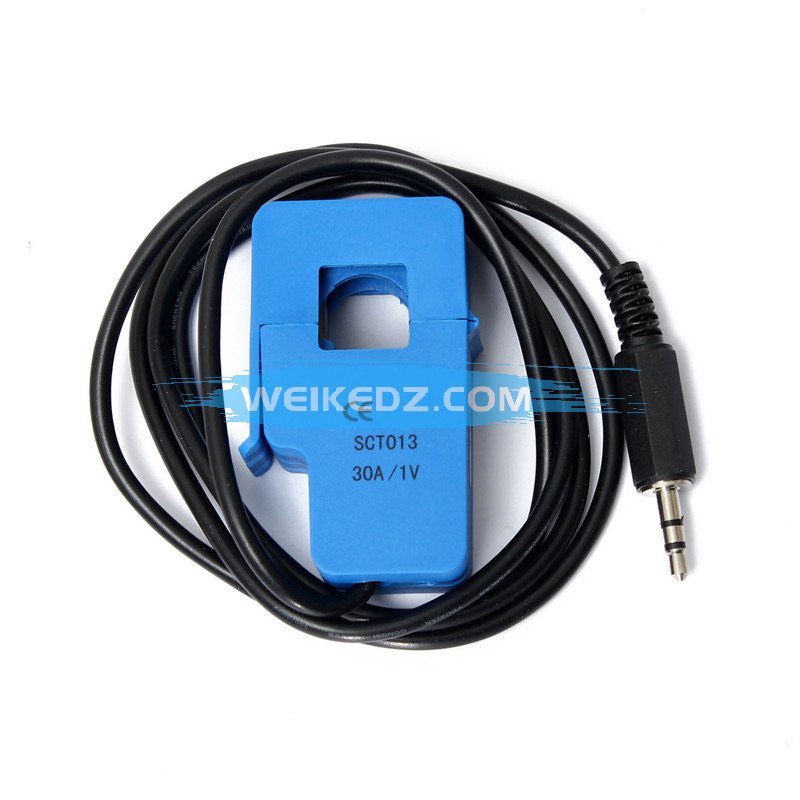

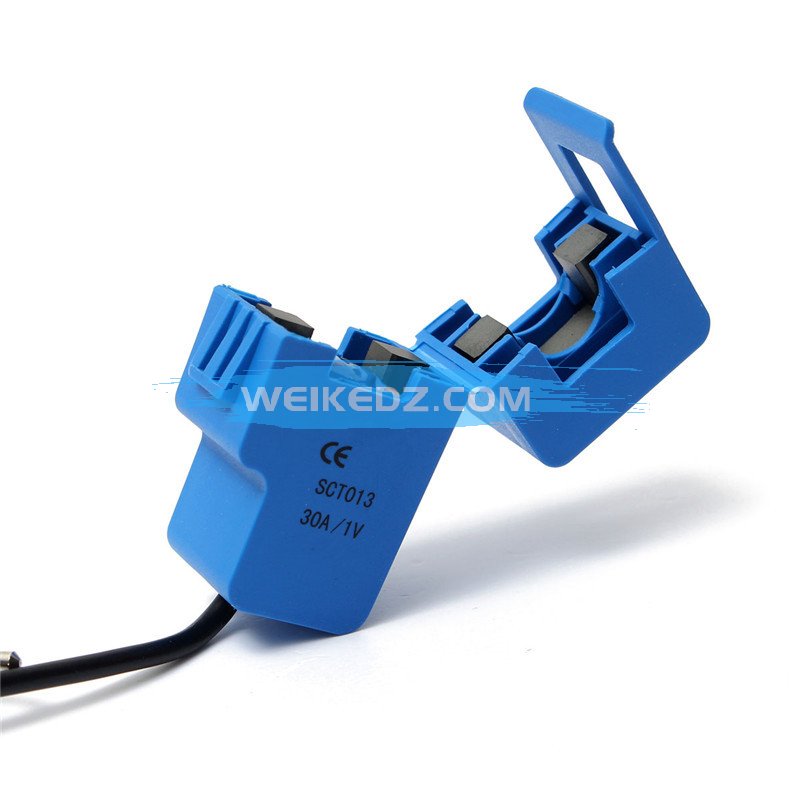

AC 30A SCT-013-030 Non-invasive Split Core Current Transformer

Description :
Non-invasive current transformer

Non-linearity ±3%(10%-120% rated input current)
Suitable for  lighting equipment,AC motors,air compressors,monitoring ,current measurement,and protection
Two form of output current, voltage (voltage output built-in the sampling resistor)

Specification :
Model : SCT-013-030
Reference project : OpenEnergyMonitor
Core Material : Ferrite
Dielectric  Strength : 1000V AC/1min
Input Current : 0A-30A
Anti-flaming rate : UL94-V0
Mechanical strength : opening and closing times, no less than 1000 times (20 ℃)
Output Plug : 3.5mm
Opening Size : 13 x 13mm
Working Temperature : -25-70°C
Cable Length : 150cm
