Specifications:

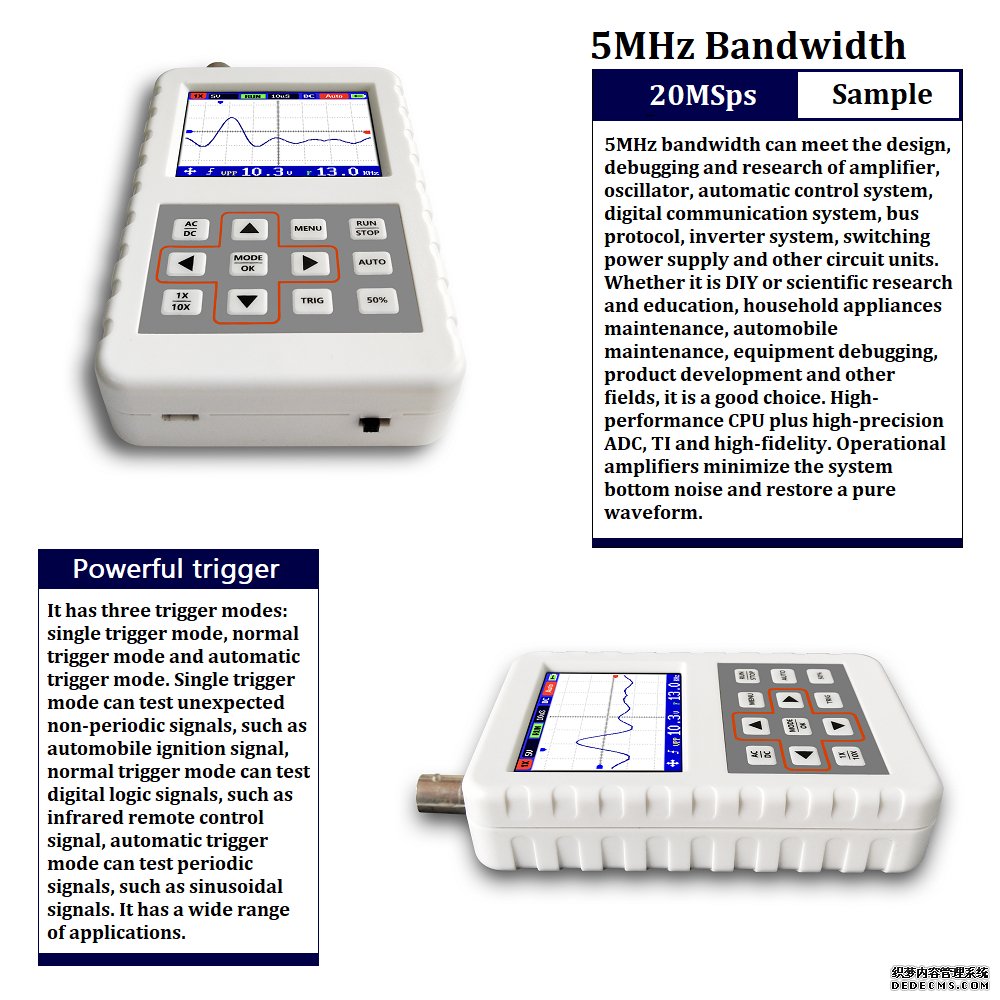

1:Analog band width: 5MHz
2:Maximum real time sampling rate: 20MS/s
3:Vertical sensitivity: 50 mV/div ~ 200 V/div
4:Horizontal time base range: 50S/div ~ 250nS/div
5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6:Storage depth: 40KB
7:Input resistance: 1M
8:ADC precision: 8bits
9:Coupling mode: AC/DC
10:Trigger mode: Single, Normal, Automatic
11:Trigger edge: Ascending/descending edge
12:External trigger voltage 0 – 40 V
13:Display: 2.4 inch @ 320 * 240
14:Power supply: 1200 mAh lithium battery
15:Size: 107 x 70 x 24mm
16:Weight: 150g

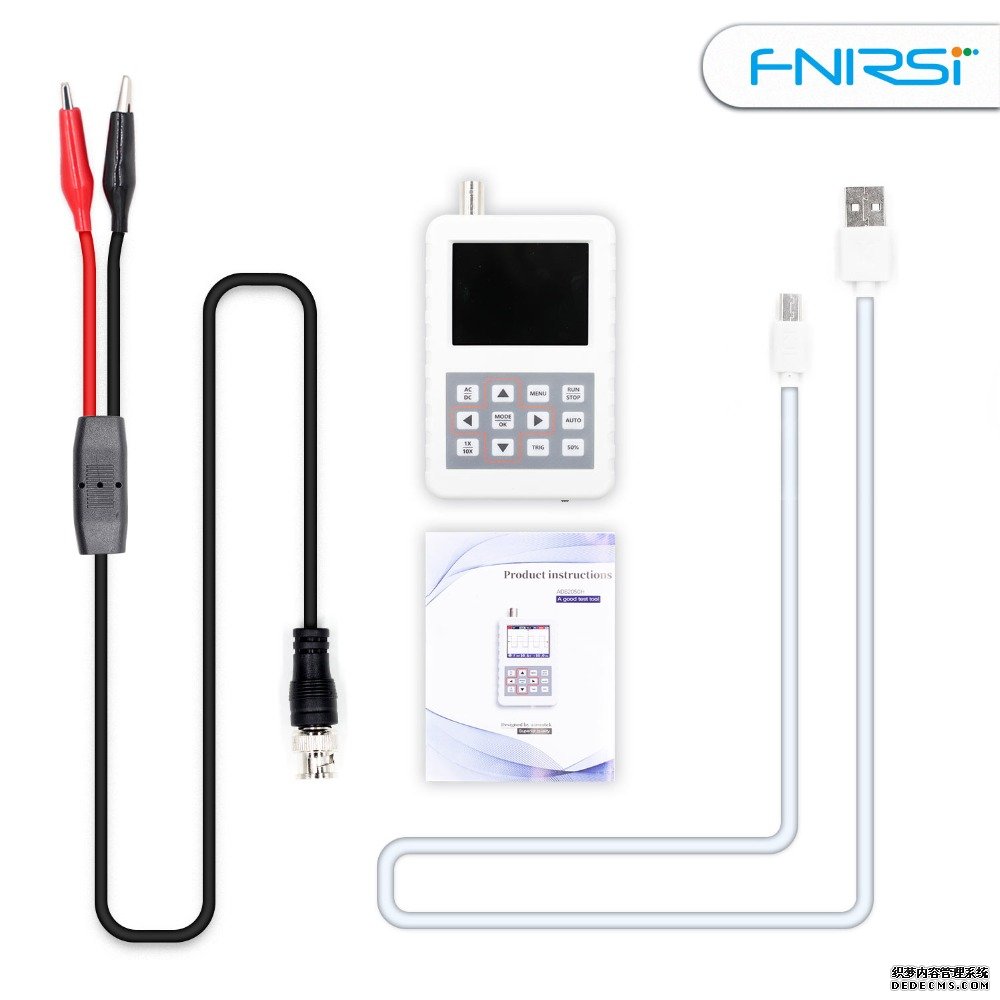

Package includes:
1 x DSO FNIRSI PRO oscilloscope host
1 x Crocodile clip probe
1 x Micro USB data line
1 x User manual (English)
