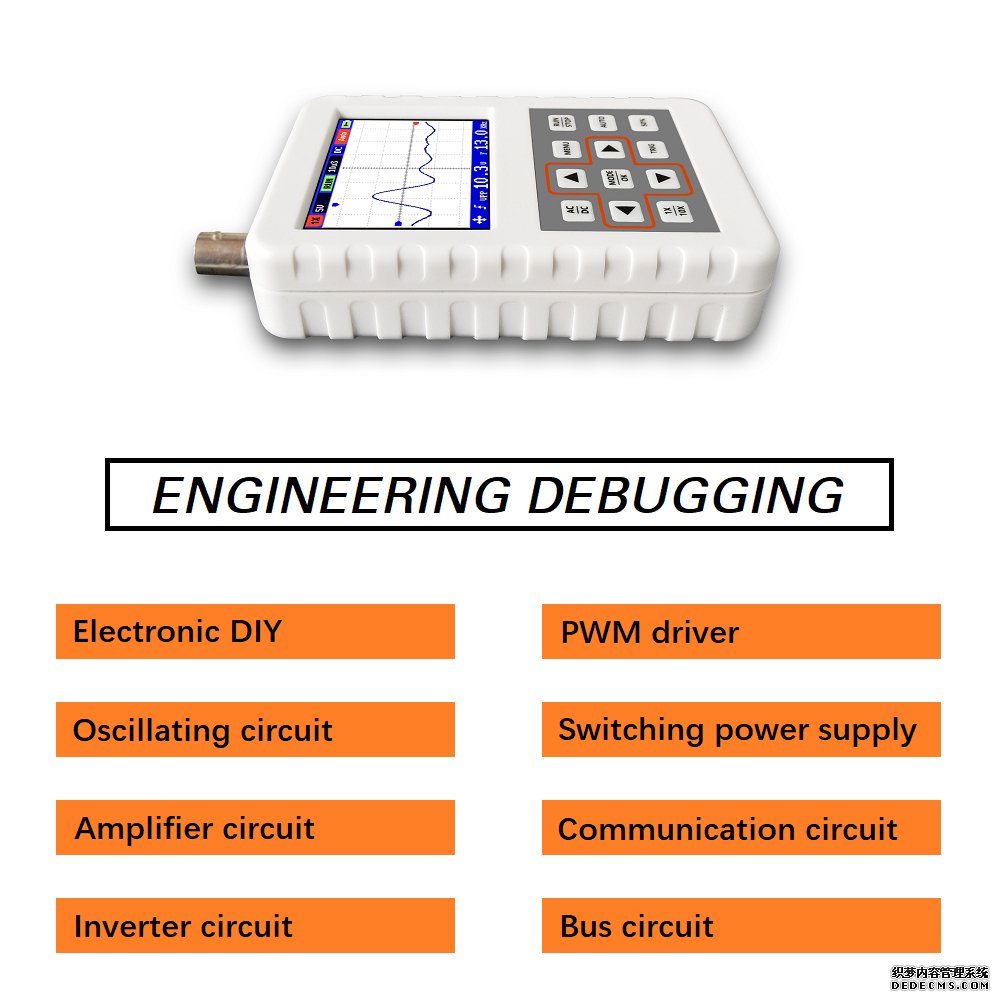

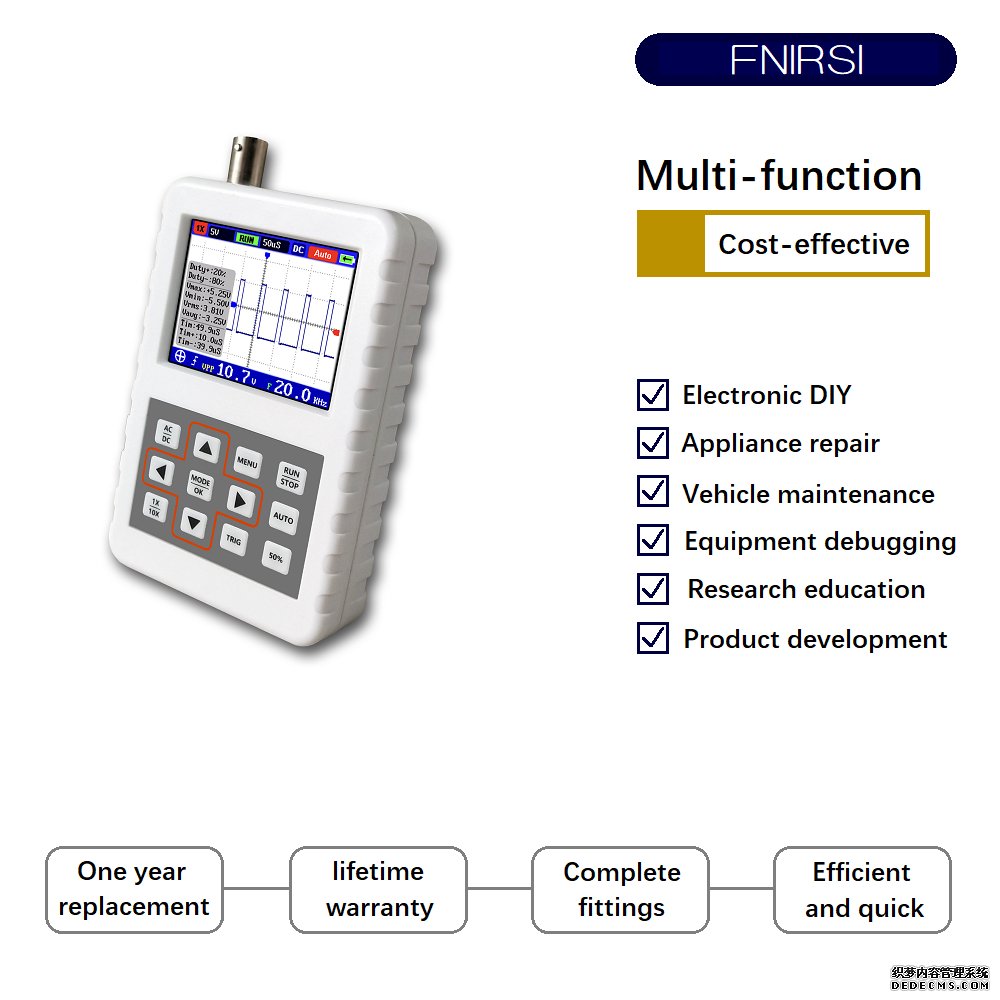

FNIRSI-2031H Handheld mini portable digital oscilloscope 30M

Key features:
1:Memory compression technology, waveform refresh screen does not flicker
2:Afterglow display technology
3:2.4 inch color display screen
4:30MHz analog bandwidth @ 200MS/s sampling rate
5:Fast waveform storage
6:Built-in 16M storage space, the maximum storage of 500 waveform pictures
7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 40 ~ 800V
9:Up to 11 parameters measurement:VPP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen
11:Equipped with high efficiency one button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 1200mAh rechargeable lithium battery can be continuously charged for 3 hours at one time
14:Day mode and night mode
15:Ultra small volume, easy to carry
1:Analog band width: 30MHz
2:Maximum real time sampling rate: 200MS/s
3:Vertical sensitivity: 50 mV/div ~ 200 V/div
4:Horizontal time base range: 50S/div ~ 250nS/div
5:Maximum input voltage: 40 V (1X probe), 800 V (10X probe)
6:Storage depth: 40KB
7:Input resistance: 1M
8:ADC precision: 8bits
9:Coupling mode: AC/DC
10:Trigger mode: Single, Normal, Automatic
11:Trigger edge: Ascending/descending edge
12:External trigger voltage 0 – 40 V
13:Display: 2.4 inch @ 320 * 240
14:Power supply: 1200 mAh lithium battery
15:Size: 107 x 70 x 24mm
16:Weight: 150g

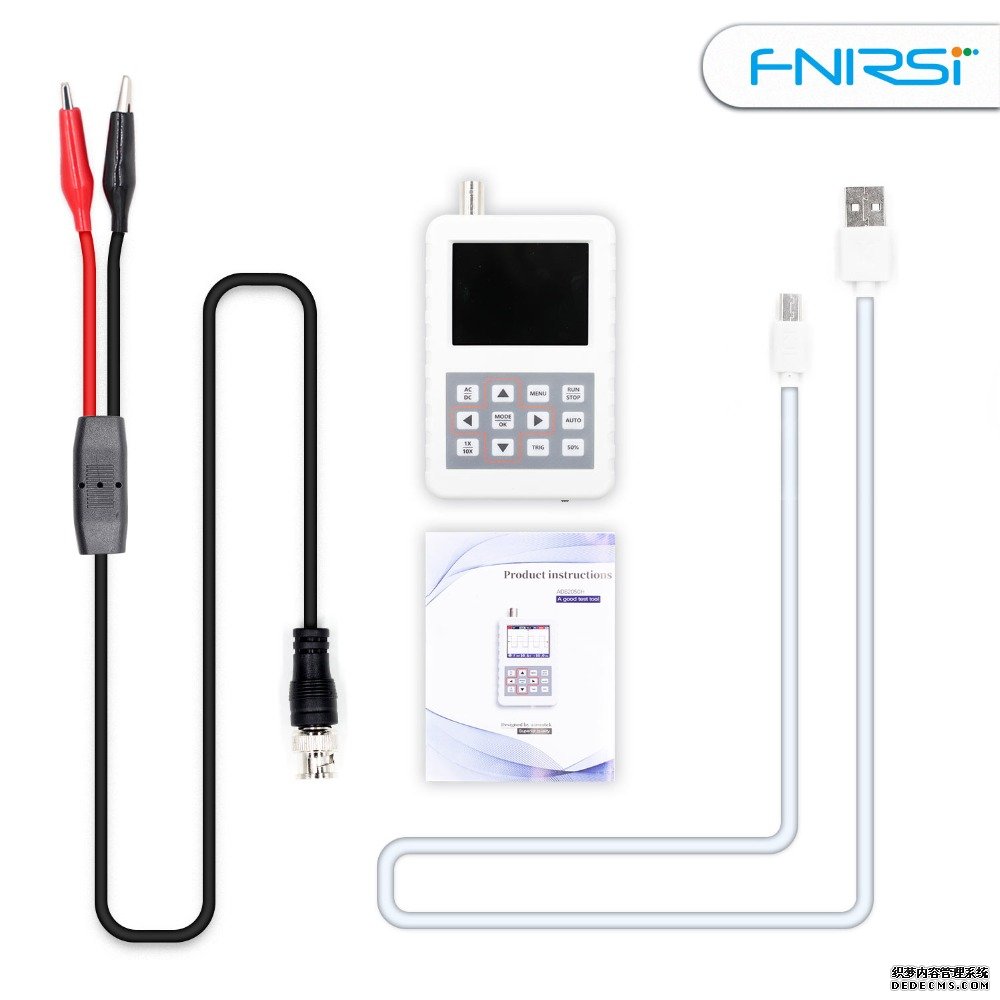

Package includes:
1 x FNIRSI-2031H oscilloscope host
1 x Crocodile clip probe
1 x Micro USB data line
1 x User manual (English)
