DSO1C15 Professional Digital Oscilloscope 500MS/s Sampling R

Product introduction:

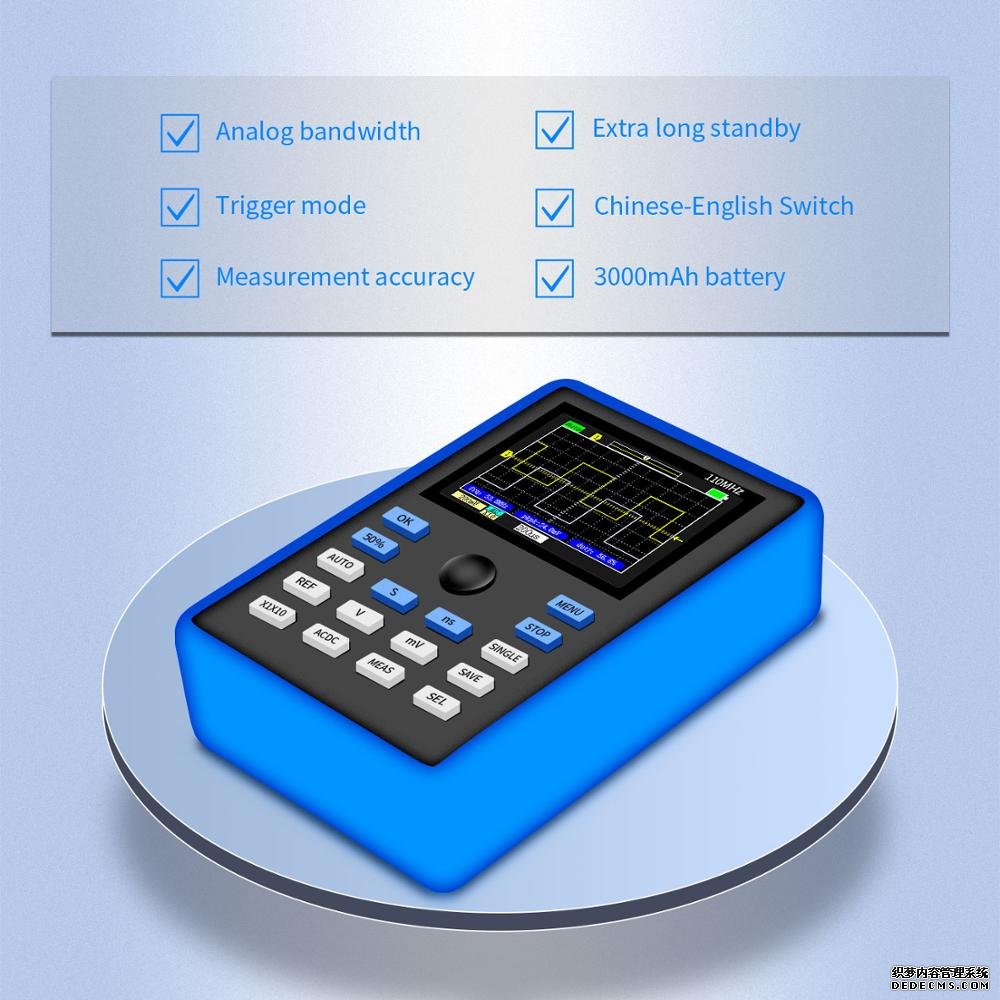

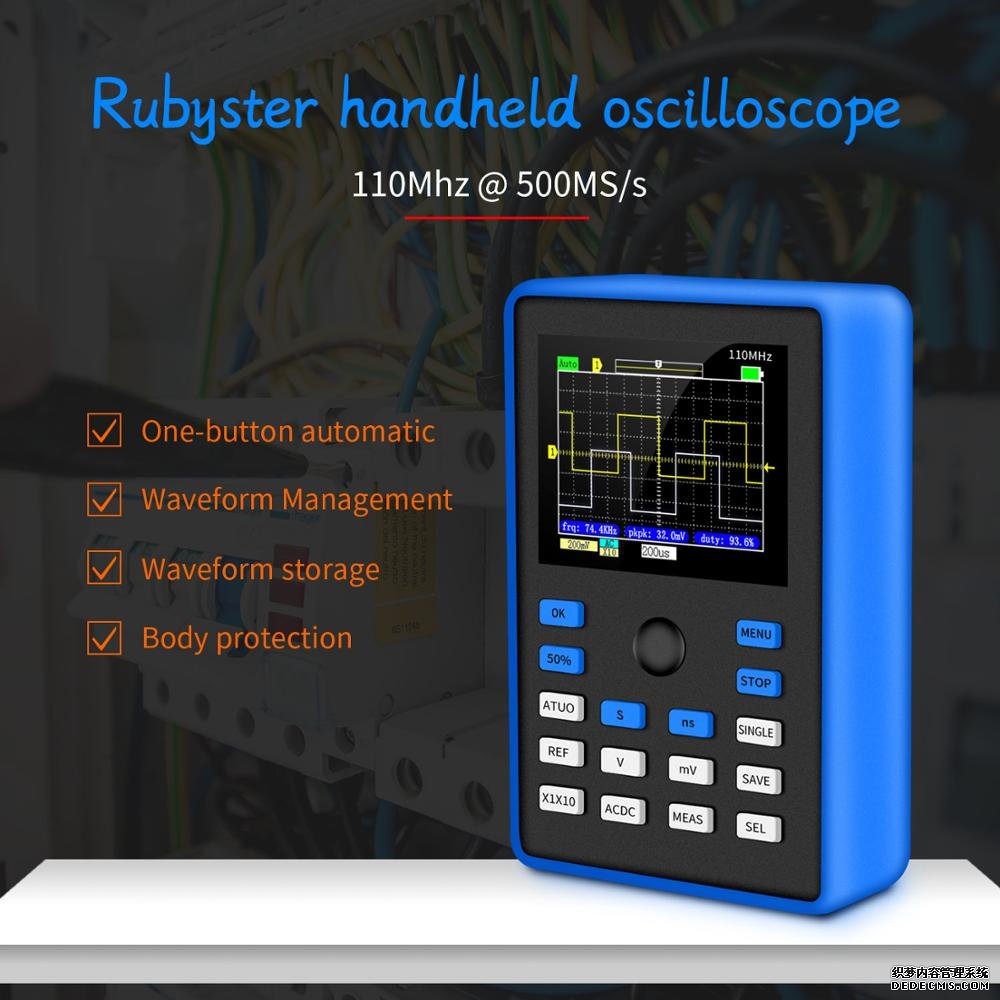

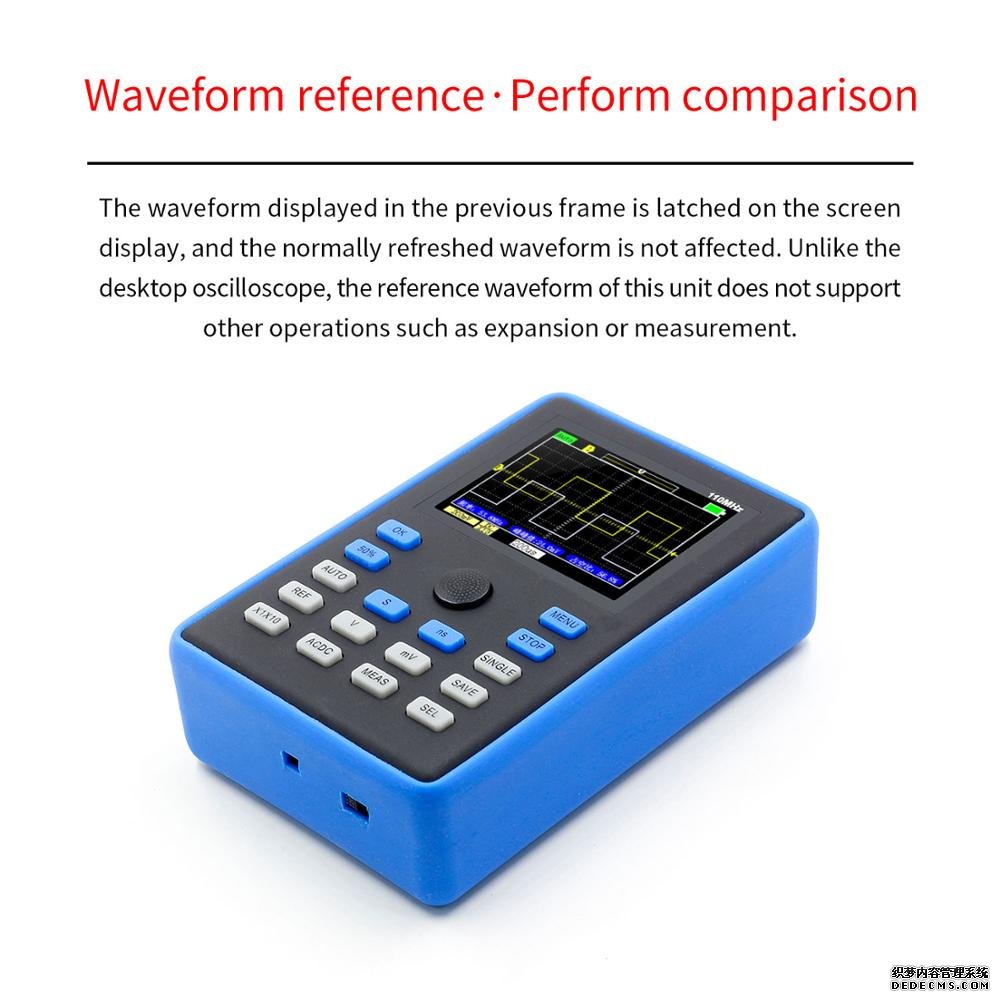

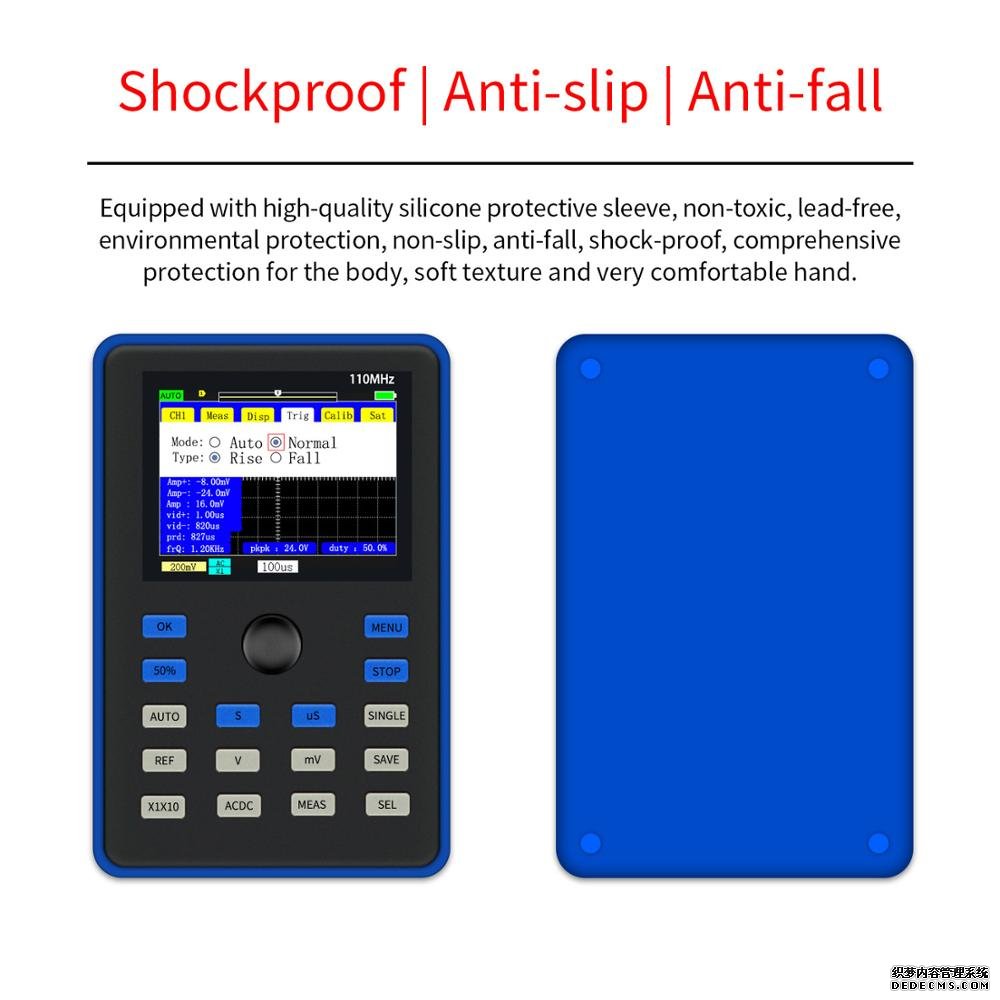

Rubyster-1C15 is a full-featured, practical, cost-effective handheld oscilloscope launched by Rubyster. 500M real-time sampling rate, 110MHz analog bandwidth. In addition to all the functions of a conventional handheld oscilloscope, we have added a one-button fast Auto function on this basis, so you can grasp the waveform as easily as a desktop computer. Fast waveform storage function, can store up to 81 pictures. Reference waveform, you can pause to save the previous frame waveform to the screen at any time, and you can compare it with the currently refreshed waveform. Afterglow and scroll modes make it easier to detect and record waveforms. Built-in 3000mAH rechargeable battery, can work continuously for more than 10 hours when fully charged. The body is equipped with a high-quality silicone sleeve, which is non-slip and anti-fall. The joystick replaces the original direction button, which is simpler and more efficient to operate.
Product parameters:
Model : Rubyster-1C15
Number of channels : 1
Screen size : 2.4 inches
Screen Resolution : 320*240
Analog bandwidth : 110M
Sampling Rate : 500M
Rise Time : <3ns
Storage depth : 240KB
Time base range : 5ns-10s
Vertical sensitivity : 10mv/div-10v/div
Trigger mode : Auto/Normal
Trigger type : Rising/Falling
Display mode : YT/scroll
Afterglow time : None/1s/∞
charging method : 5V/800mA
Voltage measurement range : ± 40v (x1 file);± 400v (x10 file)
Channel coupling : AC-DC
One-button automatic : Stand by
Waveform measurement : 14 types
Measurement accuracy : ±2%
Reference waveform : Stand by
Waveform save : Stand by
Frequency accuracy : ±0.01%
input resistance : 1MΩ

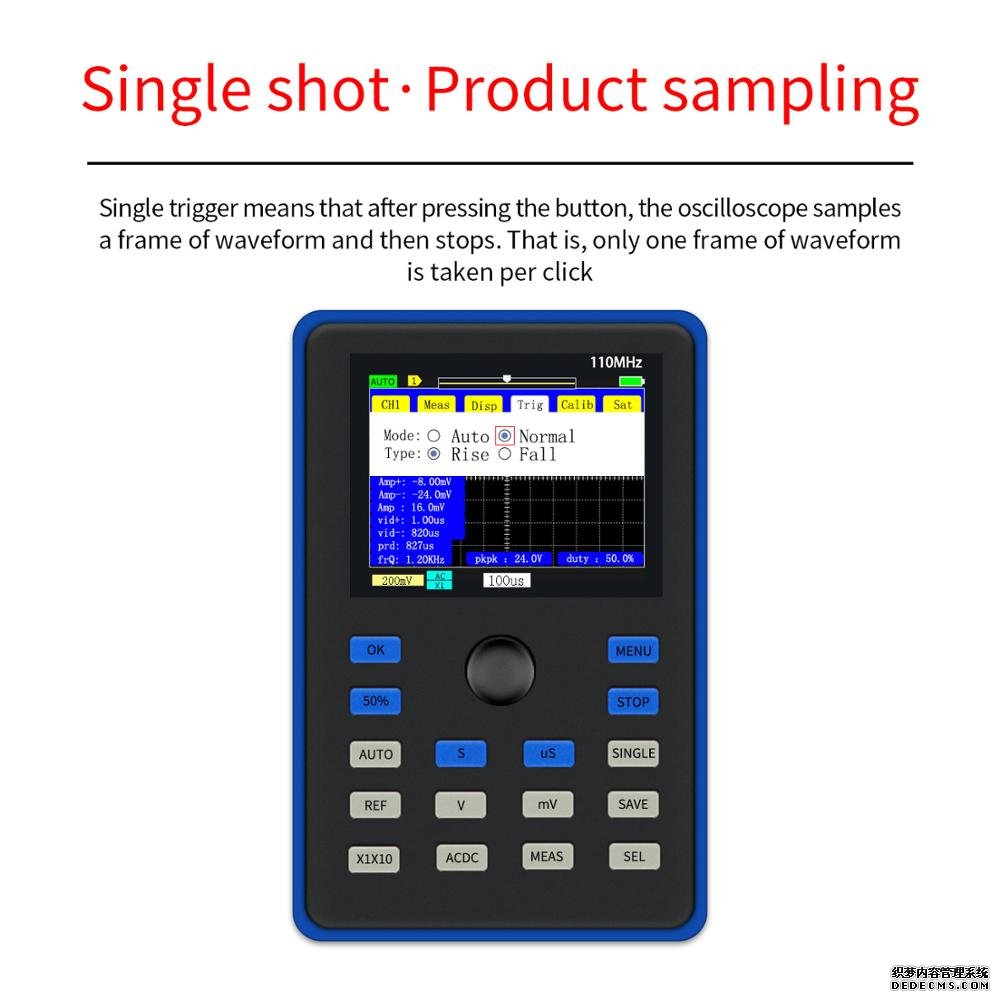

Single trigger : Stand by
50% (back to middle) : Stand by
Operation method : Button + joystick
Waveform analysis : Support drag/expand
after stopping
Language : Chinese/English
Appearance size : 115*75*33
Battery capacity : 3000mAh
Package includes:
1 x Rubyster-1C15 oscilloscope host
1 x Matching 100MHz probe(1X and 10X)
1 x Micro USB data line
1 x User manual (English)
1 x High quality package
