1014D Digital Oscilloscope 100MHz * 2 Analog Bandwidth 1GSa/

Price：$

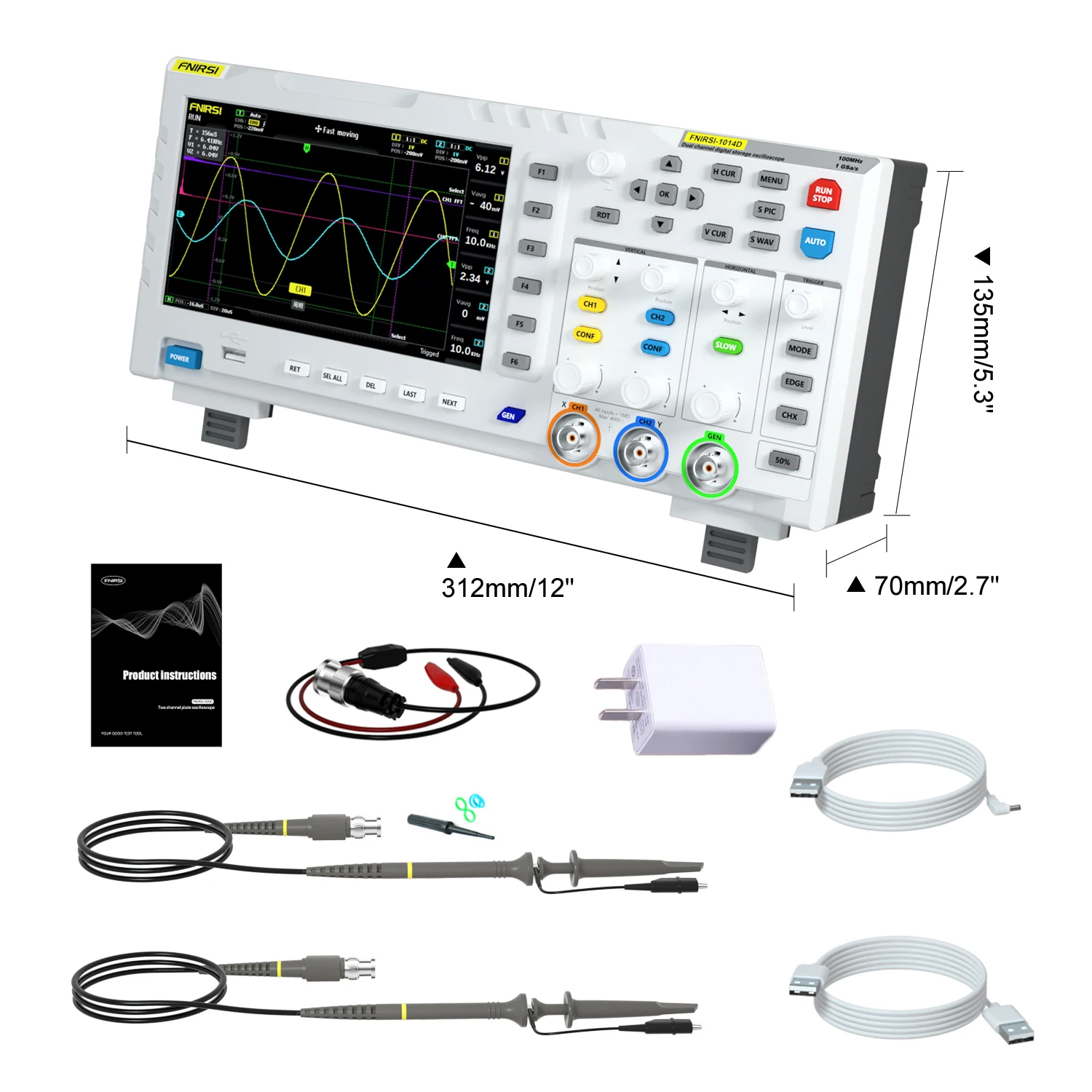

Product introduction

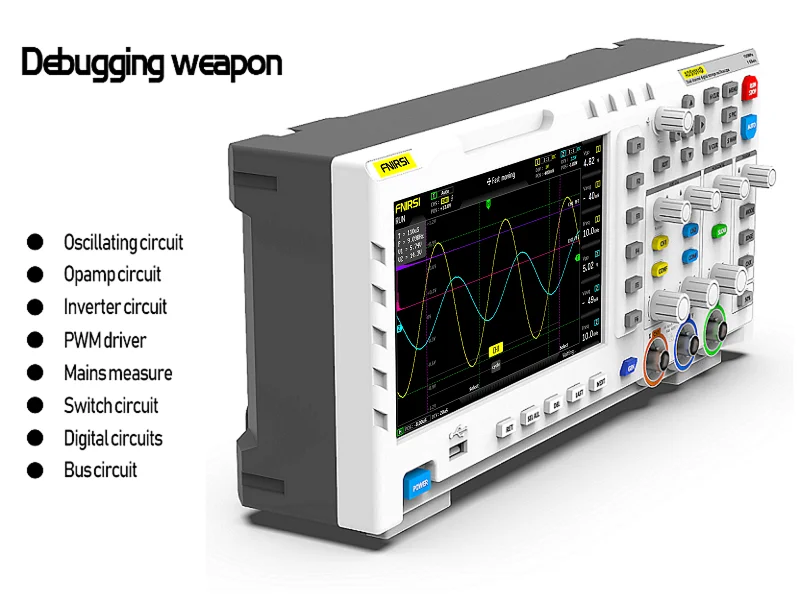

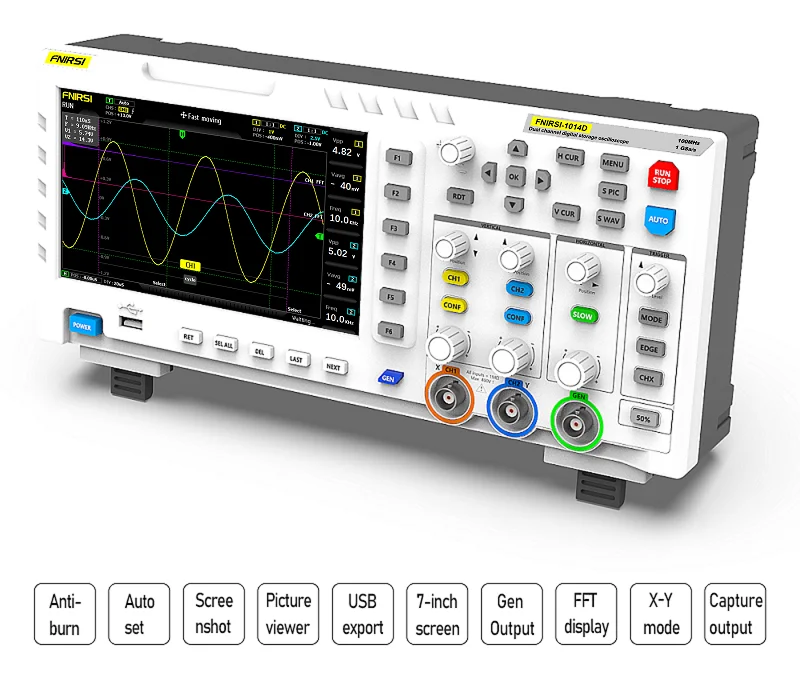

FNIRSI-1014D is a two-in-one oscilloscope and signal generator launched by FNIRSI, with comprehensive functions and high practicability. lt is a cost-effective dual-channel desktop oscilloscope for the maintenance industry and R & Industry.

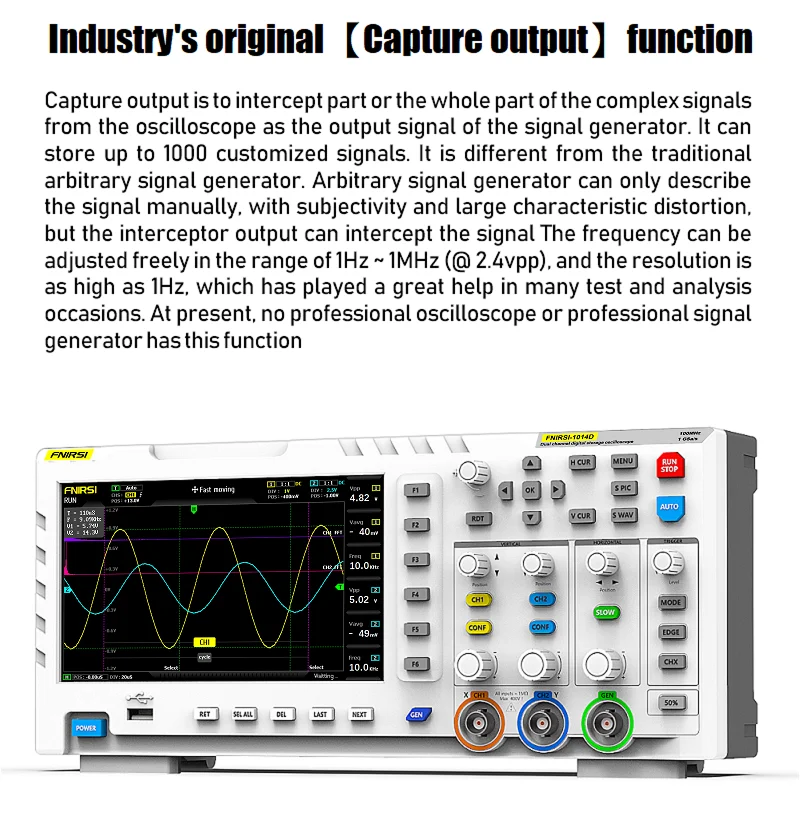

◆The oscilloscope has a real-time sampling rate of 1GSa / s, 100MHz* 2 analog bandwidth; complete trigger function (single time / normal/automatic), both for periodic analog signal and the aperiodic digital signal can be used freely; built-in DDS function signal generator and the industry's original chopping output(@ 2.5VPP), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable shopping signal, chopping The output device intercepts part of the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals; the built-in high-voltage protection module can tolerate up to 400v continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to10x gear.

◆Large timebase scrolling mode, which can monitor the slow level change; equipped with efficient one-button auto, self-adaptive 25%,50%,75% trigger, which can display the measured waveform without complicated adjustment; the display is equipped with 7-inch 800 * 480 resolution is high-definition LCD screen; cursor measurement function,which can read the amplitude and frequency parameters manually without reading the background scale unit and quantity, and without conversion To get the peak and frequency directly; extremely convenient screen capture and waveform storage function, built-in 1GB storage space, can store up to1000 screen capture pictures + 1000 groups of waveform data, the storage process is simple and fast, save the current waveform, just a click to save the current data, very convenient; powerful waveform image manager, support thumbnail browsing, view, view details The functions of page-turning,deleting and waveform enlarging, reducing and moving are convenient for secondary analysis.

◆The fuselage is equipped with a USB interface, which can be connected with the computer to realize the sharing of its screen capture pictures and the computer, which is convenient for secondary analysis; the Lissajous graphic display function can be used to compare and judge the amplitude, frequency, and phase of two groups of signals; FFT viewing function can roughly estimate the harmonic component of the signal; Li Shayu's graphic display function can be used to compare and judge the amplitude, frequency, and phase of two groups of signals.

Features

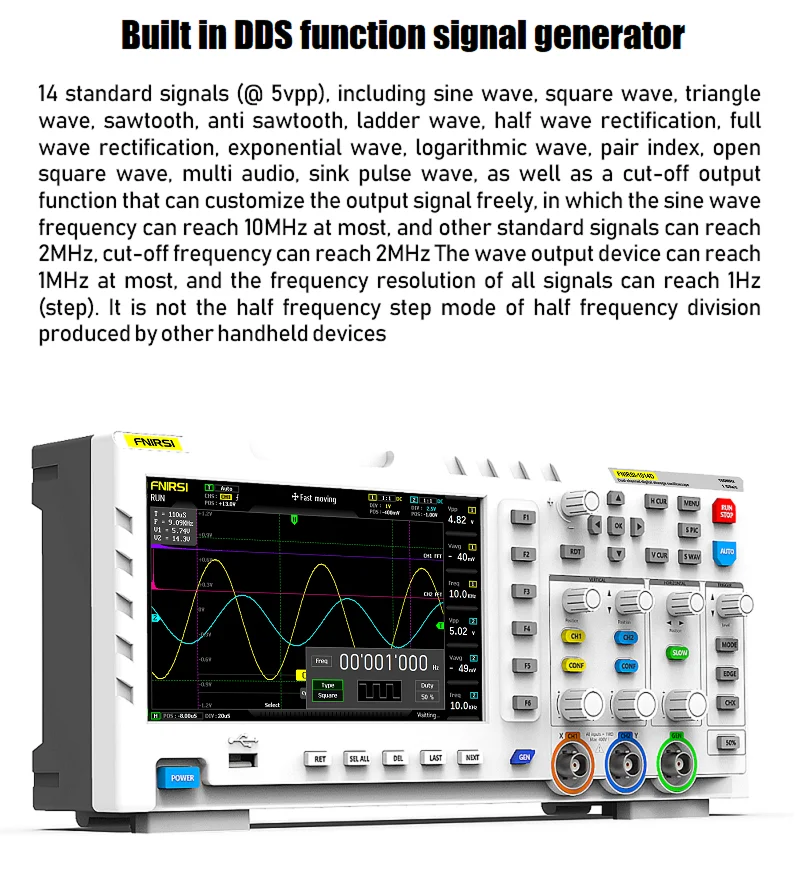

The Built-in DDS signal generator, support 12 kinds of function signal.

Capture output signal function, which can store up to 1000 capture signals.

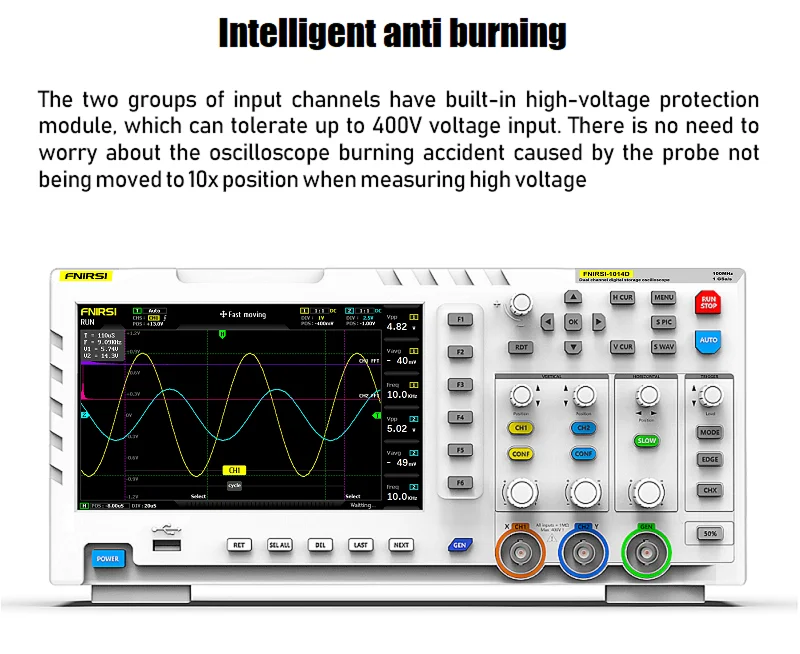

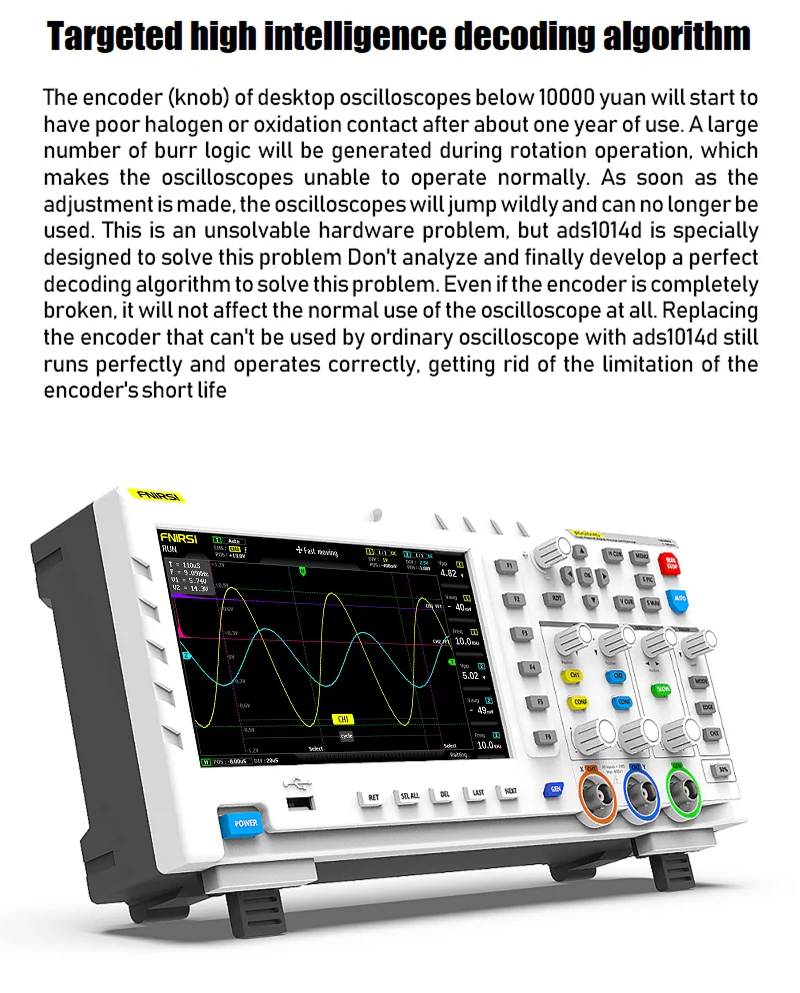

Targeted high intelligent decoding algorithm, the encoderlifeis infinite, and intelligent anti-burn function, 1X Can withstand up to 400V withstand voltage.

With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate（1X = 5MHz, 10X = 100MHz).

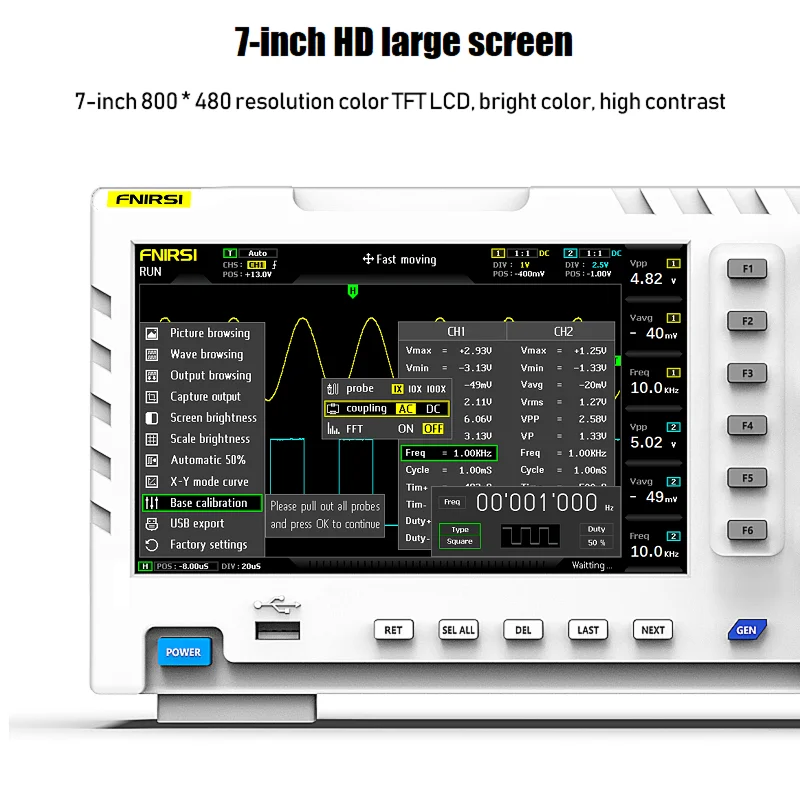

Fully fit 7-inch 800 * 480 resolution color TFT LCD with bright colors and high contrast.

High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.

Up to 12 parameters measurement： VPP， VP， Vmax， Vmin， Vavg， Vrms， Frequent， Duty+， Duty-， Time+， Time-， Period.

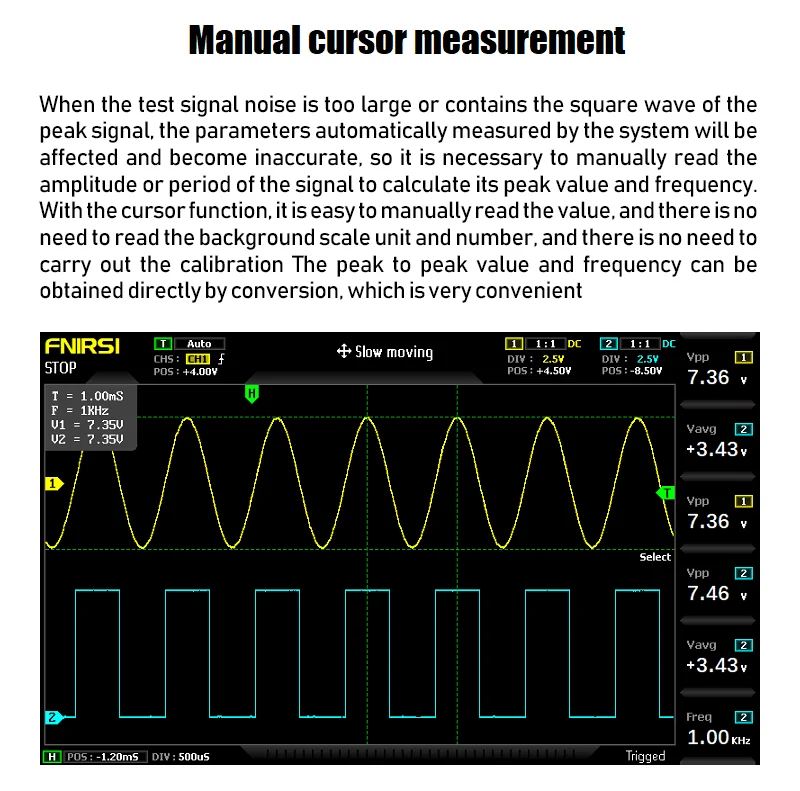

Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.

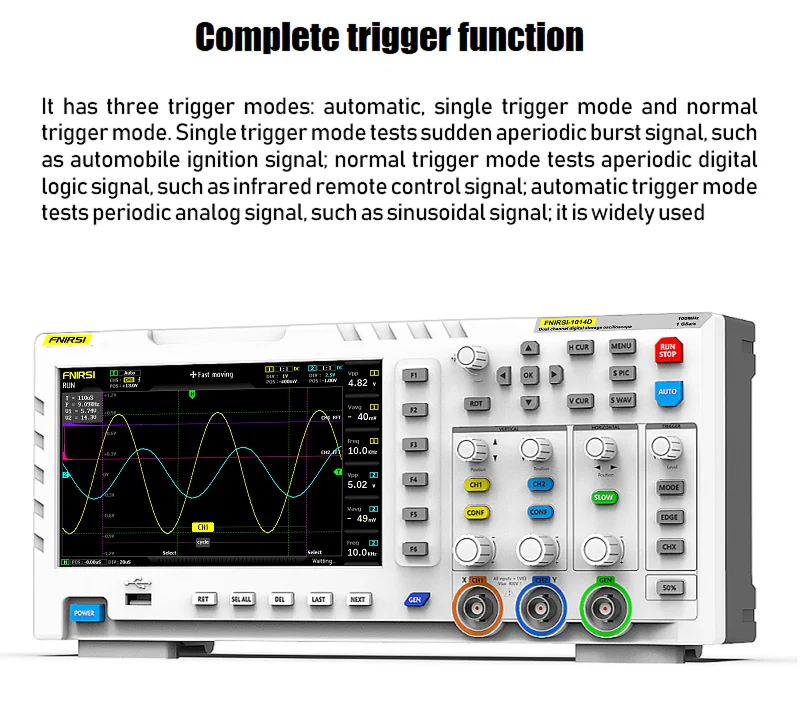

Complete triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is frozen.

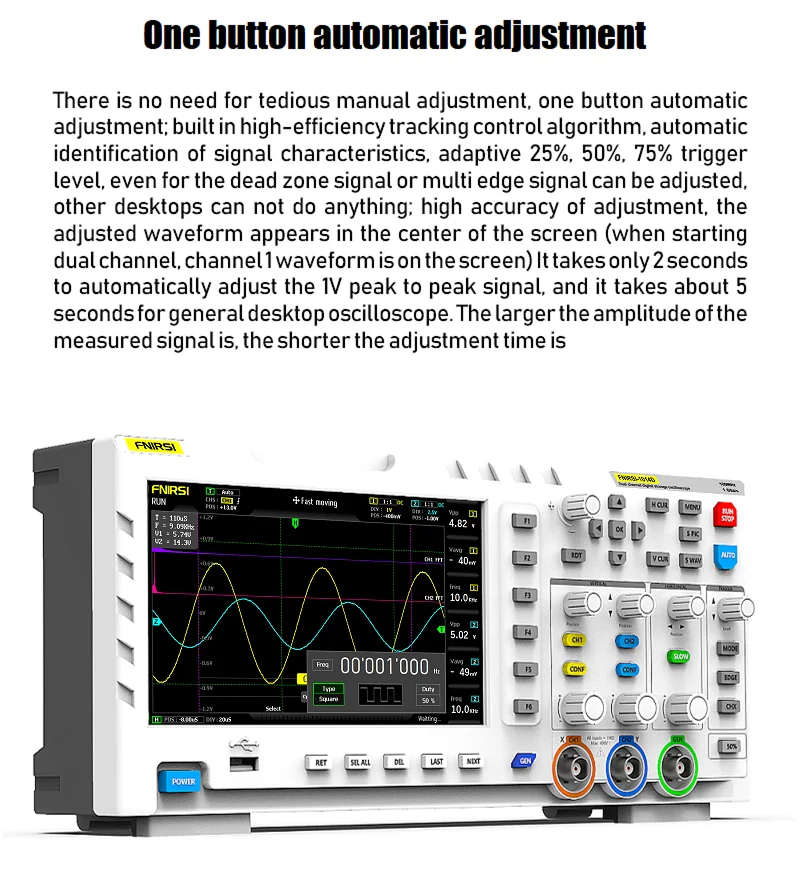

Equipped with high-efficiency One-button AUTO, and one-button waveform storage and screenshot function.

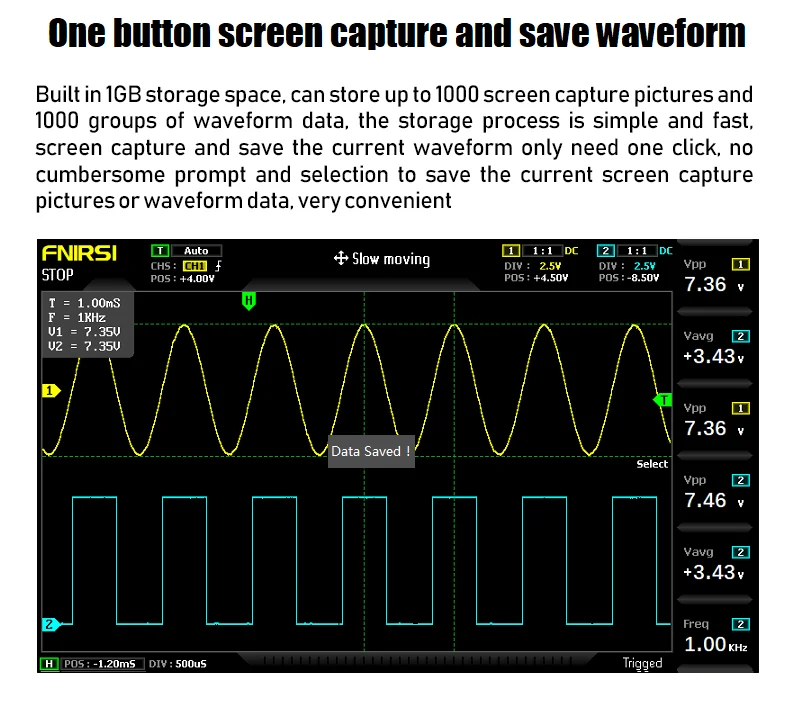

Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.

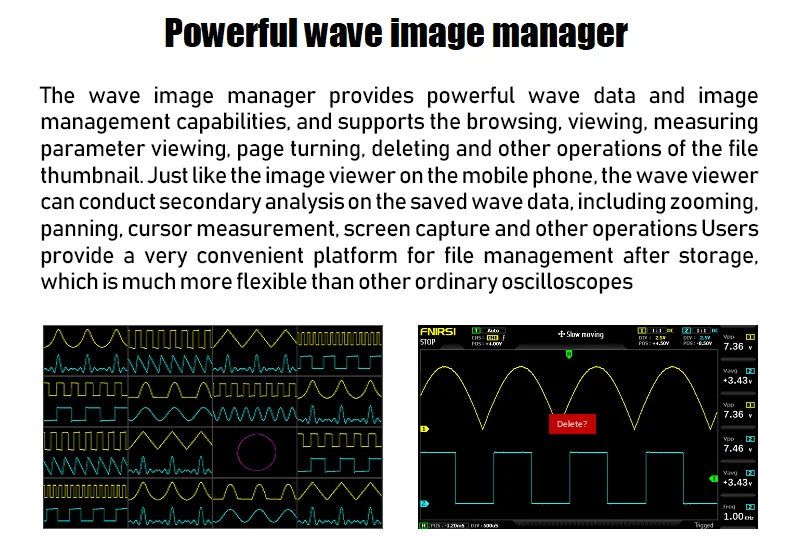

Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page-turning, deletion, and waveform zooming in, zooming out, moving, etc.

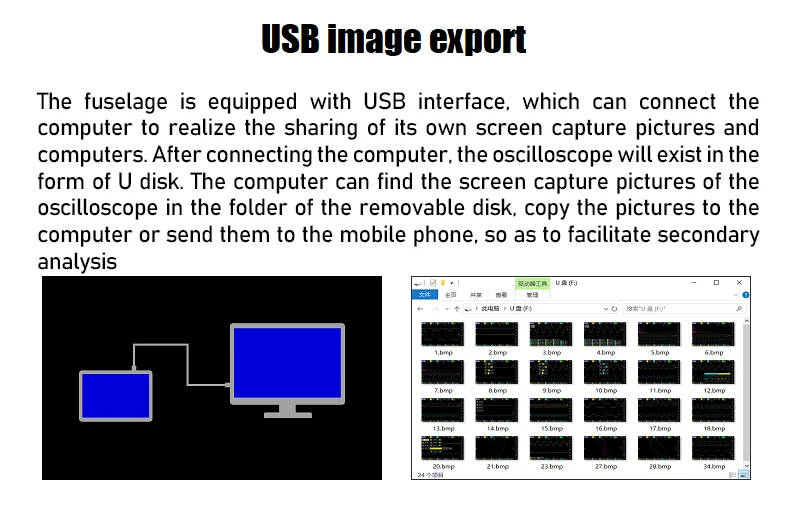

It is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, convenient for secondary analysis.

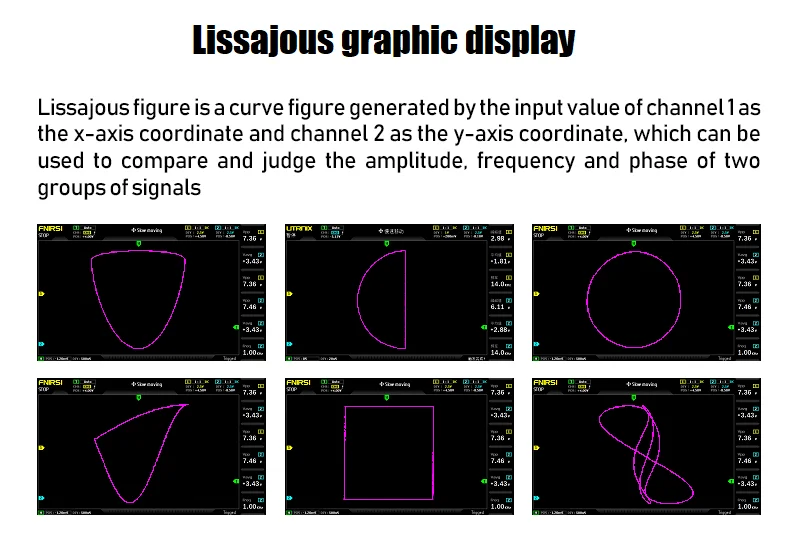

Lissajous figure's graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.

FFT display function can analyze the spectral characteristics of the signal, memory compression technology, waveform refresh screen does not flicker.

With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.

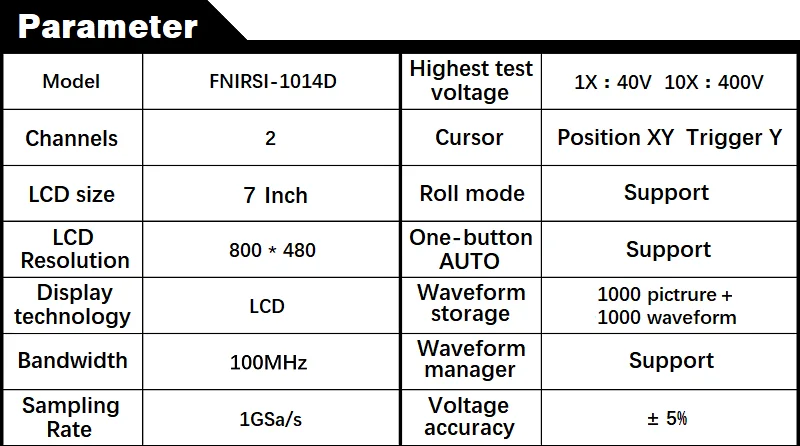

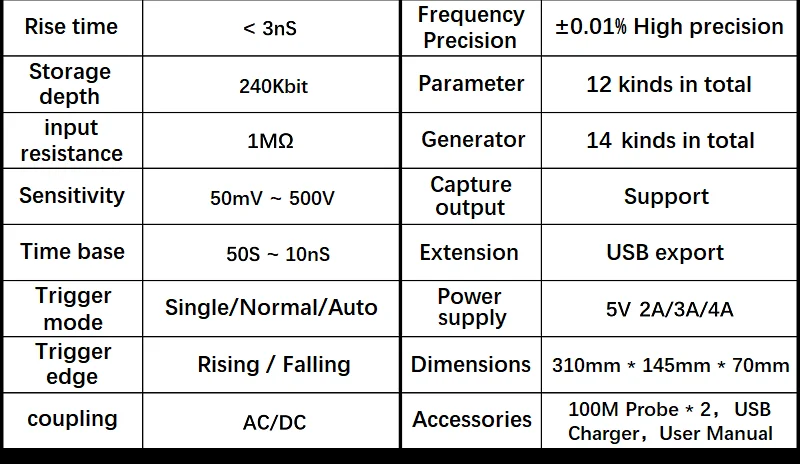

Specifications

Material: ABS

Ana-log bandwidth: 100MHz * 2

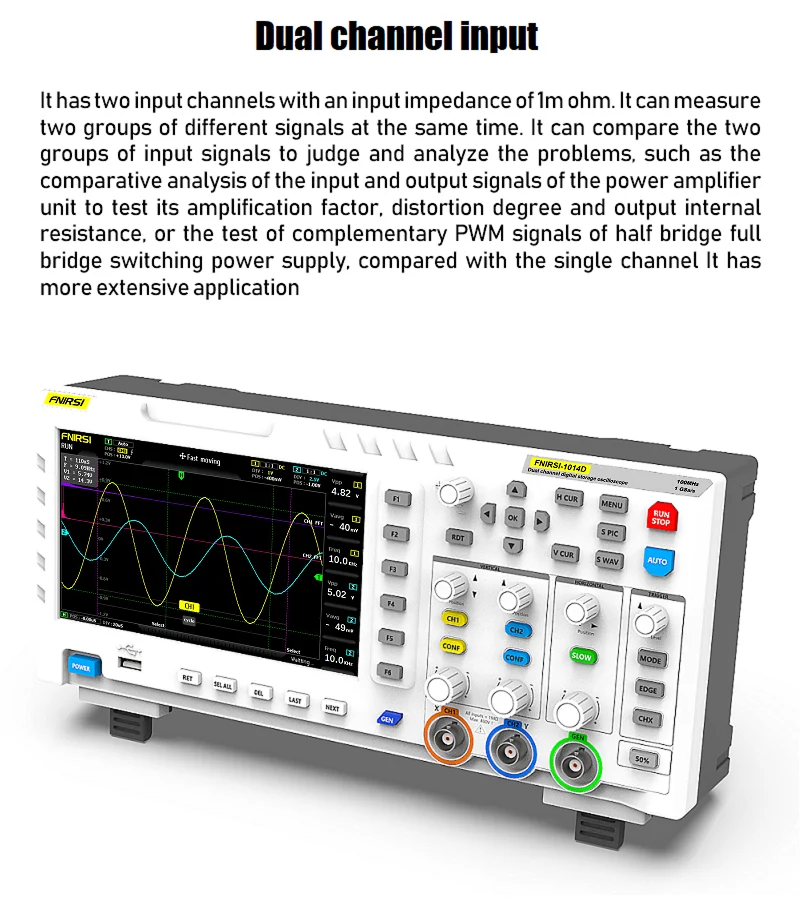

Number of channels: 2 channels

Maximum real-time sampling rate: 1GSa/s

Vertical sensitivity: 50 mV/div ~ 500 V/div

Horizontal time base range: 50S/div ~ 10nS/div

Maximum test voltage: 40 V (1X probe), 400 V (10X probe)

Storage depth: 240Kbit
