FNB58
This tester is a high-reliability, high-safety USB voltage andcurrent detection meter and a communication terminal quick recharging trigger. It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. Use external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supplys or power consumption of products such as USB interfaces, mobilephone chargers, and U disks. It can be used to measure the recharging power of mobilephones and the input and output of mobilephone power supplies. It also can be used to test the quick recharging protocol of chargers.
Features:
It has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface.
0.0001 low resolution, real-time detection of subtle changes in voltage, current and power while recharging.

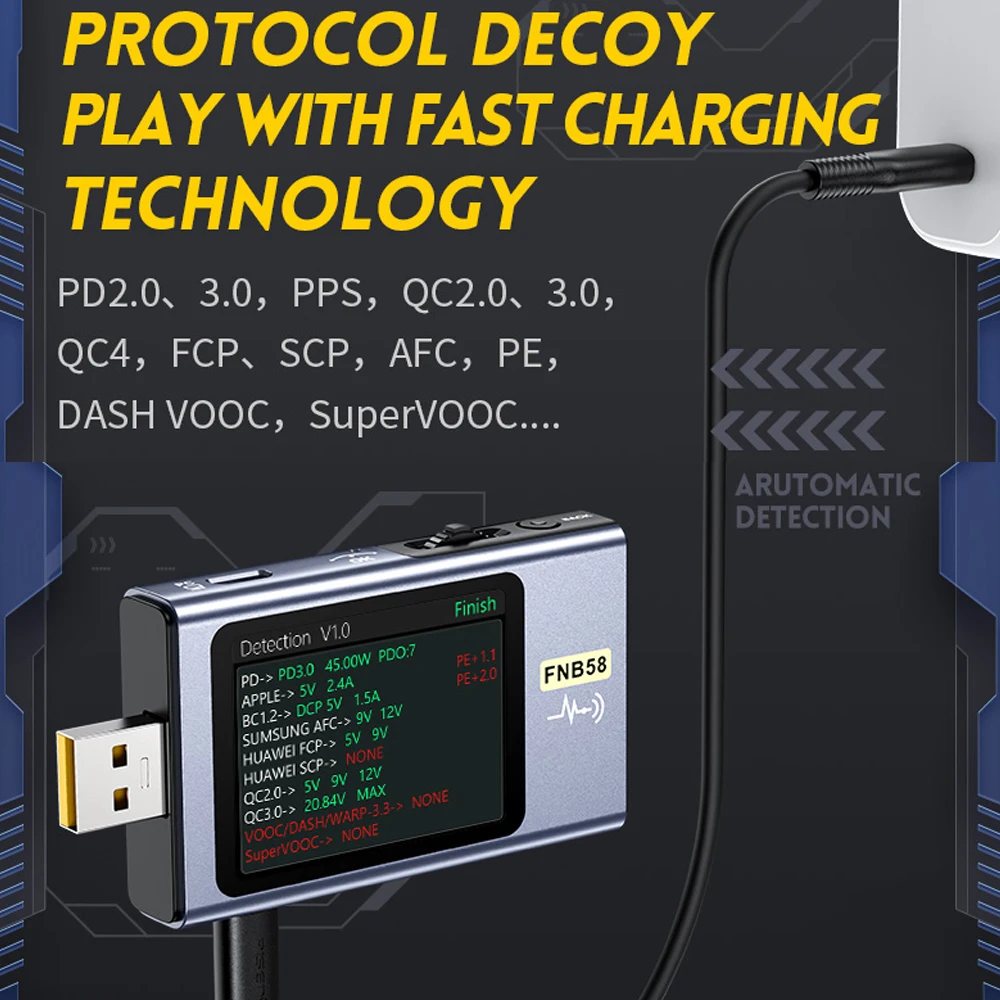

Support automatic protocol detection like PD2.0 and 3.0, QC2.0 and 3.0, QC4, SCP, AFC, PE, DASH VOOC, superVOOC, etc.
Four functions curve display: Real-time voltage and current curve for view recharging curve changes in real time Abnormal recharging is found immediately. The offline curve recording support up to 9 hours offline voltage and current curve recording, show up during recharging. D+D1 voltge curve can show the recharging protocols changes and master in time. The high-speed power supplys ripple measurement curve can show you the chargers ripple measurement.
PD E-MARKER CABLE DETECTION function makes it read data information of line with E-Marker chip, and DASH CABLE DETECTION function makes it read DASH cable chip related data, also support cable internal resistance measurement.
Support 10 sets of recharging and discharge energy data records. Built-in battery capacity calculation formula. The battery capacity can be quickly calculated from the recorded data.
The BT Version: The BT version allows you to synchronous data to your mobilephone and has the APP overvoltage and overcurrent alarm function. (Only BT version has this function.)
Specifications:
Material: metal
Type: without BT function, with BT function (optional)
Monitor voltage:
Ranges: 4～28V
Resolution: 0.00001V
Accuracy: ±(0.2‰+2)
Monitor current:
Ranges: 0~7A
Resolution: 0.00001A
Accuracy: ±(0.5‰+2)
Monitor Power:
Ranges: 0~120W
Resolution: 0.00001W
Accuracy: ±(0.5‰+2)
Load equivalent internal resistance:
Ranges: 0～9999.9Ω
Resolution: 0.0001Ω
Accuracy: ±(0.5‰+2)
D+/D- voltage:
Ranges: 0~3.3V
Resolution: 0.001V
Accuracy: ±(1.0%+2)
Capacity:
Ranges: 0～9999.99Ah
Resolution: 0.00001Ah
Energy used:
Ranges: 0～9999.99Wh
Resolution: 0.00001Wh
Cable resistance:
Ranges: 0～9999.9Ω
Resolution: 0.0001Ω
Item size: 82 * 42 * 12mm / 3.2 * 1.7 * 0.5in
Item weight:
Without BT: 43.1g / 1.5ounce
With BT: 44.3g / 1.6ounce
Package size: 115 * 85 * 20mm / 4.5 * 3.3 * 0.8in
Package weight:
Without BT: 90.1g / 3.2ounce
With BT: 91.7g / 3.2ounce
Packing List:
1 * Tester
FNB48P
This charging device with 1.77inch clear definition display screen, which could real-time monitor the subtle changes in voltage, current and power during charging. Dash cable detection able to read dash cable chip information, easy get wire informations. Built-in the calculation formula of battery capacity, to conveniently and fastly calculate the charging efficiency and capacity of the target object. Compatible with USB, TYPE-C, MICRO interfaces, support various quick charging protocols.
Features:
6-digit Display: With high precise, 1.77inch clear definition display screen, the data is clearly at a glance.
High Precise: The maximum resolution of the display is 0.00001, which could real-time monitor the subtle changes in voltage, current and power during charging.
Wire Detection: Dash cable detection able to read dash cable chip information, easy get wire informations.
Cable Internal Resistance Measurement: Two-step quick measurement of wire resistance with constant current load.
Data Record Function: There are totally 10 groups of data can be recorded intelligently.
Battery Capacity Calculation: Built-in the calculation formula of battery capacity, to conveniently and fastly calculate the charging efficiency and capacity of the target object.
Four Curves Design: Four curves of voltage current curve, D D-voltage curve, offline record curve, power ripple curve (ac coupling) to meet various needs.
Gravities Sensors: Auto flip, equipped with gravities sensors, which supports 180° and 360° automatic flipping (only the simple interface supports 360°).
Multi-port Compatible: Compatible with USB, TYPE-C, MICRO interfaces, support various quick charging protocols.
BT Version(Optional): PC host BT APP driver-free installation, data management, BT APP can be viewed synchronously, and over-voltage and over-current alarms can be set.
Specifications:
Name: Charging Device
Material: metal
Type: common version, BT version (optional)
Monitor voltage: 4-24V, 0.00001V, ±(0.2%+2
Monitor current: 0-6.5A, 0.00001A, ±(0.5%+2)
Monitor power: 0-156W, 0.00001W, ±(0.5%+2)
Load equivalent internal resistance: 0-9999.9Ω, 0.0001Ω, ±(0.5%+2)
D+/D-voltage: 0-3.3V, 0.001V, ±(1.0%+2)
Equipment temperature: 1℃(±(1.2%+3))/1℉(±(1.2%+4))
Capacity: 0-9999.99Ah, 0.00001Ah
Energy used: 0-9999.99Wh, 0.00001Wh
Cable resistance: 0-9999.9Ω, 0.0001Ω
Operation hours: 99d23h59m59s, 1s
Record time: 999h59m59s, 1s
Item size: 77 * 39 * 14mm / 3.03 * 1.54 * 0.55in
Package size: 100 * 50 * 30mm / 3.94 * 1.97 * 1.18in
Package weight: 200g / 7.05ounce
Packing List:
1 * Charging Device
