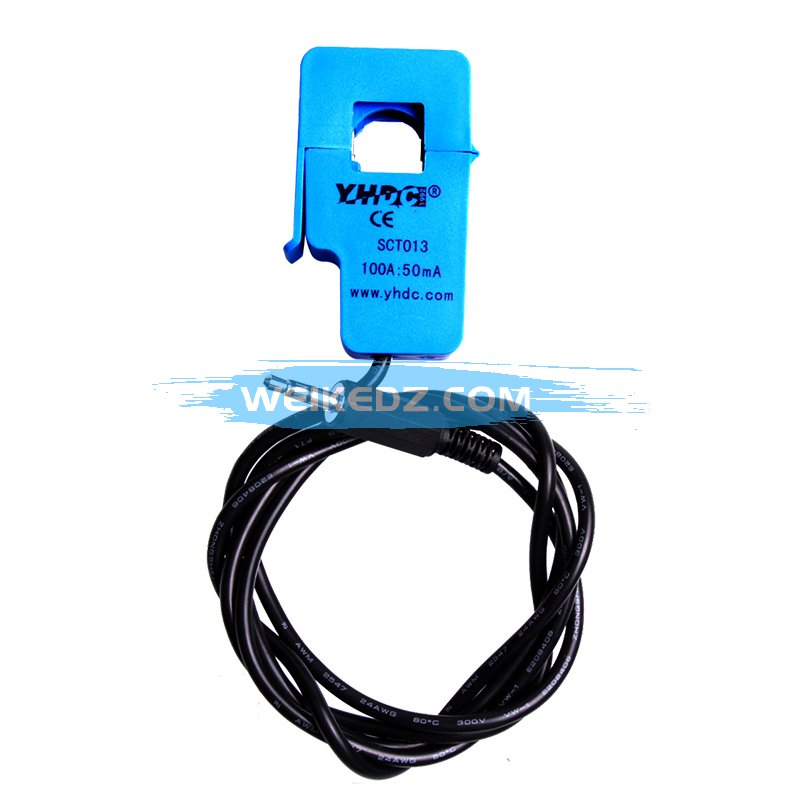

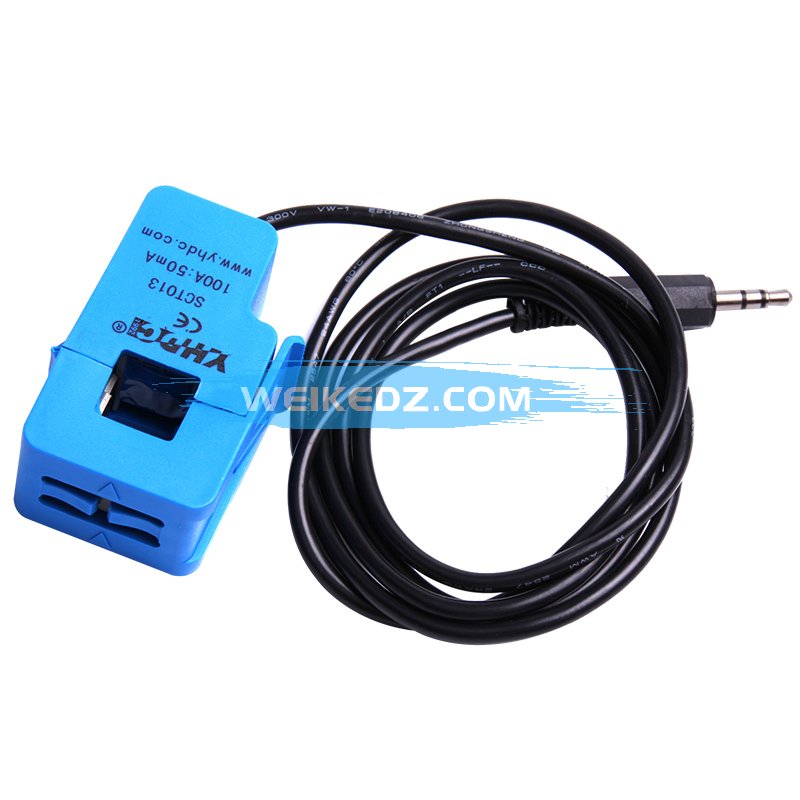

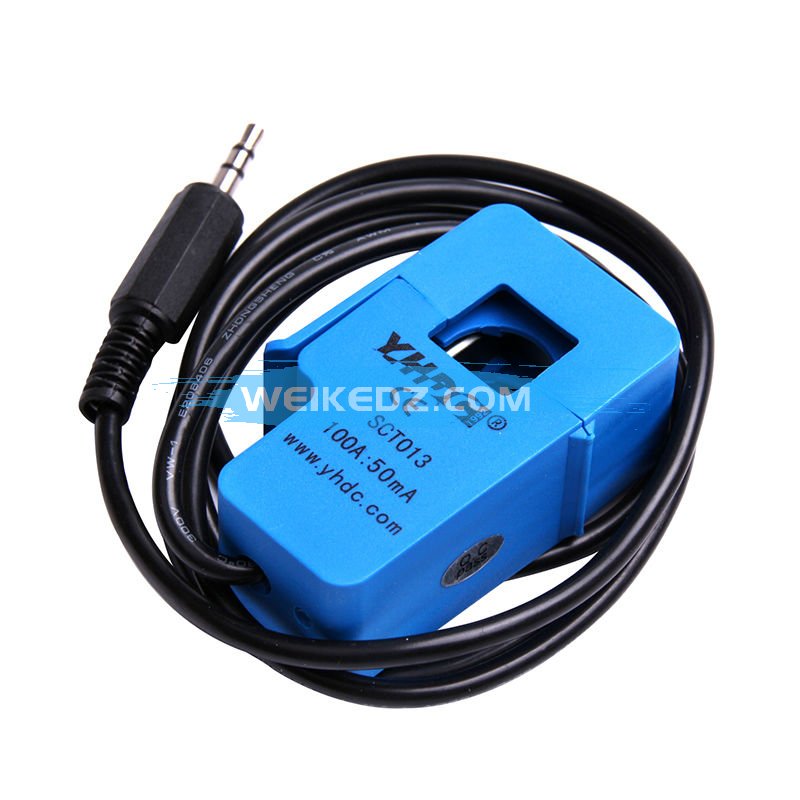

SCT-013-000 YHDC 100A Switching Type Current Transformer SCT


Description:
Model: SCT013
Frequency: 50HZ-150KHZ
Switching type transformer SCT-013 rated input current: 100A type: SCT-013 input current: 60A/100A
Characteristic:

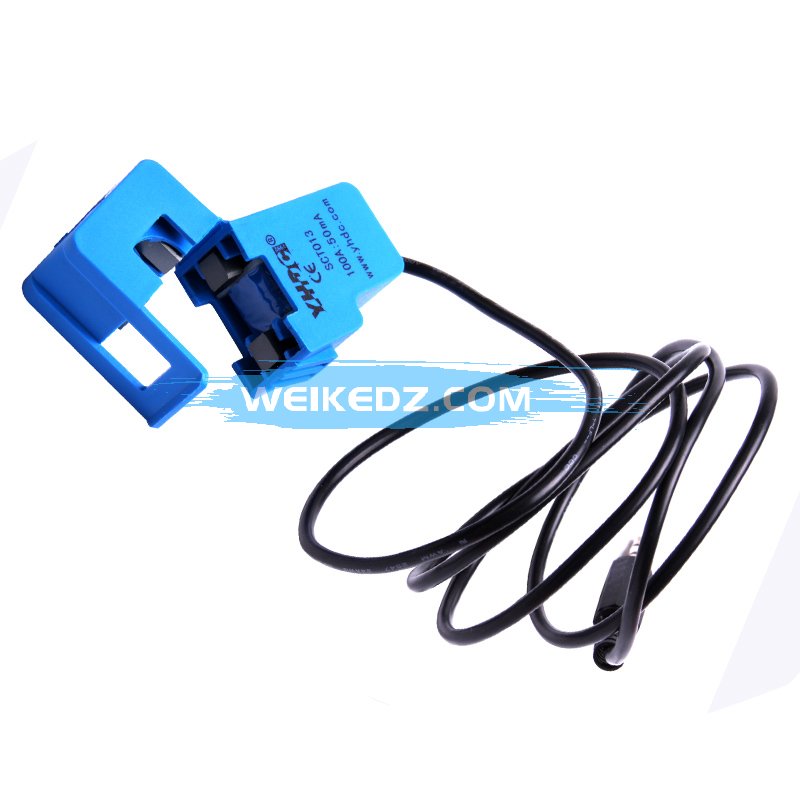

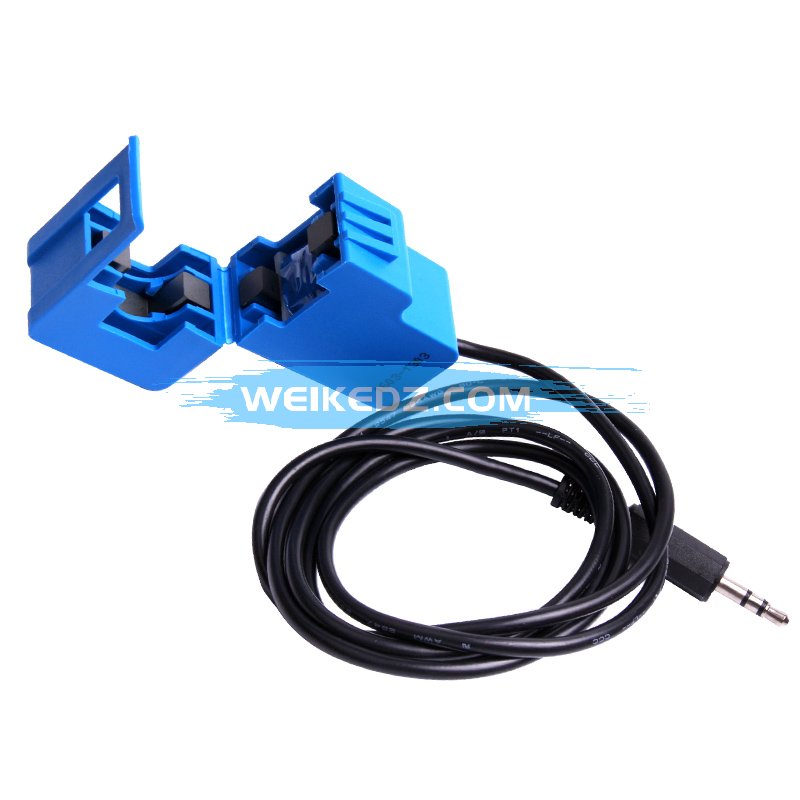

Opening size:Opening size: 13mm * 13mm, fully compatible with similar foreign products; nonlinearity ±3%(10%~120%rated input current); lead length 1.5 meters,With standard Φ3.5  three pin plug output ,current, voltage, two kinds of output forms (voltage output, built-in sampling resistor).

Use:
For current measurement, monitoring and protection of AC motor, lighting equipment, air compressor, etc.

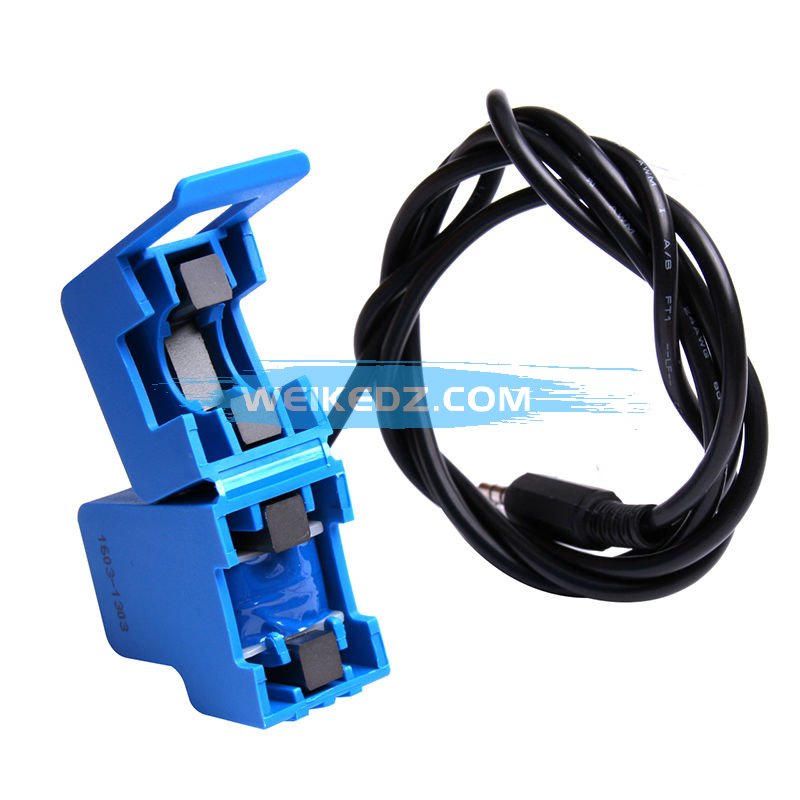

Core material: ferrite
Mechanical strength: opening and closing times  not less than 1000 times (test at 20 degrees Celsius)
Safety indicators: resistance to electrical strength (shell and output)6000V AC/1min flame retardant properties conform to UL94-V0
Working temperature: -25 ~ +70 degrees Celsius
