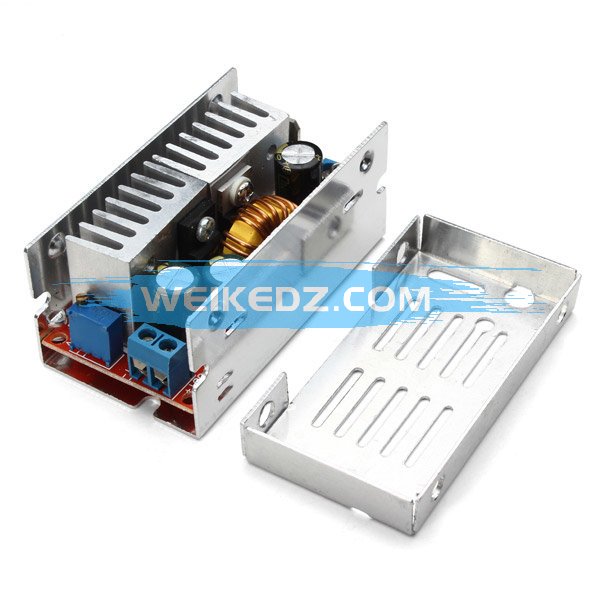

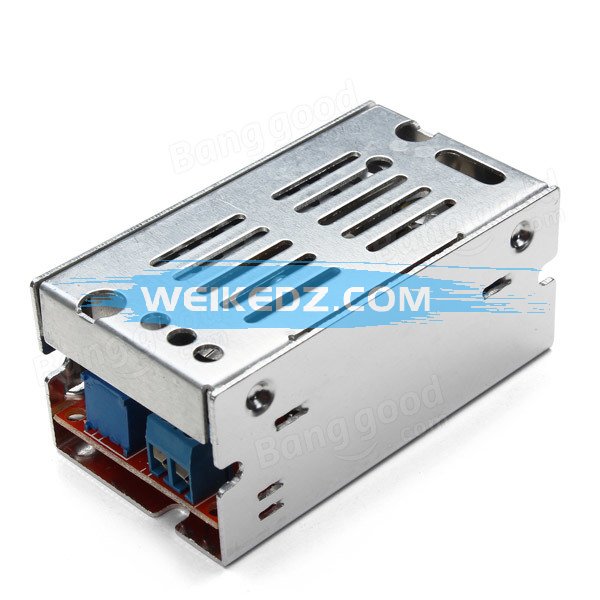

Feature: Module Name: 200W adjustable buck module Model: ZS-PD8 Type: Non-isolated buck module (BUCK) Input voltage: 4.5-32V (maximum can not exceed 32V) Output voltage: 0.8-30V continuously adjustable Output current: MAX. 12A (There are associated between current, voltage and temperature. When in high current, the chip overheating and automatically reduced flow, in the general ambient temperature naturally cooling current can in 9-12A, stable working strengthen cooling can up to 9-12A) Output power: Natural cooling power 100W, enhance cooling can up to 200W Working temperature: -40 to + 85 degrees Operating frequency: 300KHz Conversion efficiency: Up to 95% (efficiency is related with input / output voltage, current and pressure) Short circuit protection: Yes Overtemperature protection: Yes (automatically shut off the output after overtemperature) Input reverse polarity protection: Yes (please do not reverse for a long time) Transient pulse voltage protection: Yes (OVP voltage 34V) Wiring: High current terminals, free welding, IN+ IN- for input positive and negative, OUT+ OUT- for output positive and negative Aluminum Shell Size: 70 x 39 x 31mm
Applications: This module can be applied to fields in the input voltage is higher than the output voltage of buck, such as batteries, power transformers, DIY adjustable power supply, 24V car computer power supply, low-power motor control, automotive LED lights with power, industrial equipment buck, 12V turn 3.3V, 12V turn 5V, 24V turn 5V, 24V turn 12V and so on.
