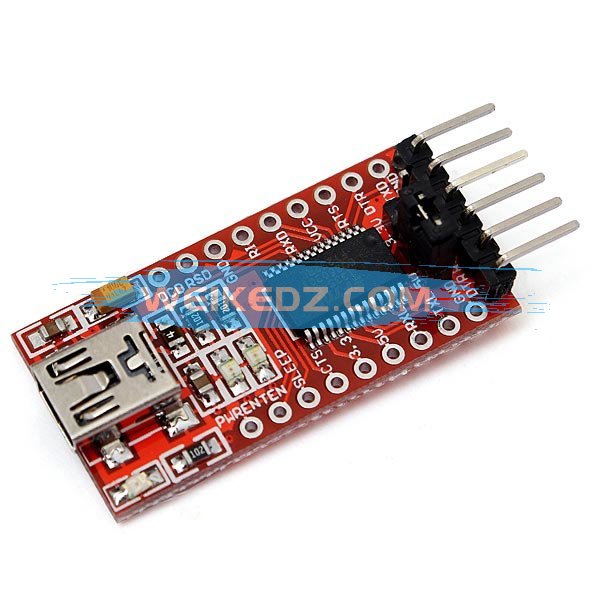

Feature:
Chip: FT232RL
Draw out all signal port of FT232RL chip
RXD / TXD transceiver communication indicator
USB power supply, can choose 5V or 3.3V, set by jumper
With over current protection, using 500mA self-restore fuse
Pin definition: DTR, RXD, TX, VCC, CTS, GND
Pitch: 2.54mm
Size: 36 x 18mm (L x W) Interface: Mini USB
Note: This chip is not orignal, do not have EEPROM, can not invert the signals.
