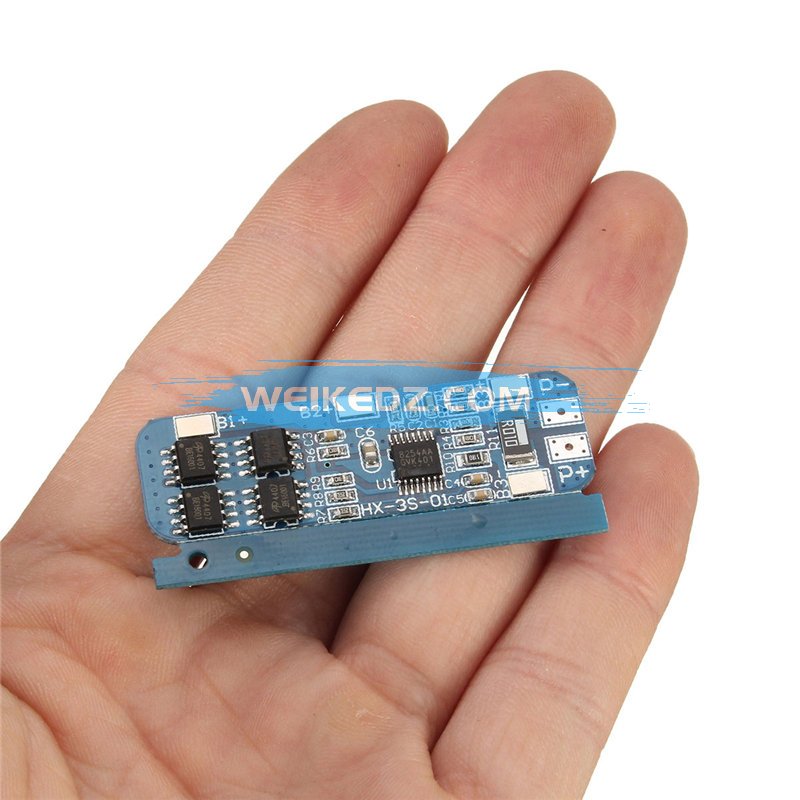

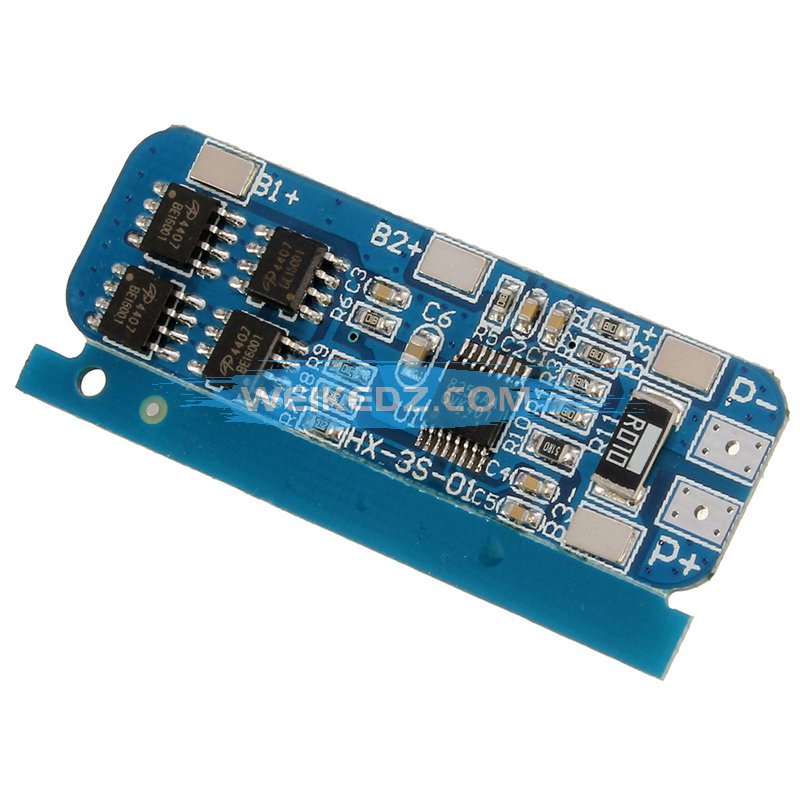

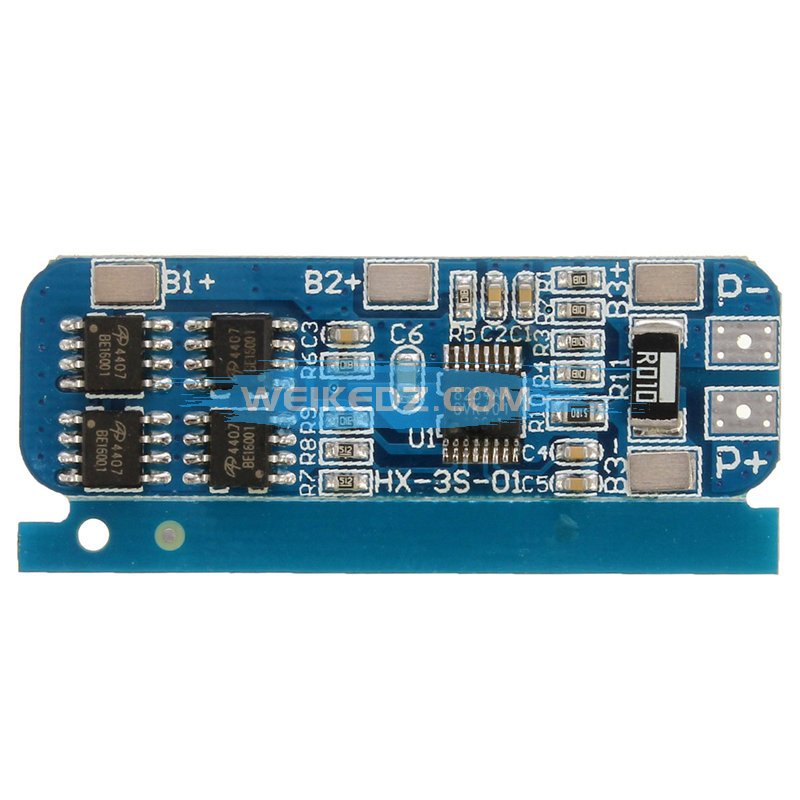

50x21x1mm 10A BMS Charger Protection Board for Pack of 3 18650 Li-ion lithium Battery Cell
Features: Size: 50x21x1mm Maximum discharge current: 10A Overcharge detection voltage: 4.25-4.35V±0.05V Over-discharge detection voltage: 2.3-3.0V±0.05V Maximum working current: 5A-8A Transient current: 9A-10A Operating temperature: -40~50 degree Storage temperature: -40~80 degree Quiescent current: <6uA Internal resistance: <60mΩ Service life: >30,000hours
Short circuit protection. Overcharge protection. Over-discharge protection. Overcurrent protection. Can be applied to various 3.7V lithium core. Compact size and lightweight. Ensure the security of battery pack.
