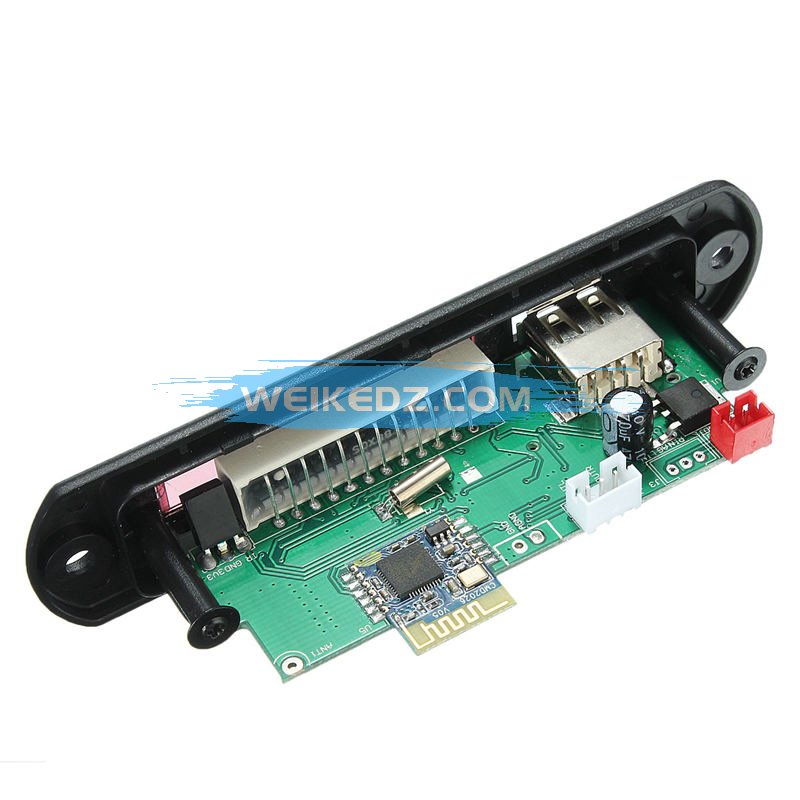

New DIY Electric Unit High quality Newest Car Bluetooth MP3 WMA Decoder Board 12V Wireless Audio Module USB TF Radio
100% brand new and high quality With bluetooth audio receiver module, when cell phone and bluetooth module matching connection,the MP3 or nondestructive APE files via bluetooth sent to the product of the bluetooth receiver module to play,which has greatly helped the function of the product and entertainment.This product also be like ordinary MP3 decoder board,play U disk or TF card MP3 files,as well as the radio broadcast.(This product without bluetooth calling function,with no power amplifier,only connect to an external amplifier can it use) support signal switch directly.Support USB, TF support bluetooth (Bluetooth3.0 EDR) (after been paired with mobile phones can realize wireless music play) support USB/TF/Bluetooth/FM/LINE switch.MP3/WMA,WAV lossless music decoding chip. support USB/TF card switch,PREV,NEXT,fast forward,fast rewind,volume,EQ,play/pause,stop,single repeat,mute, shutdown and direct election. support Bluetoot PREV,NEXT,volume,EQ,play/pause,mute,turn it off. support FAT16,FAT32 file system.Support for MP1 Layer3,MP2 Layer3,MP3 Layer3 version of the song.Support 32-320 KBPS MP3 songs. support power off memory function: memory play songs and volume before power off. Note: Non-smart phones (android) have to enter the password - 0000

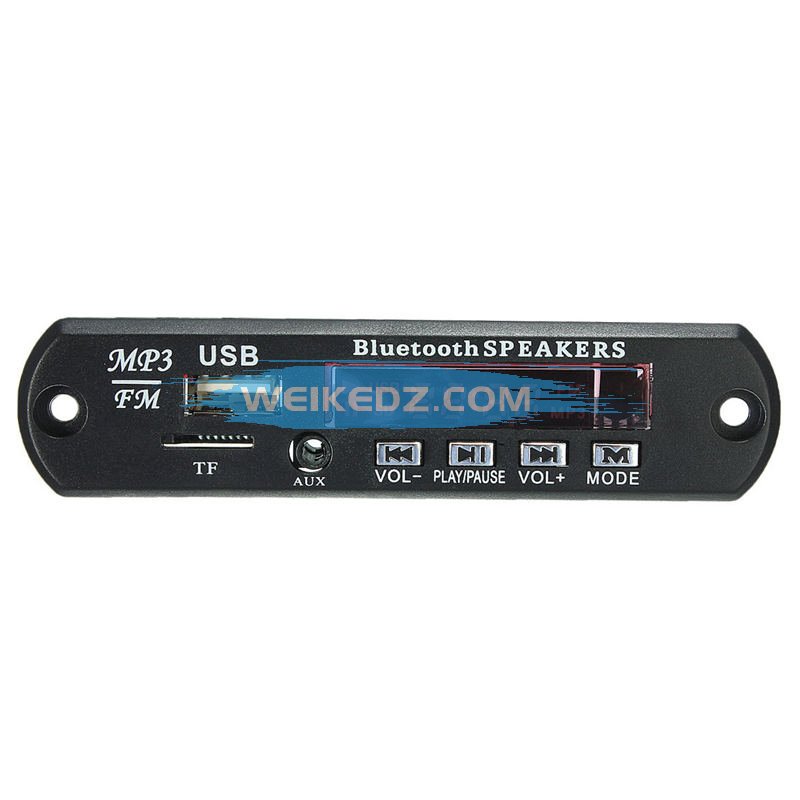

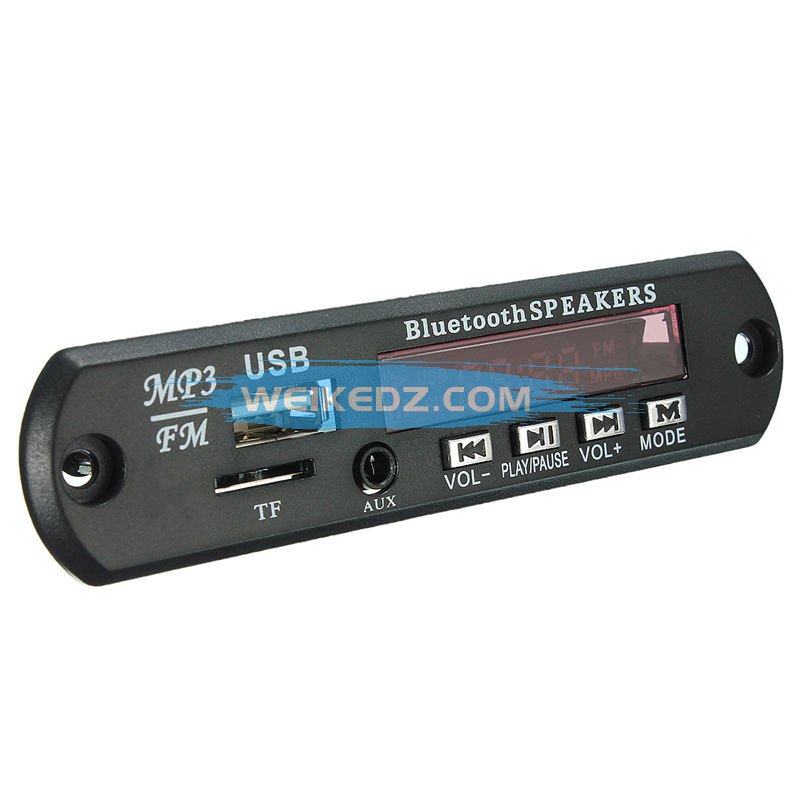

Decoding board play mode instruction Decoding board in the absence of memory card or U disk,boot default to "audio input" mode,the screen display LINE Press "MODE" key on the panel or the remote control switch to bluetooth MODE,the screen shows "BLUE",can open bluetooth search connection at this time Press "MODE" key on the panel or the remote control switch to radio MODE,the screen display FM radio frequency,long press "PLAY" button automatic searching channel Press "MODE" key on the panel or the remote control switch to the U disk or memory card "play MODE",the screen displays the time schedule of the song.
Specification: Installation pitch: 95 mm wide Installation hole: 83 x 20 x 30 mm Overall dimensions: 107 (W ) *25 ( H ) * 30 ( deep) mm Input voltage 7-12V Quantity: 1 set Due to the difference between different monitors, the picture may not reflect the actual color of the item. Please understand, Thank you!

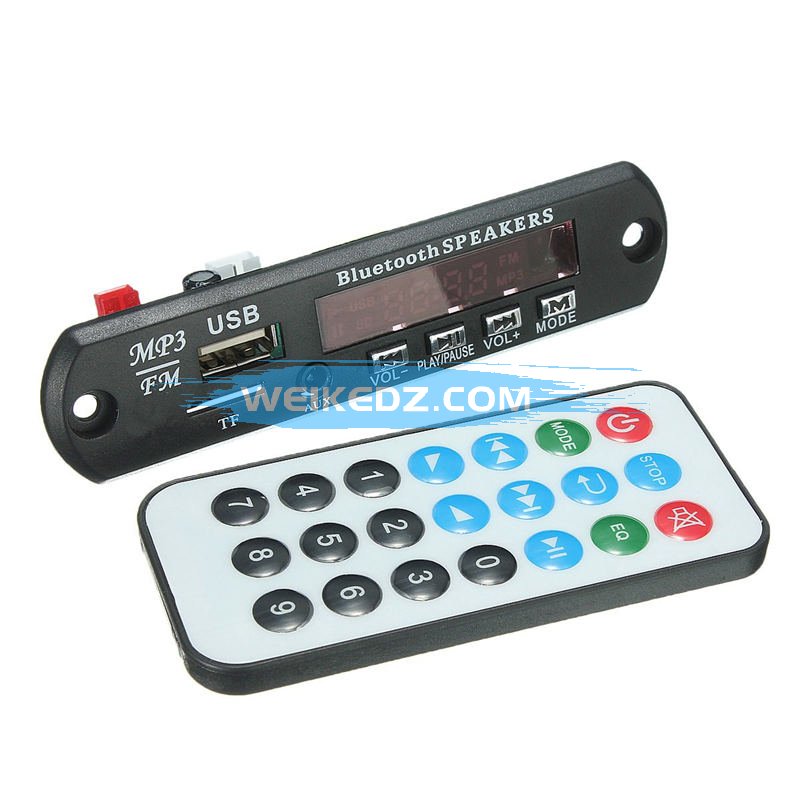

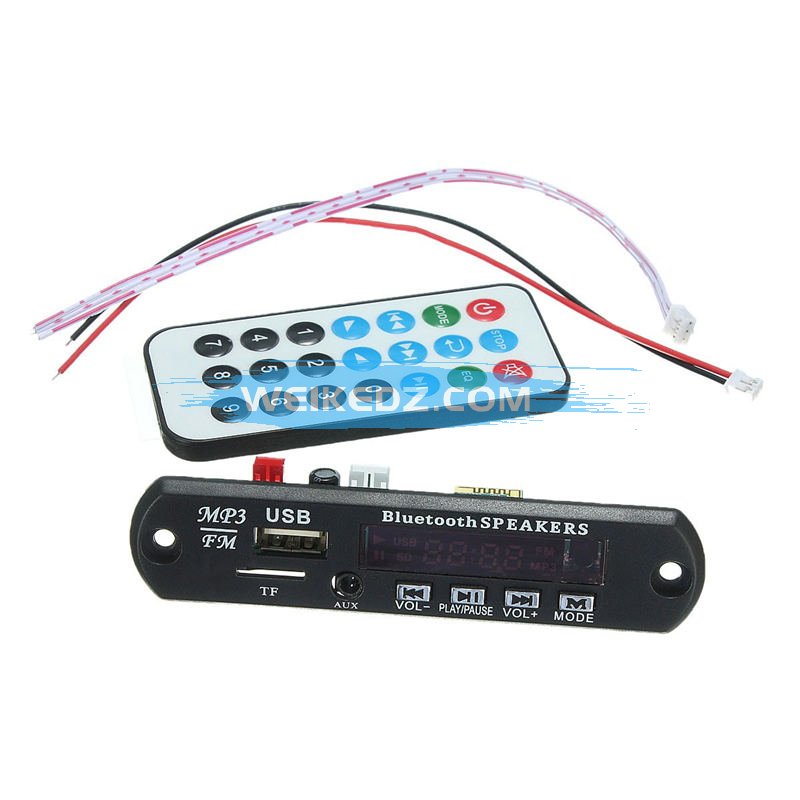

Package includes: 1 x Decoding board 1 x The remote control 1 x 2P plug wire with power supply reverse connection protection 1 x 3P audio plug thread
