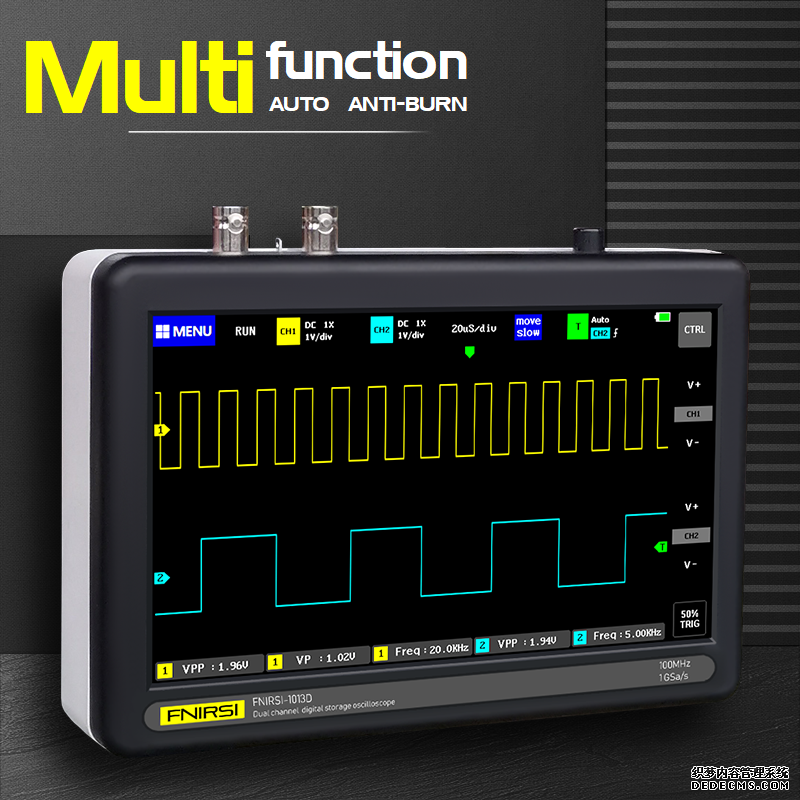

FNIRSI-1013D Digital tablet oscilloscope dual channel 100M b

Key features:

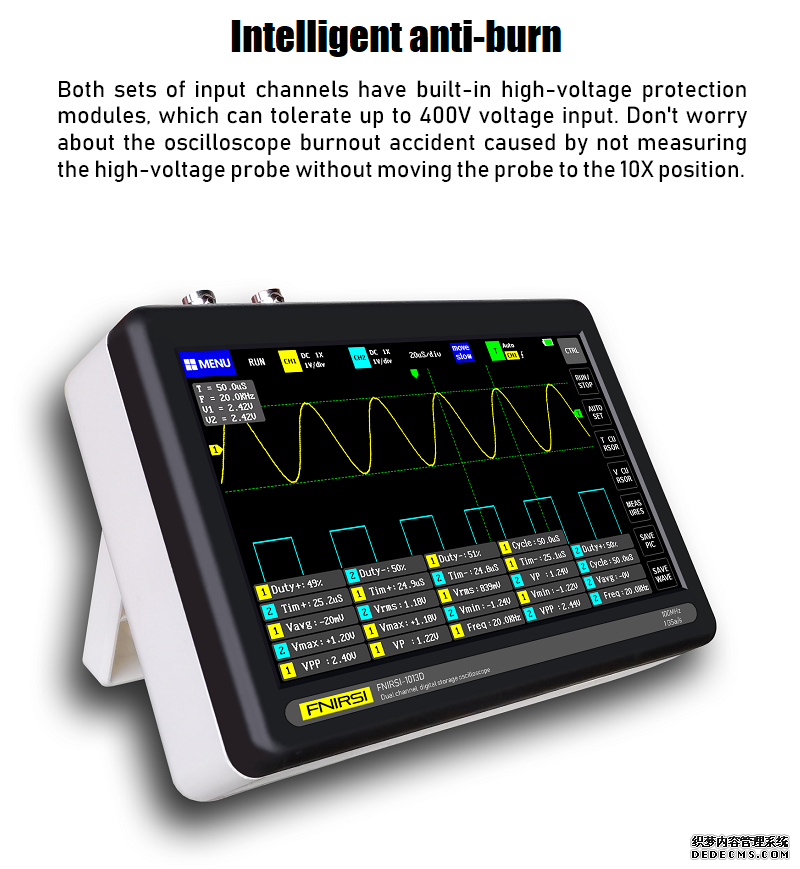

1:Intelligent anti-burn,1X Can withstand up to 400V withstand voltage
2:100MHz analog bandwidth @ 1GSa/s sampling rate(1X = 5MHz,10X = 100MHz)

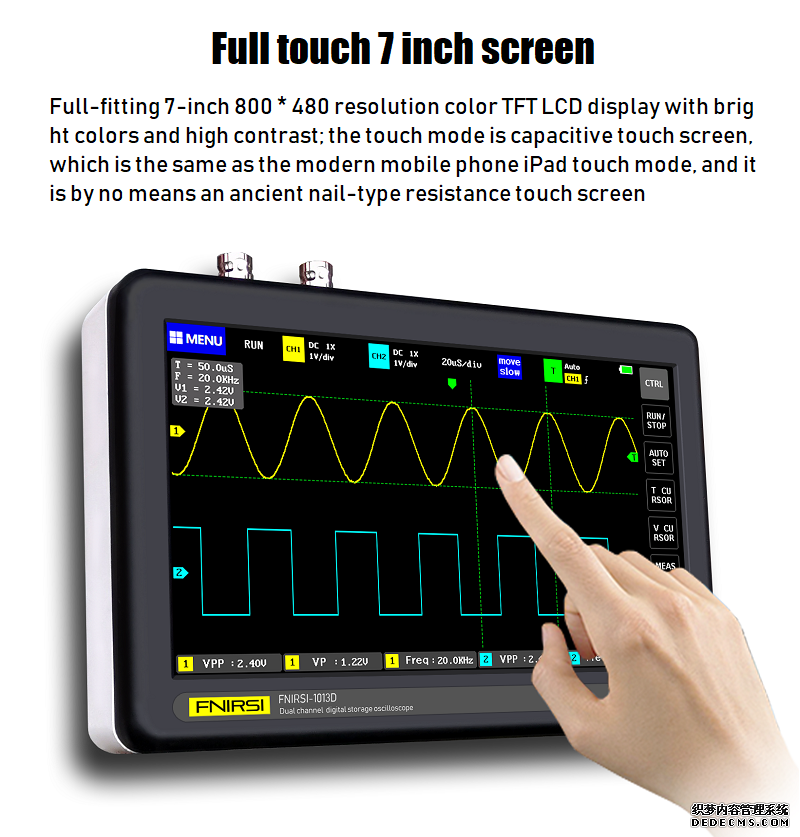

3:Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
4:Capacitive touch screen, the same as the touch mode of modern mobile ipad, is not a resistive touch screen with ancient nail operation
5:High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V,100X can measure 0 ~ 4000V
6:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Period
7:Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
8:Complete triggering function (single, normal, automatic)
9:At any time, the waveform display (pause function) is frozen
10:Equipped with high efficiency One-button AUTO
11:One-button waveform storage and screenshot
12:Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
13:Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
14:Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
15:Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
16:FFT display function, can analyze the spectral characteristics of the signal
17:Built in 6000mAh rechargeable lithium battery,Fully charged for 4 hours of continuous use at the highest screen brightness
18:Memory compression technology, waveform refresh screen does not flicker
19:Screen brightness adjustment

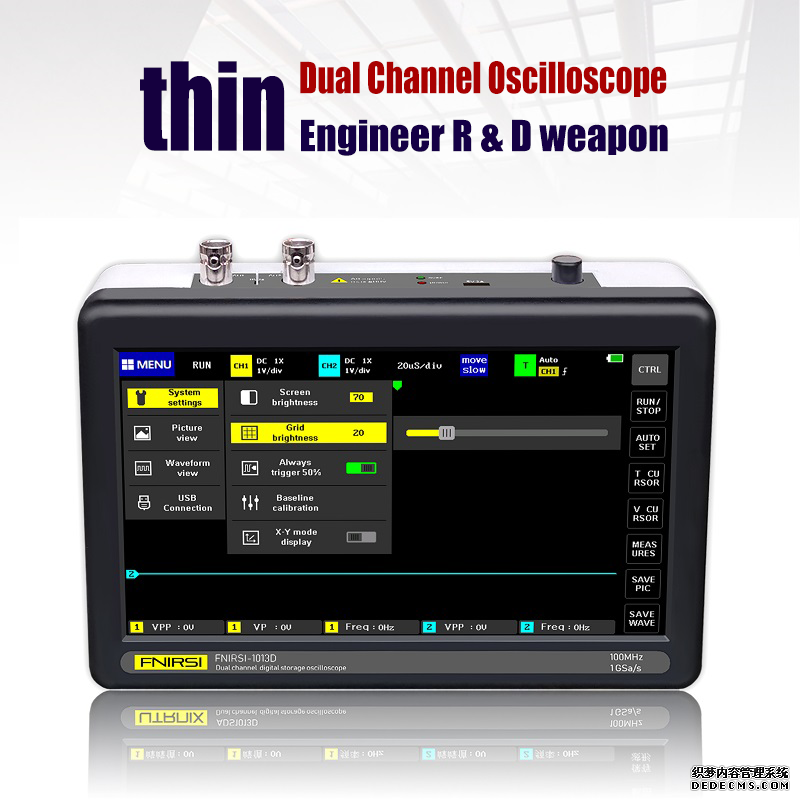

20:Background grid brightness adjustment
21:Ultra thin, easy to carry
1:Analog band width: 100MHz * 2
2:Number of channels:2 channels
3:Maximum real time sampling rate: 1GSa/s
4:Vertical sensitivity: 50 mV/div ~ 500 V/div
5:Horizontal time base range: 50S/div ~ 10nS/div
6:Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
7:Storage depth: 240Kbit
8:Input resistance: 1M
9:ADC precision: 8bits
10:Coupling mode: AC/DC
11:Trigger mode: Single, Normal, Auto
12:Trigger edge: Rising edge/Falling edge
13:External trigger voltage 0 – 40 V
14:Display: 7 inch - 800*480
15:Operating: Capacitive touch screen + gesture
16:Extension ports:USB picture export
17:Power supply: 6000 mAh lithium battery
18:Size: 184mm x 124mm x 50mm
19:Total weight:650g
Package includes:
1 x FNIRSI-1013D oscilloscope host
2 x Matching 100MHz probe(1X and 10X)
1 x 5V2A Charger(Include USB data line)
1 x User manual (English)
