FNIRSI WD-02 Metal Detector Wall Scanner Product Manual: https://www.mediafire.com/file/r7z5i2kuwrnox7l/FNIRSI_WD-02_user_manual.pdf/file

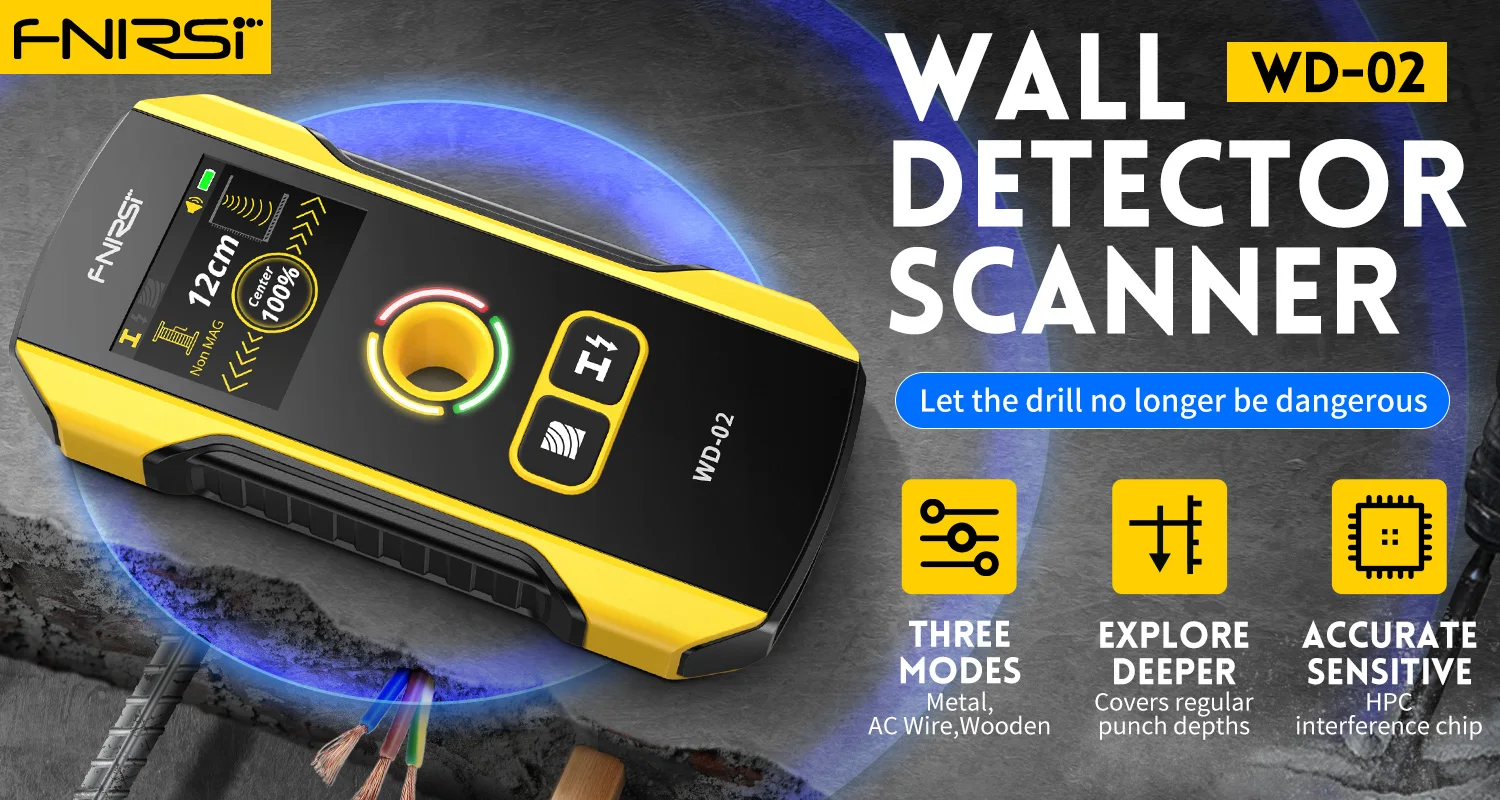

FNIRSI WD-02 Wall Detector is an upgraded version of WD-01, WD-02 has upgraded high-definition TFT display screen and new UI interface. Also added 6 languages: Russian, English, Portuguese, Japanese, Simplified Chinese, and Traditional Chinese. Its 3-level sensitivity adjustment makes the measurement accuracy higher. It can be used to detect steel bars, metal joists, metal pipes, wood, wires in walls, ceilings and floors. 3 detection modes are designed, metal detection mode, wood detection mode and AC detection mode to meet your different working needs. The brand-new positioning hole design is no longer afraid of drilling wires and steel bars. Widely used in interior decoration, home installation and other industries, so that various constructions can be carried out safely.
Features:
Portable Size: The small size of this tool is very convenient for everyday use, you can also easily hold it while using it.

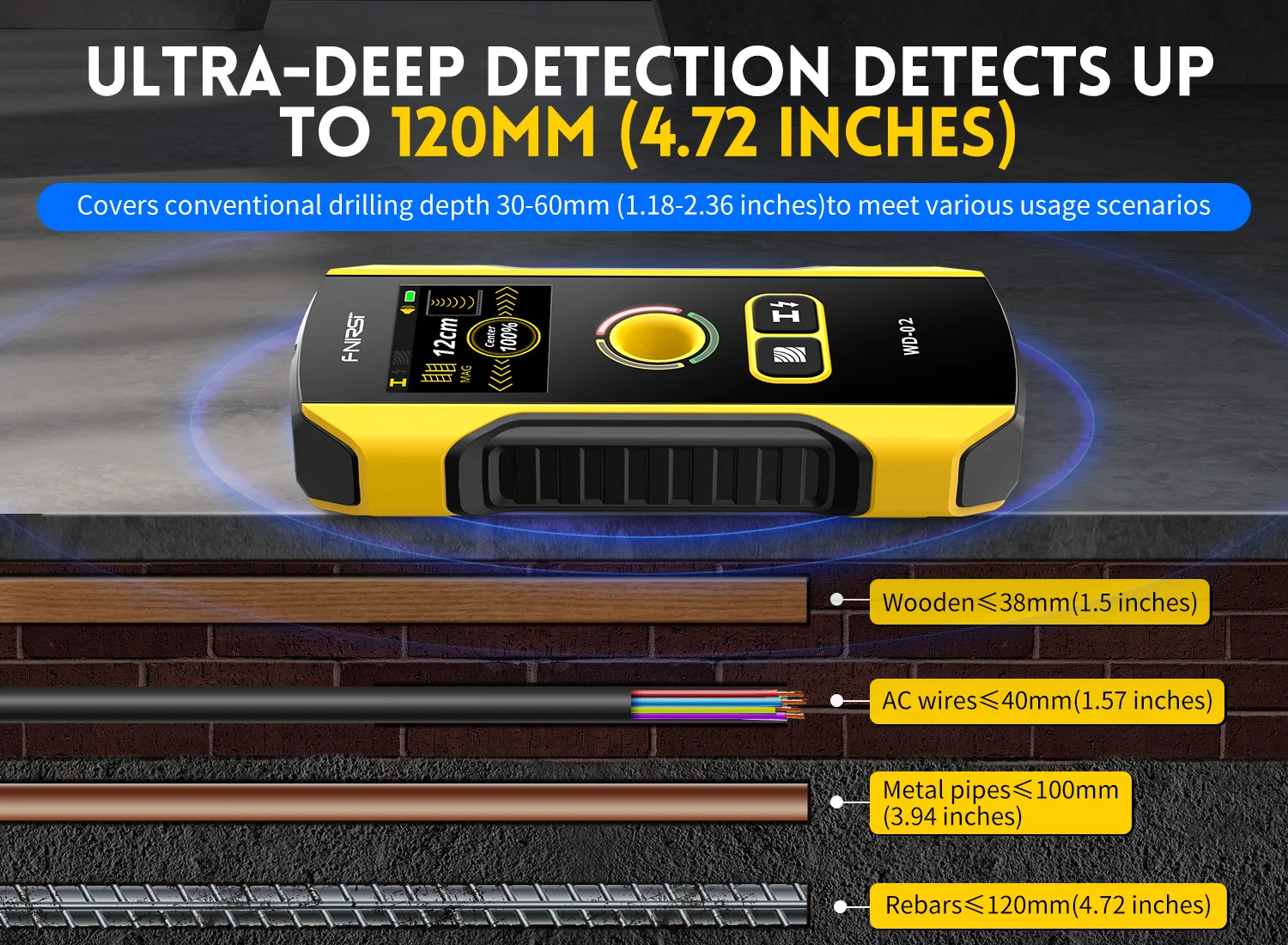

This wall detector scanner can help you to quick locate edges and center metal, studs, joists, pipes and live AC wire behind walls, floors and ceiling. The measuring ranges of wooden is ≤38mm, AC wires ≤50mm, metal pipes ≤100mm and rebars ≤120mm.
The HPC detection module can makes this wall detector scanner with better anti-interference capacity and fater calculating speed.

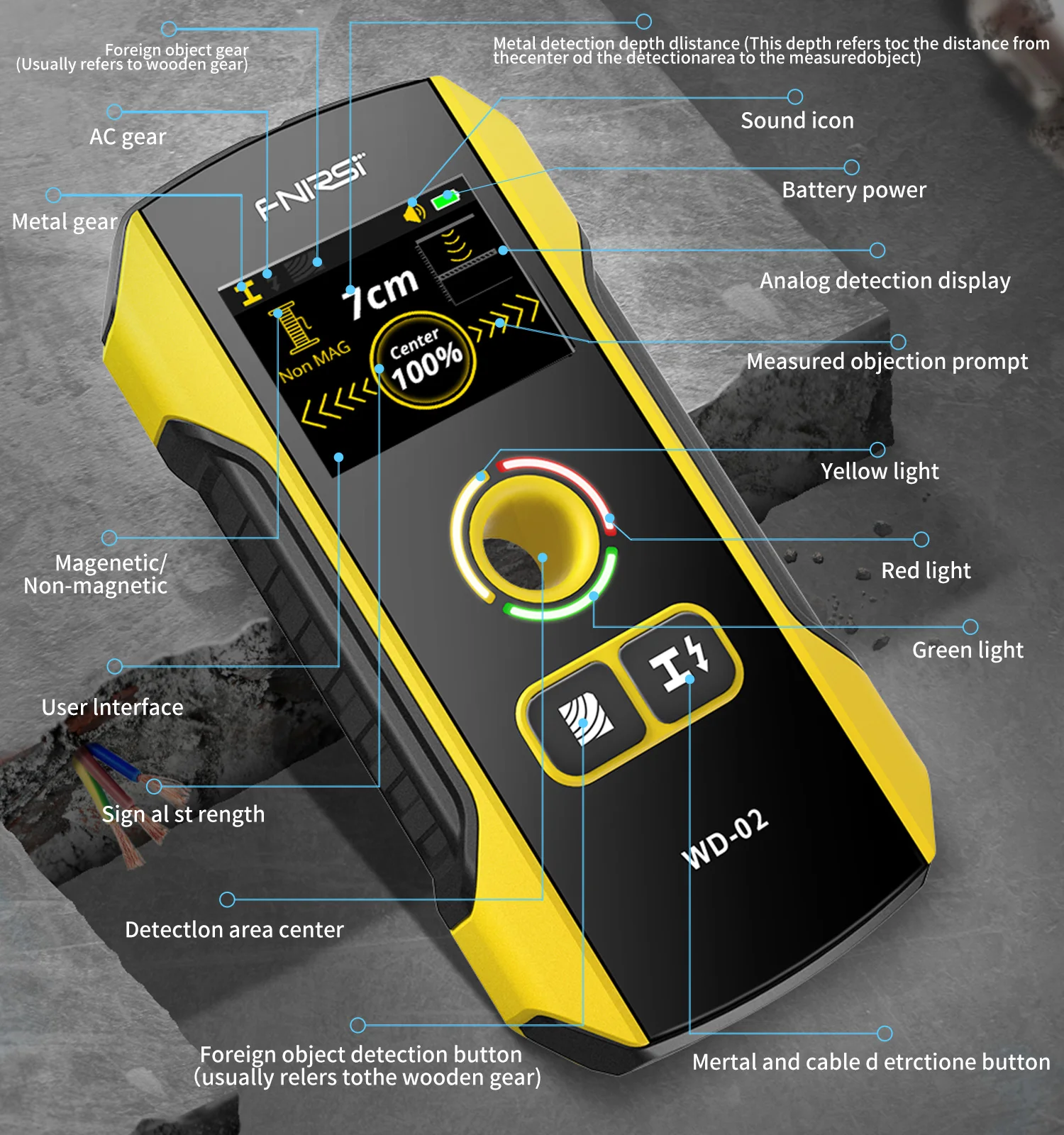

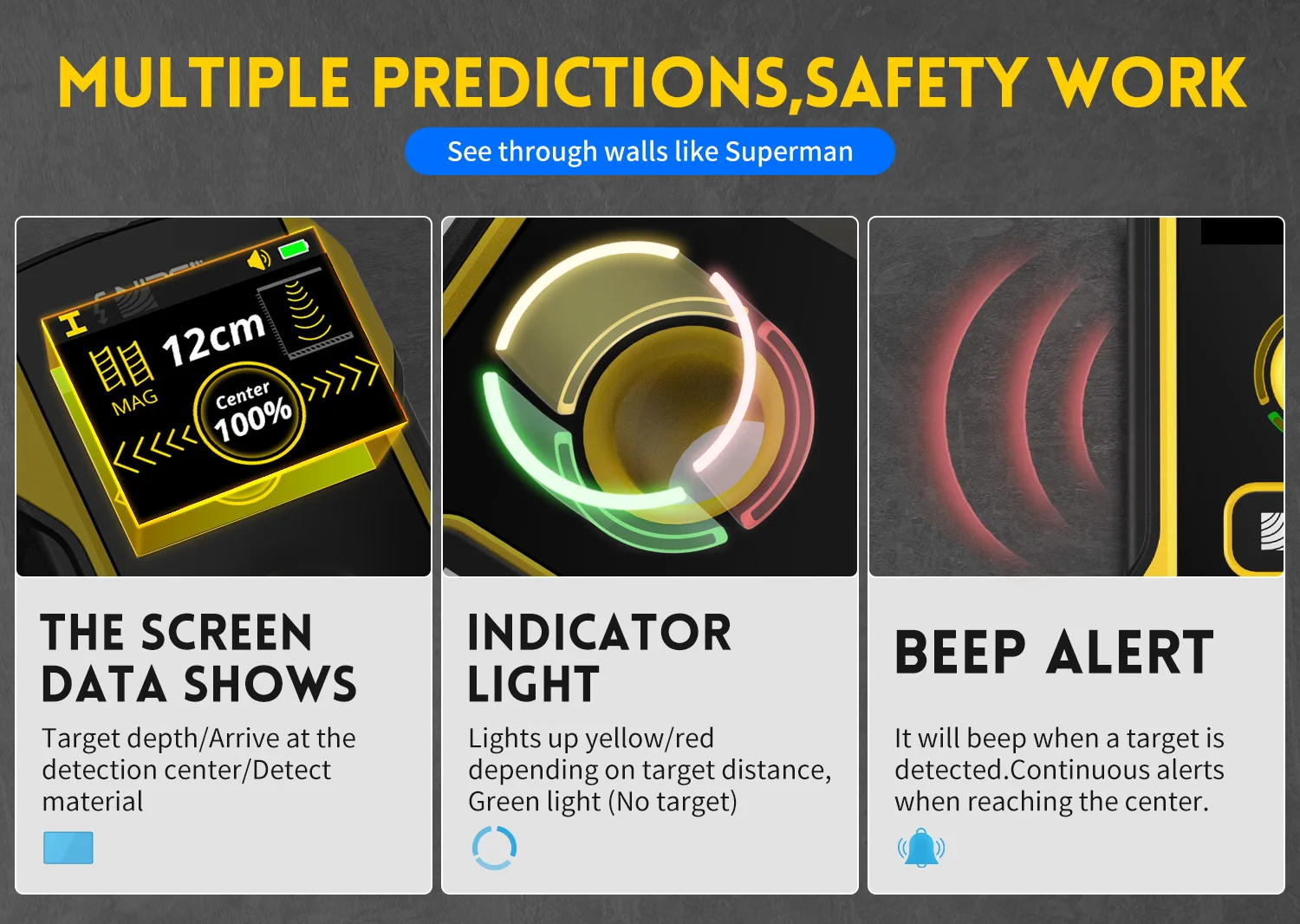

Multiple predictions: The screen will display the target depth, arrive at the detection center and the material, the indicator light will lights up yellow or red depending on the target distance, the green light means No traget.
It will also beep when a target is detected. It will continuous alerts when reaching the center.
Wide Applications: This tool can be widely used in your home decoration, wall decoration, household appliance installation, highway maintenance and so on.
Center positioning hole design, you can directly mark the drilling position after detection and achieve precisions drilling.
Specifications:

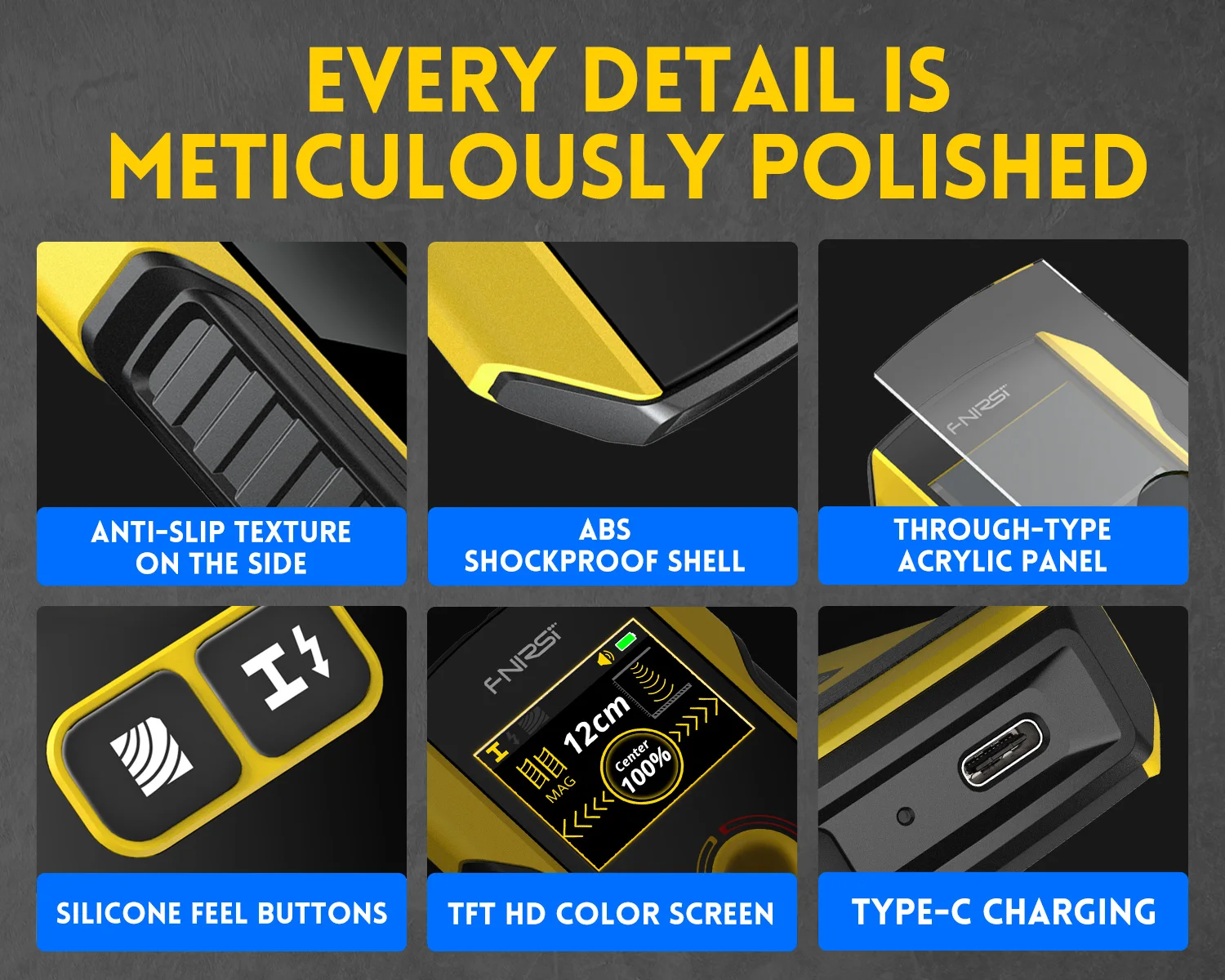

Material: ABS
Max. detection depth:
Metals: 120mm
Non-ferrous metals(copper): 100mm
AC wire: 50mm
Single-strand copper wire: 40mm
Wooden:38mm
Automatic shut down: ≈5min
Battery: 1 * lithium battery, 300mAh (included)
Dimensions：138*68*22mm
Packing list:
1 * WD-02 Wall Detector Scanner
1 * Manual
1 * Storage Bag
