Description:

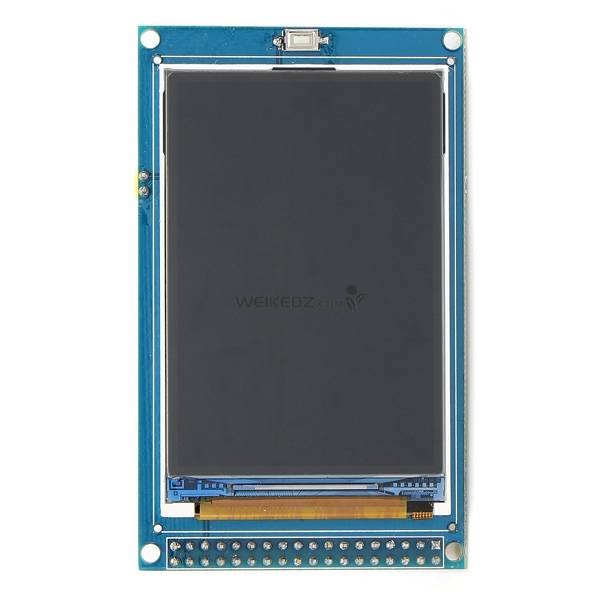

3.0 Inch TFT LCD with 262K color 480x 320 resolutions.The controller of this LCD module is HX8357C, it supports 16-wires DataBus interface.Moreover, this module includes the 5V-3.3V power conversion circuit and Level conversion circuit, This Module can Directly inserted into the Arduino Mega2560 Board ,it also includes the SD card socket and SPI FLASH circuit
Feature:
Support Arduino Mega2560 Directly inserted
With Full-angle IPS TFT panel
OnBorad level conversion chip for 5V/3.3V MCU
Compatible with 3.3/5V operation voltage level
Compatible with Arduino-Series development Board.
.(Please notice:This Screen is not touch screen)
Provided 12-examples with Arduino ,3-examples with STM32
With SD Card Socket
With SPI FLASH circuit
Parameter:
Display Type: 3.0 inch a-si TFT LCD Module
Glass Type: TFT IPS(Full-Angle)
Display Resolution: 480 X RGB X 320 Pixels
Back light: 6 chip HighLight white LEDs
Control IC: HX8357C
Interface: 16Bit parallel interface
PCB Module size: 89.92mm X 54.25mm
LCD Area(WxHxT): 50.74mm X 78.35mm X 1.88mm
Active Area(WxH): 67.68mm X 45.12mm
