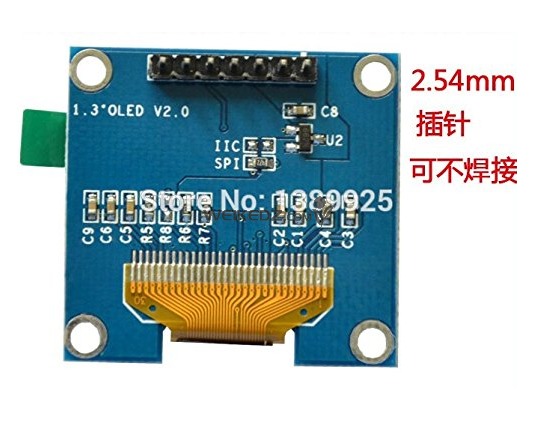

1.3 inch White OLED Module SSD1106 Drive IC


Characteristics
1 Don't need backlight, it can be self luminous
2 Resolution: 128*64 (like LCD12864, but this product is sharp more intensive)
3 Big visual angle: 160 degrees
4 Supports many control chip: fully compatible with 51 series, MSP430 series, STM32, CSR chip (a large number of routines available for reference)
5 Ultra low power consumption: 0.08W normal lighting full screen, full screen display Chinese characters 0.06W (far below TFT, LCD etc)
6 Driver chips: SSD1106 compatible with SSD1306
7 Wide voltage support: without any modification, direct support for 3V ~ 5V DC
8 working temperature: -30 ~70 degree
9 IO occupying less: using SPI or IIC communication mode, up to as long as 4 IO port can drive
10 No font: use modulus software to take the word
