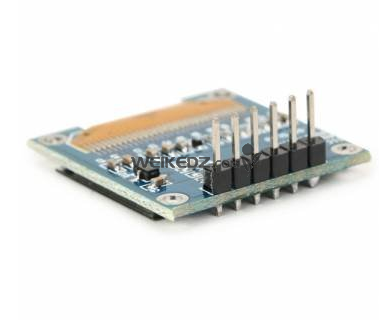

Interface: SPI GND: Power Gound VCC: 2.2V-5.5V SCL: CLK clock (High level 2.2V-5.5V) SDA: MOSI data (High level 2.2V-5.5V) RST: MOSI data (High level 2.2V-5.5V) D/C: Data/Command (High level 2.2V-5.5V)

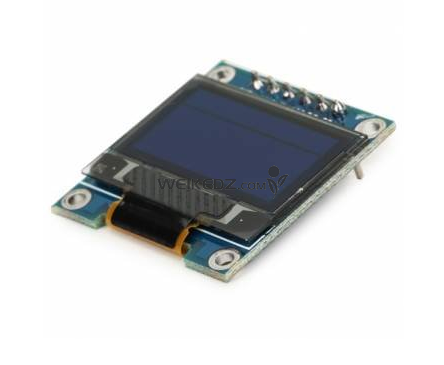

Feature: Color: Blue Resolution: 128x64 Power: 0.06W Wide power supply range: DC 3V-5V Temperature: -30°C to 70°C Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level OLED internal drive chip: SSD1306
