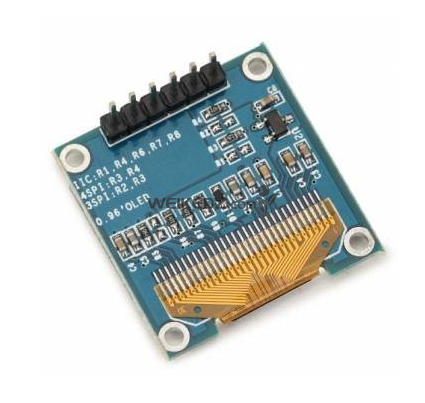

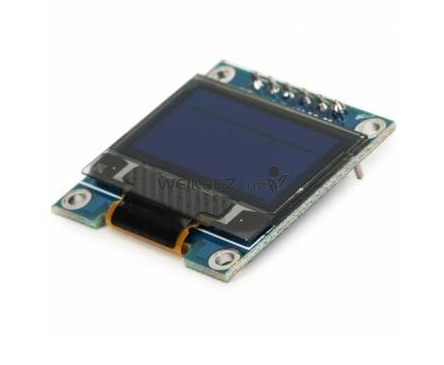

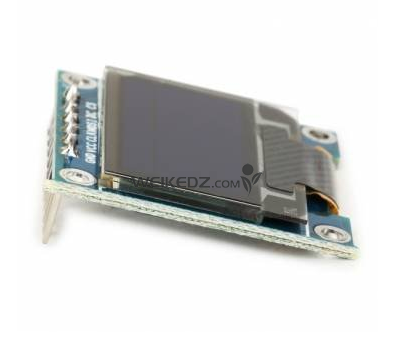

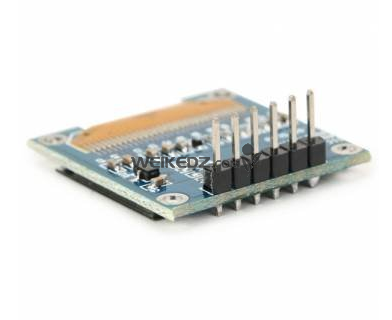

0.96 Inch Yellow Blue 6pin SPI OLED Display Module

    Weike Electronics is a professional manufacturer and exporter that is concerned with the design,
development production and marketing of arduino, 3d printers, raspberry pi and STM32.
Our Dream is to make the best price and best quality produce for customers.
So we would like to receive your valuable suggestions for our products and we can improve them for you.





Contact: Sophie

Phone: 13790385217

 Tel:0755-66803279

Email: sophie@weikedz.com

Add: No.1 Longguan Road, Longhua,Shenzhen,Guangdong,518000


Interface: SPI
GND: Power Gound
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)
RST: MOSI data (High level 2.2V-5.5V)
D/C: Data/Command (High level 2.2V-5.5V)

Feature:
Color: Blue and Yellow
Resolution: 128x64
Power: 0.06W
Wide power supply range: DC 3V-5V
Temperature: -30°C to 70°C
Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD1306
