4.with looping, jog playback, single-pass play function
5.available single-chip control

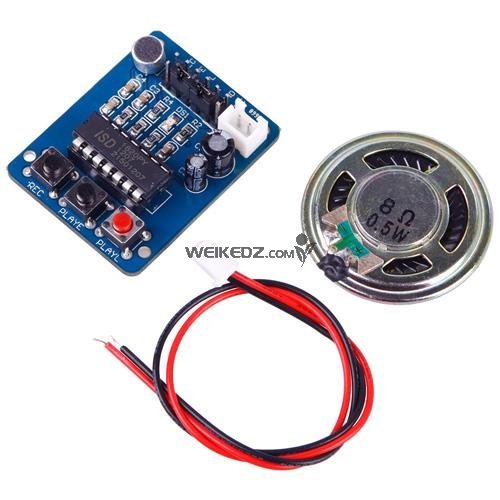

6.this module can directly drive a small speaker 8 ohm 0.5W
Power supply :3-5V, which can be accessed pin power;
Audio recording control mode: the key to control or microcontroller, IO has drawn the line of control;

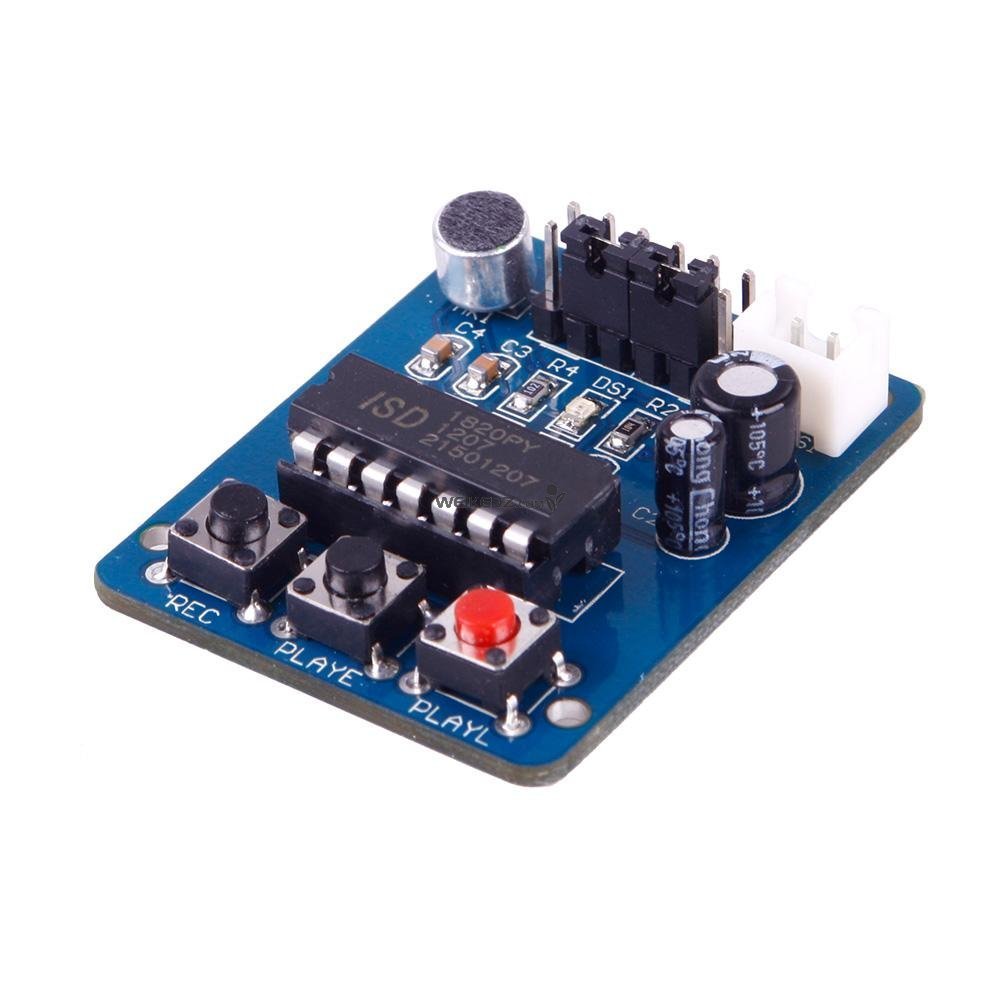

Buttons control audio recording method of operation:
REC button: record button, you can press and hold the recording, release the button to stop recording;
RLAYE key: trigger mode playback, press will play this whole speech;
PLAYL key: jog mode playback, press and hold until playback, release to stop playback;
RPL Jumper: loop mode control, loop playback;
FT Jumper: direct control, microphone voice through the speaker can playback;
