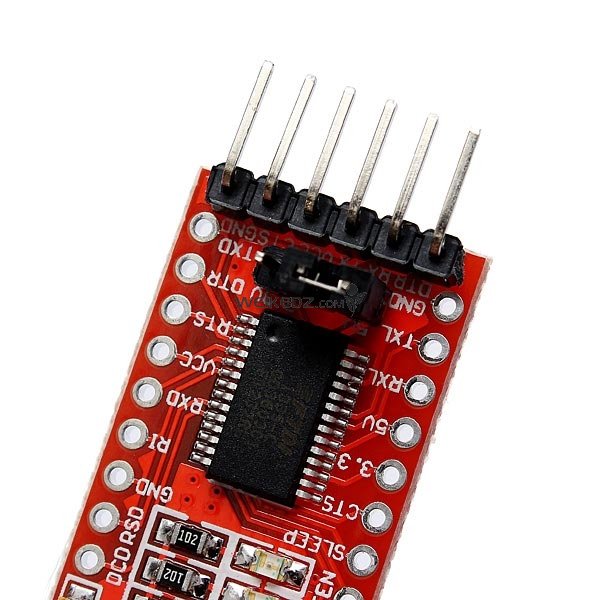

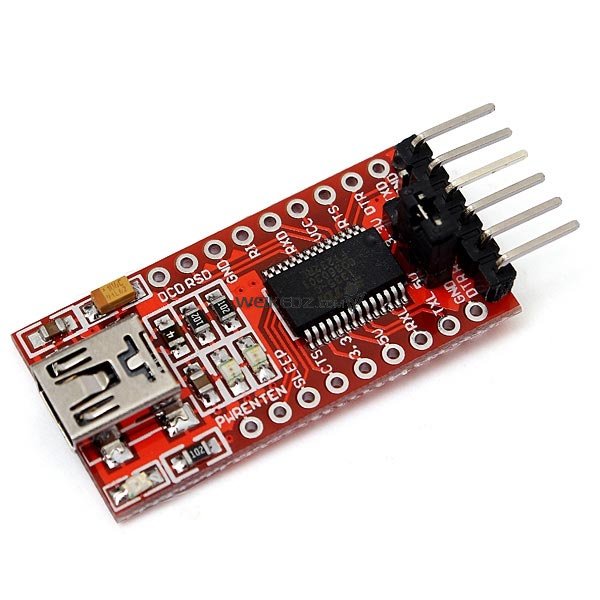

FT232RL FTDI USB To TTL Serial Converter Adapter Module
$
Weike Electronics is a professional manufacturer and exporter that is concerned with the design, development production and marketing of arduino, 3d printers, raspberry pi and STM32. Our Dream is to make the best price and best quality produce for customers. So we would like to receive your valuable suggestions for our products and we can improve them for you.
Feature:
Chip: FT232RL
Draw out all signal port of FT232RL chip
RXD / TXD transceiver communication indicator
USB power supply, can choose 5V or 3.3V, set by jumper
With over current protection, using 500mA self-restore fuse
Pin definition: DTR, RXD, TX, VCC, CTS, GND
Pitch: 2.54mm

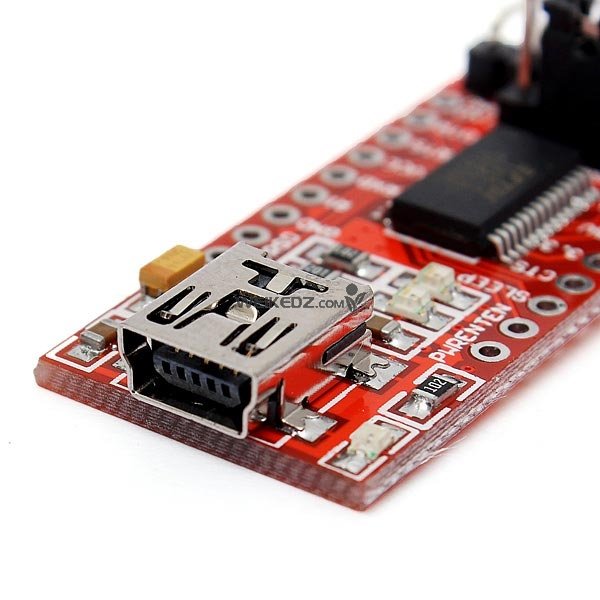

Size: 36 x 18mm (L x W) Interface: Mini USB
Note: This chip is not orignal, do not have EEPROM, can not invert the signals.
