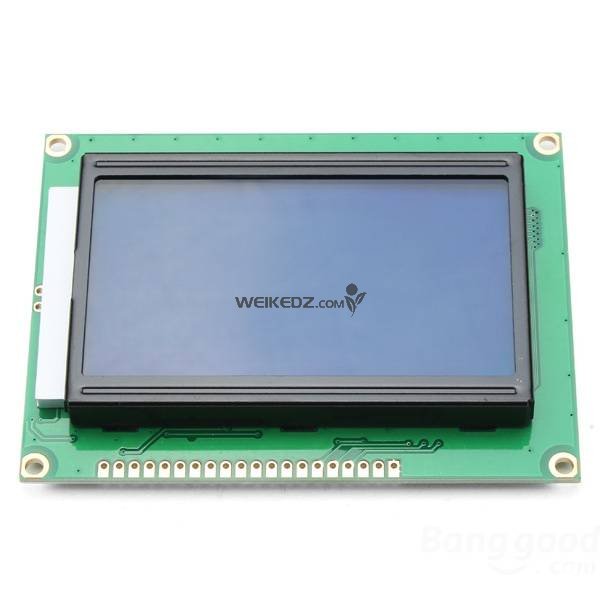

12864 128 x 64 Graphic Symbol Font LCD Display Module Blue B
$
Weike Electronics is a professional manufacturer and exporter that is concerned with the design, development production and marketing of arduino, 3d printers, raspberry pi and STM32. Our Dream is to make the best price and best quality produce for customers. So we would like to receive your valuable suggestions for our products and we can improve them for you.
Feature: With this 128 x 64 LCD Display Module, you can customize graphics, symbols, fonts by yourself. Automatic power-on reset Interface definition: PIN1: VSS PIN2: VDD PIN3 / PIN17: Adjustment of Contrast PIN4 ~ PIN6: RS, R / W, E PIN7 ~ PIN14: D0 ~ D7 PIN15: Serial / Parallel PIN16: NULL PIN18: Positive Backlight PIN19: Negative Backlight
Specification: VDD: ±3.0V ~ 5.5V Clock rate: 2MHz LCD type: blue(we have the yellow green one which SKU number is SKU117333) Resolution: 128 x 64 Viewing angle: 6 O-Clock Operating temperature: -20°C ~ +70°C Storage temperature: -30°C ~ +80°C View area: 70.0 x 38.8mm (L x W) Dots size: 0.48 x 0.48mm (L x W) Dots pitch: 0.52 x 0.52mm (L x W) Size: 93.0 x 70.0 x 13.50mm (L x W x H)
Application: Widely used in the punch card machines, Bus card machines, UnionPay machines, etc. more used in industrial equipment
