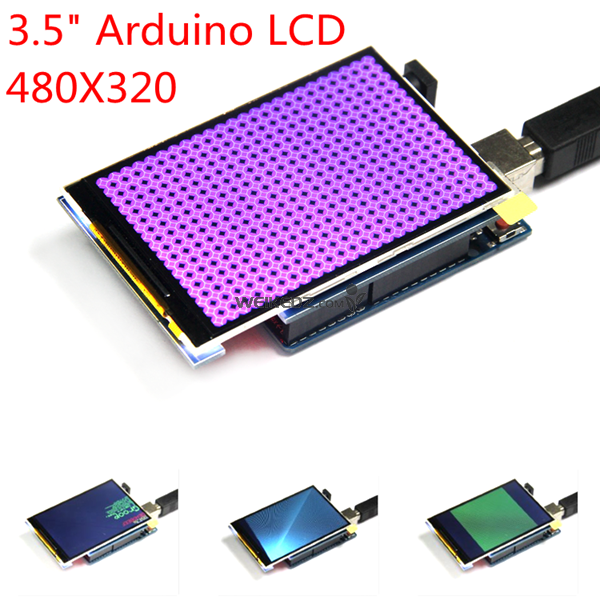

Description:
Support Arduino UNO and Arduino Mega2560 and other development board DIP, Without any wiring, all open source, Arduino libraries offer
The backlight always on, can not control the backlight, backlight is connect to 3.3V
DC: 5V
Note:
The control and driving circuit of TFT modules is low voltage and FRIDA micro-power CMOS circuit, can be easily damaged by static, static damage is an irreparable damage, and sometimes human have hundreds of volts of high voltage static electricity, therefore, in handling, assembling and use should be extremely careful to prevent static electricity:
1. Using soldering iron or power FRIDA tools must be well grounded and operation, make them without leakage;
2. Do not use hand to touch the leads, circuit boards and metal boxes;
3. Do not use a vacuum cleaner for cleaning, because it generates strong static electricity;
4.when the air is dry, can also generate static electricity, therefore, workshop humidity shall be above RH60%;
5. If it is necessary to direct contact it , should enable the human body in the same potential with the modules ,ormake human body be well grounded;
6. remove or back in the bags or move locations, also need to be careful to prevent static electricity. Don't replace or discard the original packing.
