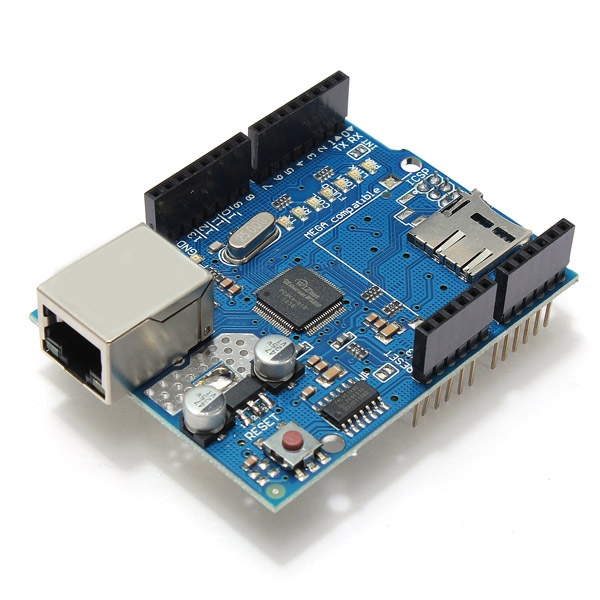

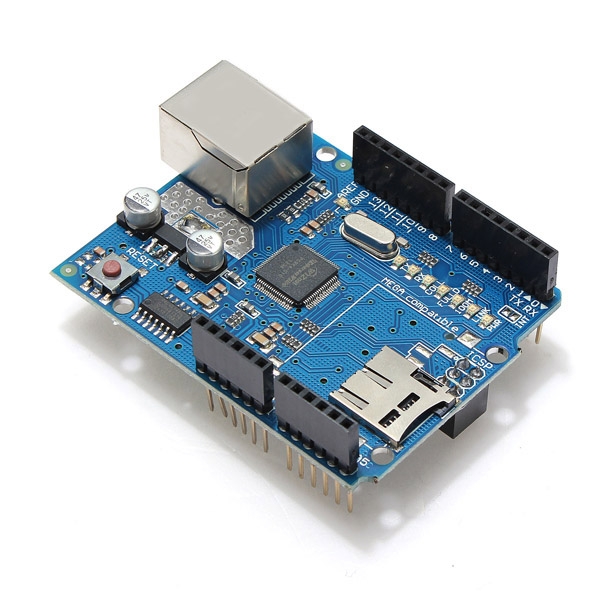

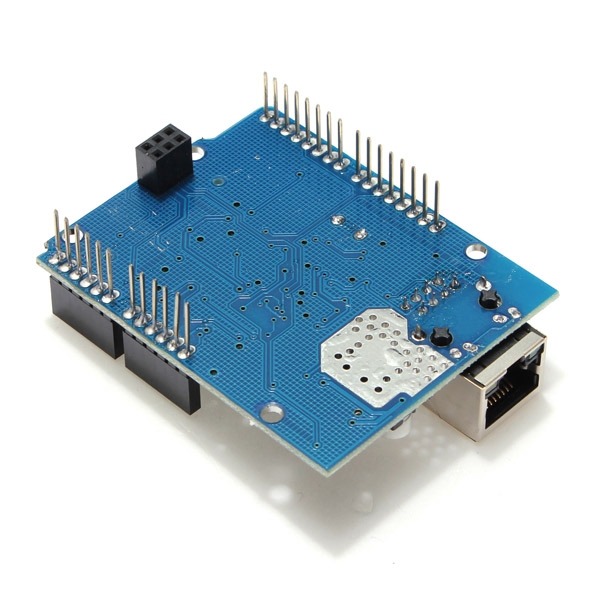

Ethernet Shield Module W5100 Micro SD Card Slot For Arduino
$
Weike Electronics is a professional manufacturer and exporter that is concerned with the design, development production and marketing of arduino, 3d printers, raspberry pi and STM32. Our Dream is to make the best price and best quality produce for customers. So we would like to receive your valuable suggestions for our products and we can improve them for you.
Description: With this Ethernet Shield, your Arduino board can be used to connect to internet. Can be used as server or client. Directly plug puzzle board, no soldering required. This is the latest version of the ethernet shield. Fits all version of Arduino main board, 2009, UNO, mega 1280, mega 2560. This Arduino Ethernet Shield which is based on the Wiznet W5100 ethernet chip gives you an easy way to get your Arduino online.
Specification:
Controller: w5100
Size: 7.4 x 5.4 x 2.4 (2.91 x 2.12 x 0.94inch)
MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED }
Feature: It is directly supported by Arduino official Ethernet Library. It adds a micro-SD card slot, which can be used to store files for serving over the network. It is compatible with the Arduino Duemilanove (168 or 328), UNO as well as Mega (1280/2560) and can be accessed using the SD library. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield.
