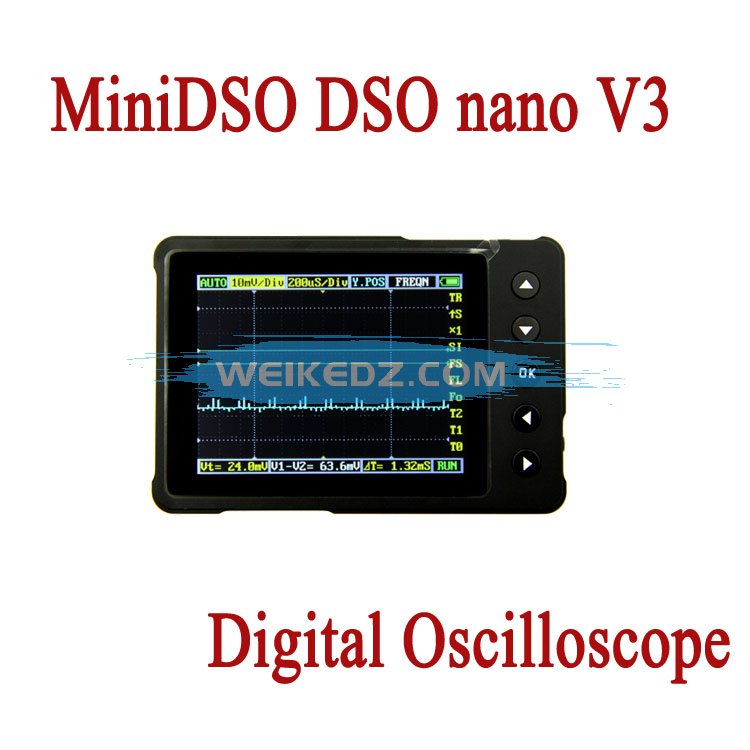

MiniDSO DSO Nano V3 Digital Osciloscopio USB 200KHz Analog Handheld Portable Pocket Oscilloscope lcd Logic Analyzer Multimeter
The DSO Nano V3 is a pocket-size compatible 32bit digital storage oscilloscope. Based on ARM -M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering.
This is a updated and cool version of DSO Nano which features a firmware and a embedded 2 Mbyte storage chip instead of micro SD card slot. The documents of this version in detail is on this page, please refer to it.
NOTE?For DSO Nano with SD card slot, it is not available now.
Updates in v3:
V3 used a new firmware with user-friendly interface, easier to operate.
Upgraded firmware via virtual disk.
Added build-in 2Mbyte storage chip instead of micro SD card slot.

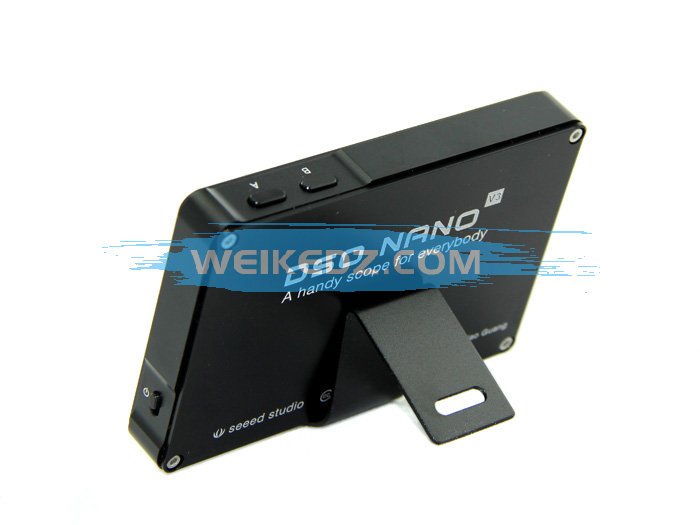

Black metal shell.
Features:
Portable and lightweight.
Color display.
Waveform storage and playback.
6 triggering modes.
200Khz Analog Bandwidth.
Complete measurement markers and signal characteristics.
Built-in Signal Generator.
Accessories available.
Open Source.
Specifications:
Display: 2.8" Color TFT LCD
Display Resolution: 320*240 Display Colors 65K
Analog Broadband: 0 ~ 200kHz
Max. Sampling Rate: 1Msps 12Bit
Sampling Storage Depth: 4096 Points
Transverse Sensitivity: 1uS/Div~10S/Div(1-2-5 stepping)
Vertical Sensitivity: 10mv/Div~10V/Div(x1 probe) 0.5V/Div~10V/Div(x10 probe)
Input Resistance: >500K?
Max. Input Voltage: 80Vpp?x1 probe?400Vpp(x10 probe)
Coupling Mode: DC
Triggering Mode: Auto?Normal?Single?None
Auto Measurement: Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor; Rising/Falling Edge Trigger; Triggering Cursor; Triggering Sensitivity Cursor; Hold/Run
Inbuilt Test Signal: 10Hz~1MHz(1-2-5 stepping)
Waveform Storage: build-in 2Mbyte
PC Connection Interface: Connection through USB
Recharging Method: Recharging through USB Interface
Dimension: 90 * 60 * 12mm / 3.54 * 2.36 * 0.47in (L * W * H)
Item Weight: 100g / 3.53oz
Package Size: 15 * 10 * 3.5cm / 5.9 * 3.94 * 1.38in (L * W * H)
Package Weight: 181g / 6.39oz

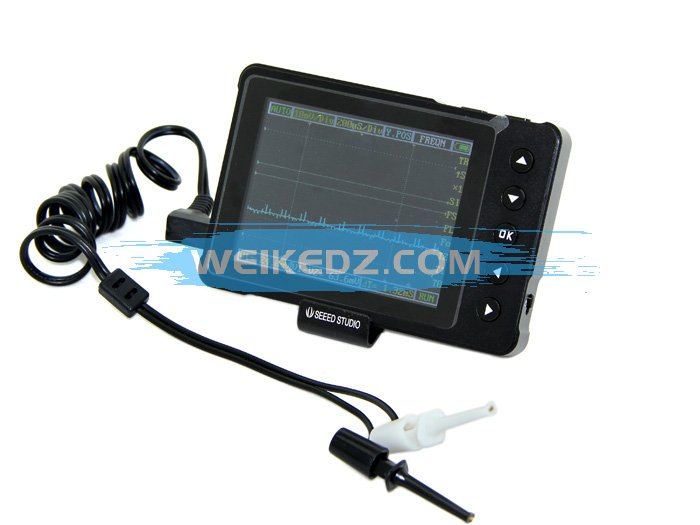

Package List:
1 * DSO Nano V3 Oscilloscope
1 * PU Case
1 * Stand
1 * Screwdriver
2 * Cable
