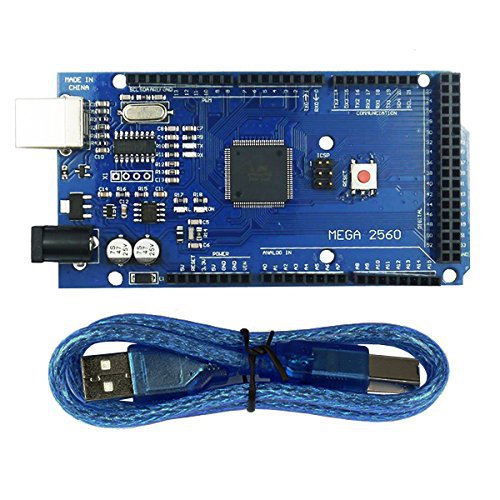

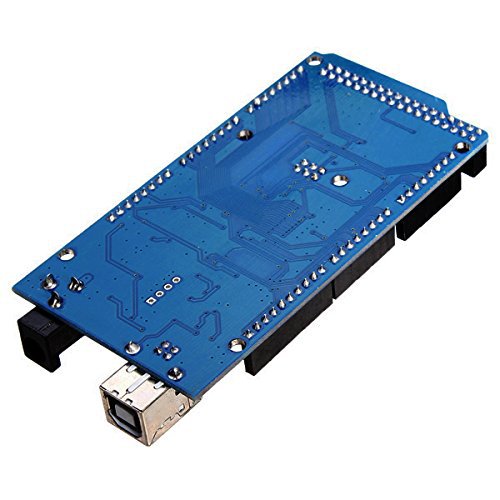

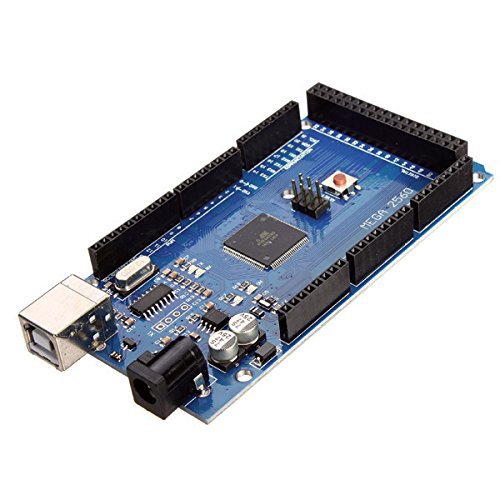

Mega 2560 R3 Mega2560 REV3 ATmega2560-16AU Board + USB Cable


The Mega 2560 is an update for the Arduino Mega, which it replaces.The board is a microcontroller board based on the ATmega2560-16AU. It  has 54 digital input/output pins (of which 14 can be used as PWM  outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz  crystal oscillator, a USB connection, a power jack, an ICSP header, and  a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or  power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila.


Specification:

  • Microcontroller:ATmega2560
  • Clock Speed:16 MHz
  • EEPROM:4 KB
  • SRAM:8 KB
  • Flash Memory:256 KB of which 8 KB used by bootloader
  • Operating Voltage:5V
  • Input Voltage (recommended):7-12V
  • Analog Input Pins:16
  • Digital I/O Pins:54 (of which 14 provide PWM output)
  • DC Current for 3.3V Pin:50 mA
  • DC Current per I/O Pin:40 mA
  • Size:100*55mm
