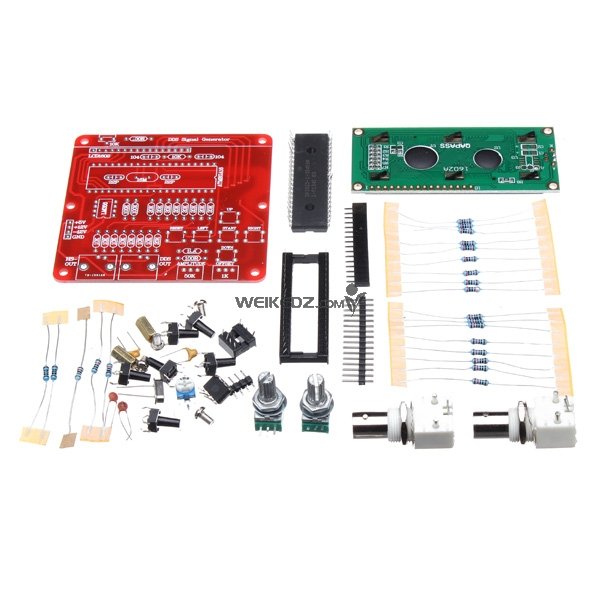

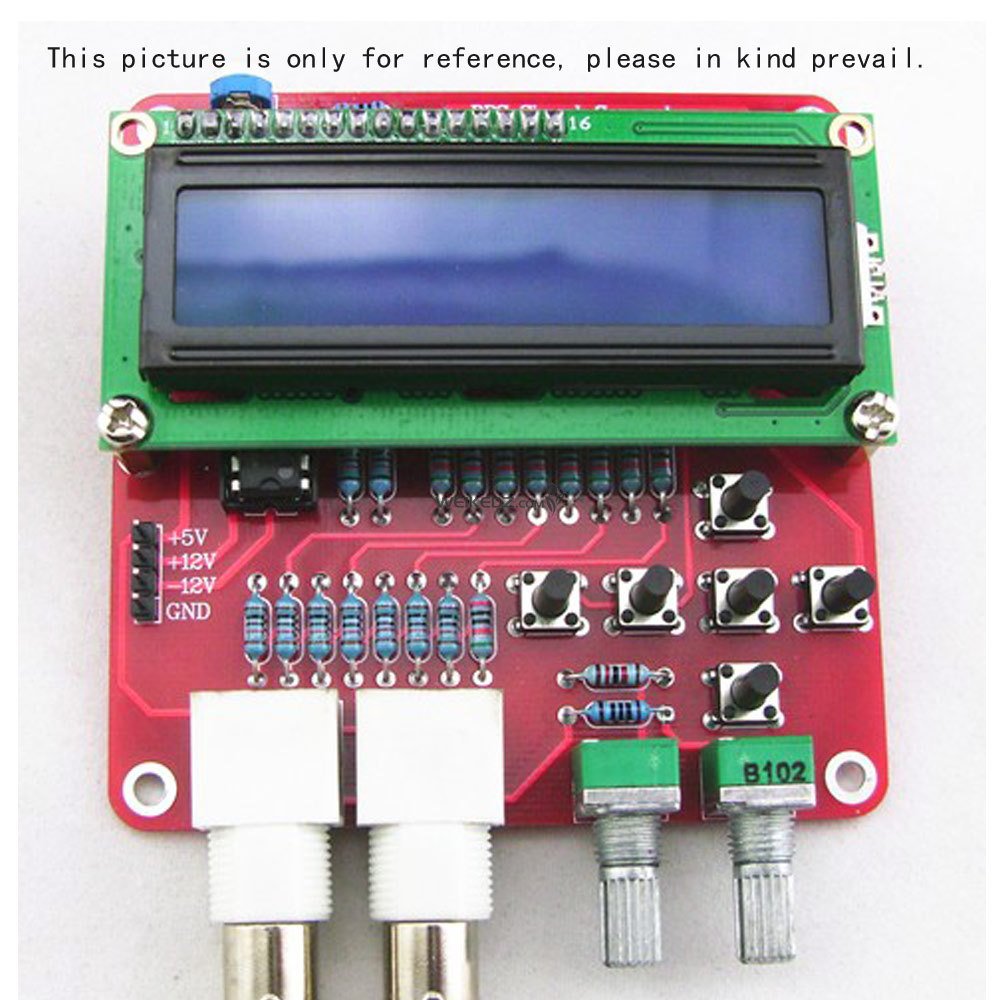

DDS Function Signal Generator Module DIY Kit Pulse Sine Wave

    Weike Electronics is a professional manufacturer and exporter that is concerned with the design,
development production and marketing of arduino, 3d printers, raspberry pi and STM32.
Our Dream is to make the best price and best quality produce for customers.
So we would like to receive your valuable suggestions for our products and we can improve them for you.

Contact: Sophie

Phone: 13790385217


Email: sophie@weikedz.com

Add: No.1 Longguan Road, Longhua,Shenzhen,Guangdong,518000


Delicated high speed (HS) signal output up to 8MHz
DDS signal with variable amplitude and offset
DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise
2 x 16 LCD menu, intuitive 5 button keypad
Frequency adjusting steps: 1, 10, 1000, 10000MHz
Restoring last configuration after power up
Has two outputs-one for DDS signal and another for high speed aquare signal
Material: PCB + Electronic Components
Power Supply: +5V / +12V / -12V
Menu Displey: 2 x 16 LCD
HS Signal Frequency: 1, 2, 4, 8MHz
Red Board Size: 8 x 8cm / 3.15 x 3.15in (L * W)
Screen Size: 6.5 x 1.5cm / 2.6 x 0.6in (L * W)
