Description:

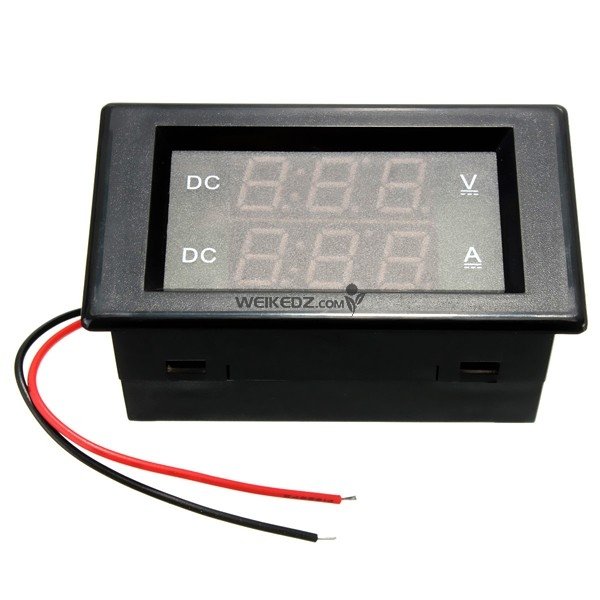

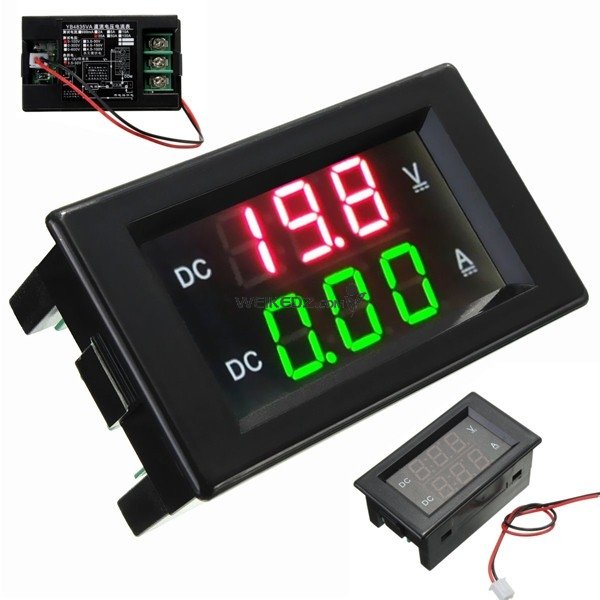

YB4835VA 0~100V 20A Double Display Voltmeter Current Meter Digital LED
Features:
The double table small size, can simultaneously, with the screen display voltage, current.
A total of design, which is a measure of the ends of the earth wire and the power supply end of the ground is interlinked, so the header only on the "negative" test current.
Equipped with voltage calibration potentiometer, current calibration potentiometer, such as error, can be their own calibration.
Automatic design of decimal point.
Use of "all the shell" design, with the back cover, safe and reliable, dust.
Anti disturbance ability, display refresh rate.

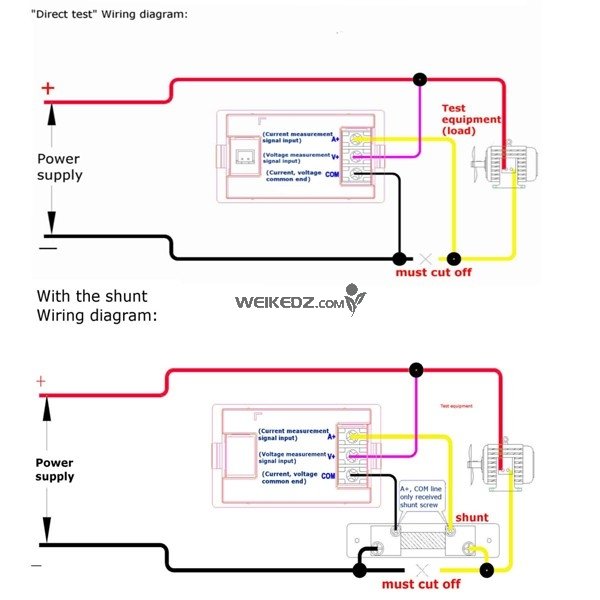

Convenient wiring, wide use, can be used to monitor the battery, DC can adjust the power, or other equipment, voltage, current changes state
With exquisite SMT process, so the consistency is very good.
Specifications:
Test voltage: 0-100V
Power supply: 3.5-30V
Test current: 20A
Working current: <20mA

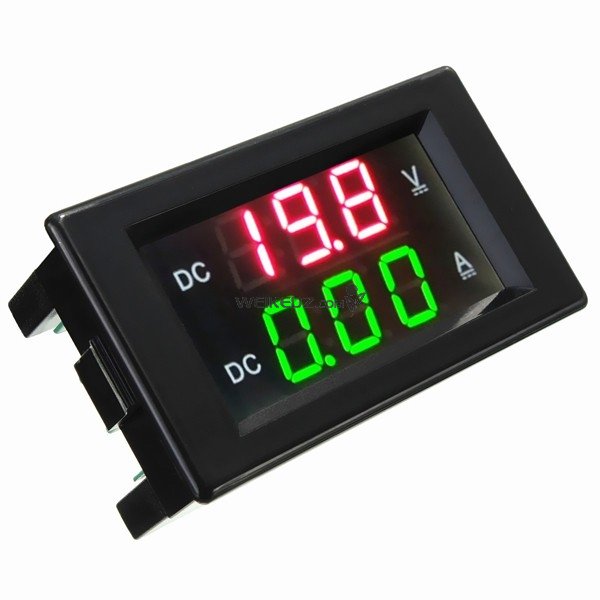

Display mode: 0.39 "LED, voltage - red, current - Green
Dimensions: 70 x 40 x 30 mm
Mounting hole: 68 x 38 mm
The measurement rate: more than 500mS/ times
Measurement accuracy: 1% (1 words)
Working temperature: -10 ~ +65
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
No direct exposure to sunlight.
Package include:
1 x Double Display Voltmeter Current Meter
