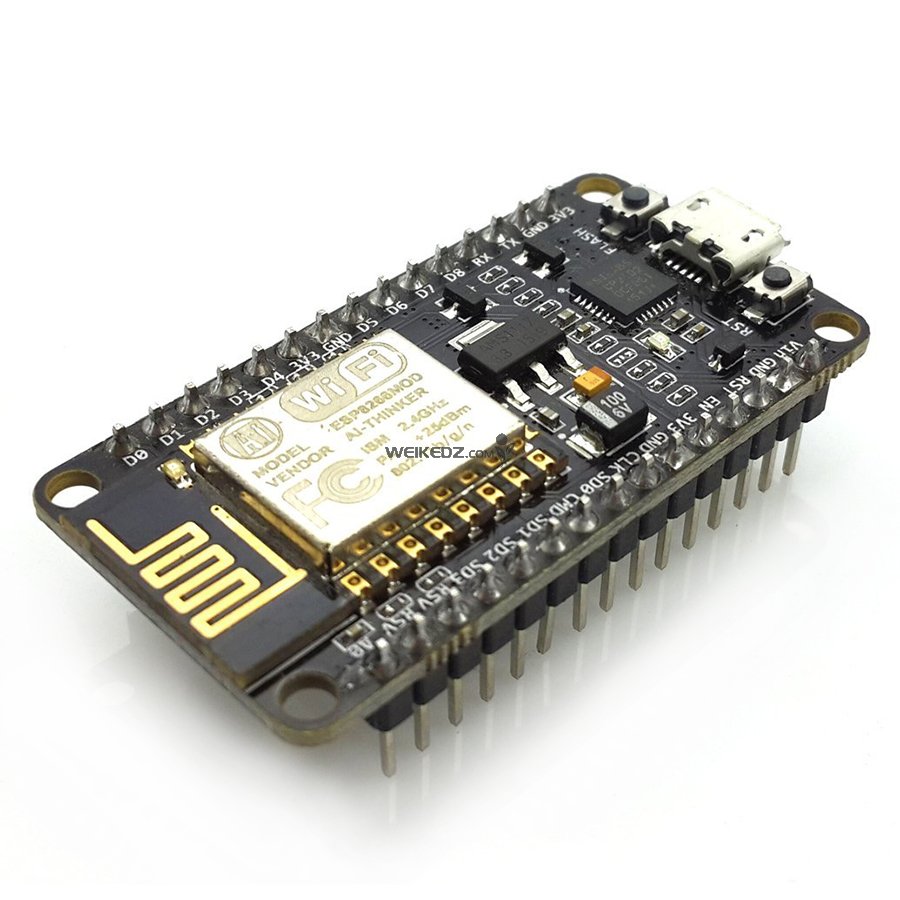

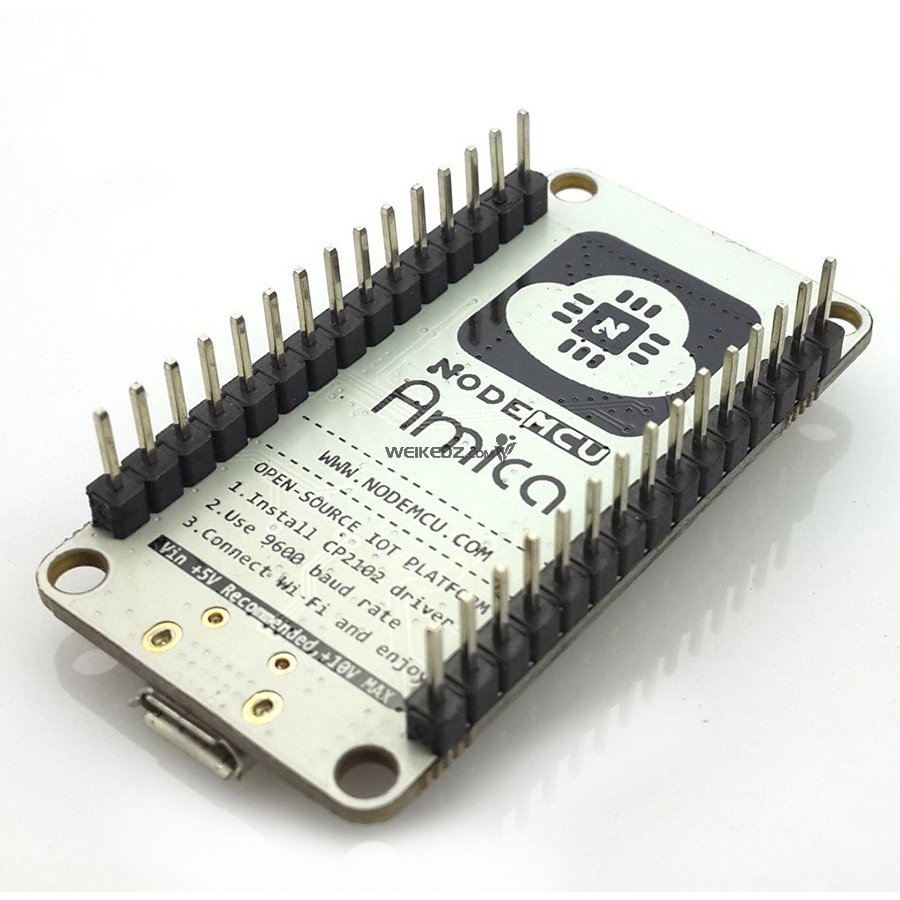

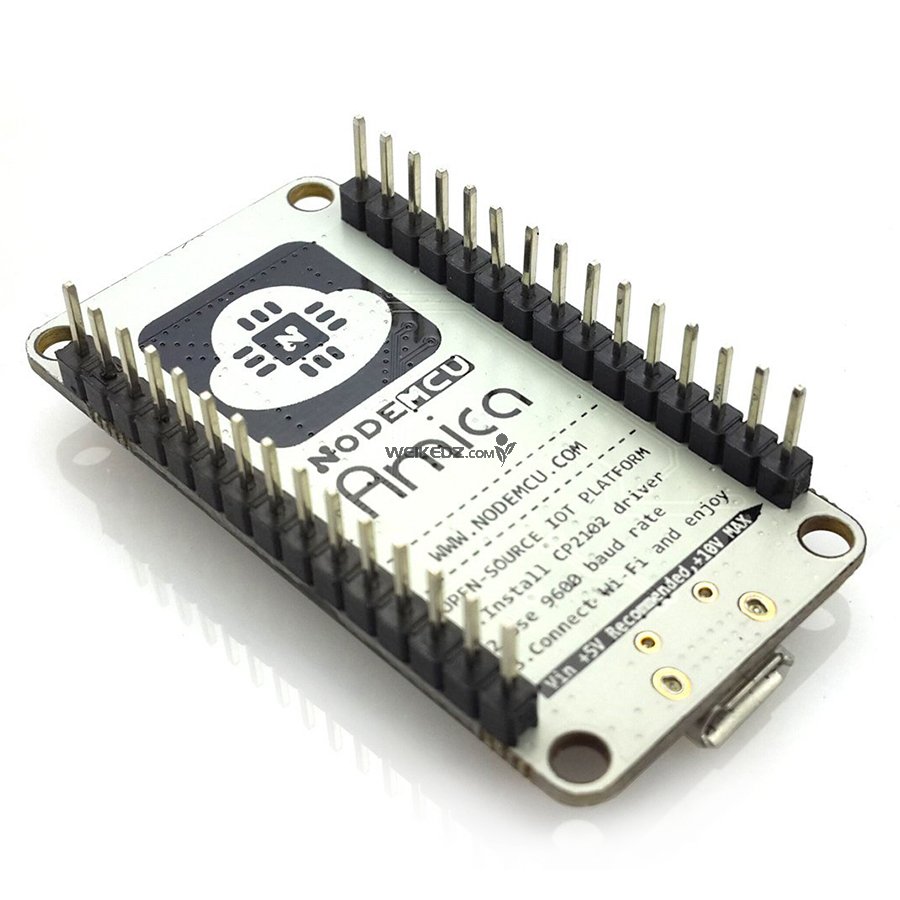

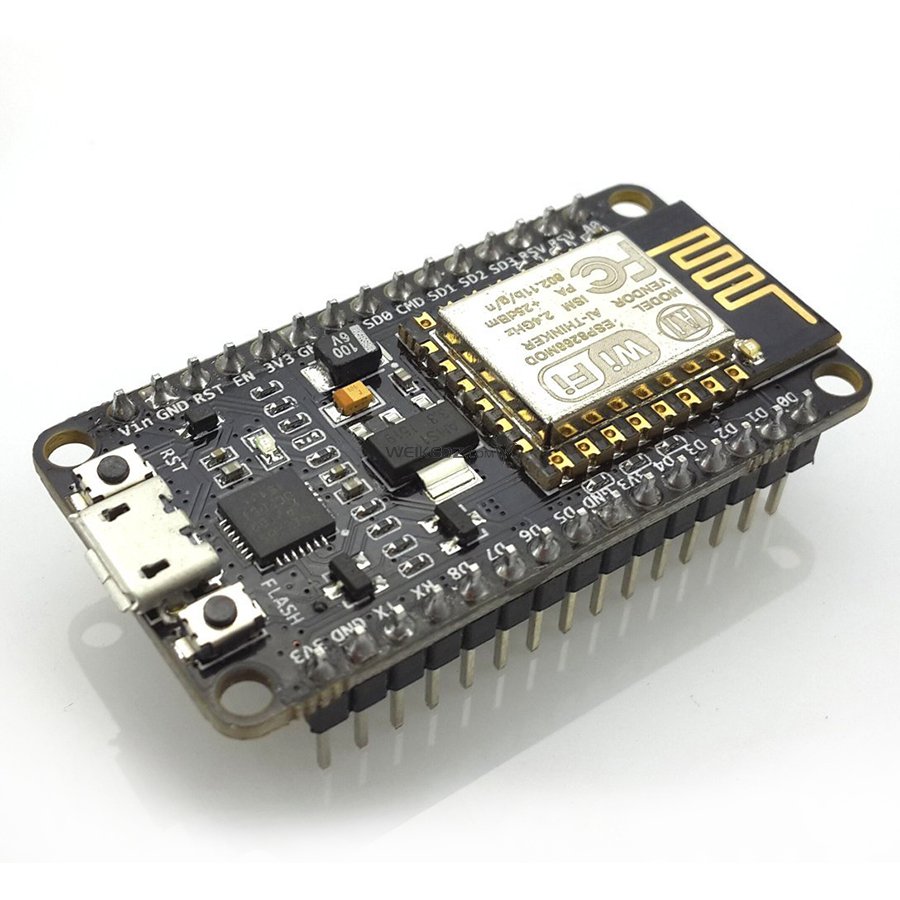

NodeMCU board ESP8266 WiFi module

    Weike Electronics is a professional manufacturer and exporter that is concerned with the design,
development production and marketing of arduino, 3d printers, raspberry pi and STM32.
Our Dream is to make the best price and best quality produce for customers.
So we would like to receive your valuable suggestions for our products and we can improve them for you.





Contact: Sophie

Phone: 13790385217

 Tel:0755-66803279

Email: sophie@weikedz.com

Add: No.1 Longguan Road, Longhua,Shenzhen,Guangdong,518000



Feature:
Wireless 802.11 b / g / n standard
Support STA / AP / STA + AP three operating modes
Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
AD0: 1 channel ADC
Power input: 4.5V ~ 9V (10VMAX), USB-powered
Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
Transfer rate: 110-460800bps
Support UART / GPIO data communication interface
Remote firmware upgrade (OTA)
Support Smart Link Smart Networking
Working temperature: -40 ℃ ~ + 125 ℃
Drive Type: Dual high-power H-bridge driver
