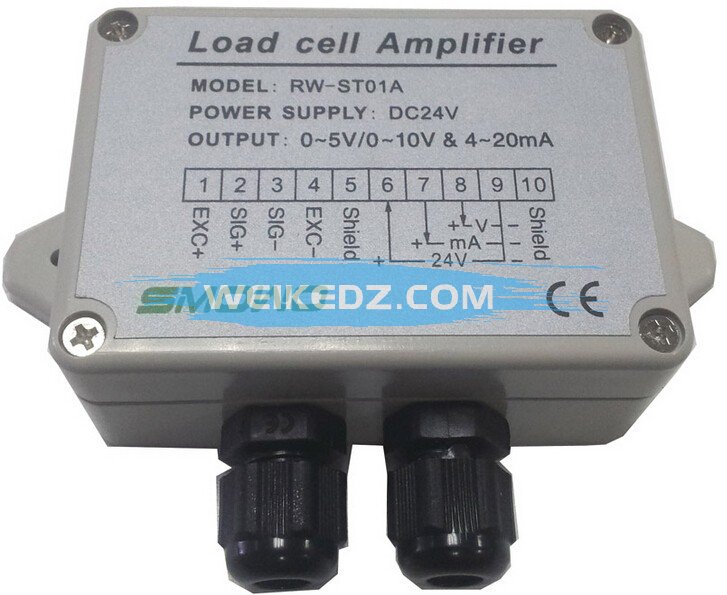

RW-ST01A load cell amplifier / 4 ~ 20mA Transmitter amplifier/0-5v 0-10V Strain Gauge Amplifier
RW-ST01A strain sensor amplifiers
Parameters:
Power supply: 24Vdc (18 ~ 27Vdc)
Maximum power: 4W (and pick four 350Ω sensor output at 20mA)
Connection: screw terminal
Weight: 100g
Dimensions: 115 × 58 × 33mm (length × width × height)
Operating temperature range: -10C ~ 50C
Storage temperature range: -20C ~ 80C
Humidity: <85% RH non-condensing
Sensor sensitivity adjustment range: 2.0mV / V ± 10%
Voltage zero adjustment range: Fine: 10% FS expansion: 40% FS
Full-scale voltage adjustment range: 10% F.S.
Current zero adjustment range: 10% F.S.
Current full-scale adjustment range: 10% F.S.
Accuracy: better than 0.3% F.S.
Drift: Better than 100ppm
Sensor excitation voltage 5Vdc (nominal excitation voltage is applied to 5 ~ 12V sensor)
Sensor excitation current <60mA
Signal output 0 ~ 5V or 0 ~ 10V and 4 ~ 20mA (non-standard signal output can be customized)
Voltage output impedance> 5kΩ
Current output impedance <500Ω
Note: 4-20ma, 0-5V, 0-10V
